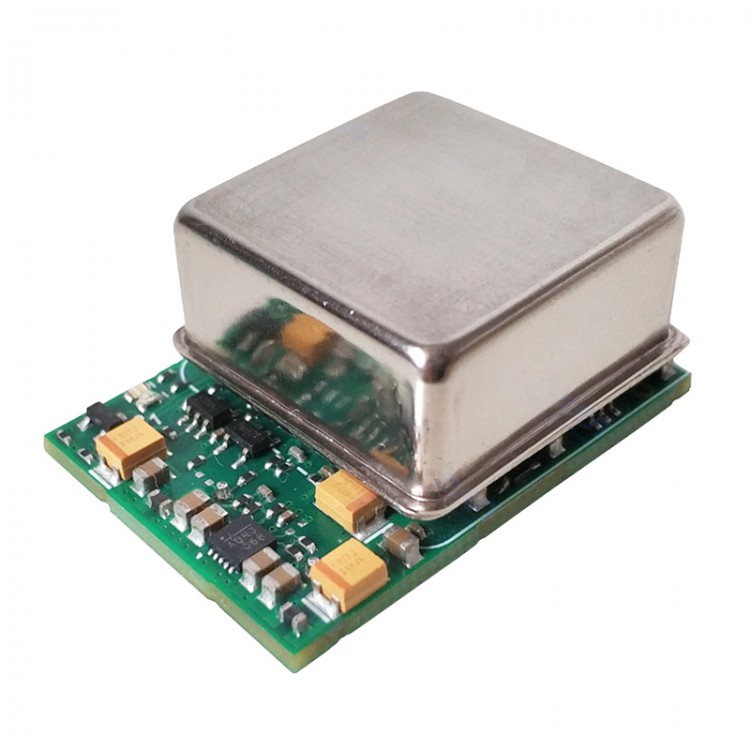

GPSDO Discipline Oscillator PPSDO Disciplined Clock 10MHz Output OCXO 1PPS Timing Pulse Input

Availability: Out Of Stock

  • Price:$157.53
  • Price in reward points: 1575 Reward Points: 16
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $154.38 $151.23 $146.50 $140.20 Contact US
Quantity:

GPSDO Discipline Oscillator PPSDO Disciplined Clock 10MHz Output OCXO 1PPS Timing Pulse Input

Frequency Stability (ADEV):

<5E-12@1s
<2E-11@10s-1,000s
<2E-12@10,000s

Phase Noise:
<-80dBc@1Hz
<-120dBc@10Hz
<-140dBc@100Hz
<-145dBc@1kHz
<-150dBc@10kHz

Features:
-10MHz SC cut OCXO
-The size is only 36*26*28 (L*W*H), the pin size is compatible with the European 3627 5Pin package
-Weight <20g
-1mm gold-plated pins, can be installed by socket or soldering
-Input: external 1PPS reference timing pulse
-Output: 10MHz, lock indication (1PPS optional)
-Fast and stable to E-9 (@25℃) after power on in 3 minutes
-Small size and high performance
-Optimized digital phase-locked loop algorithm and hardware circuit
-24-hour average frequency accuracy <1E-12
-3.0V~5.5V power supply, startup power consumption <4W, steady state power consumption <1.5W (@25℃, 5V)

Application:
-High-precision data synchronization system
-Software Defined Radio (SDR)
-UAV high precision synchronous data transmission
-Instruments, equipment or systems that require high-precision and high-stability clocks

Package List:
1 x Discipline Oscillator
