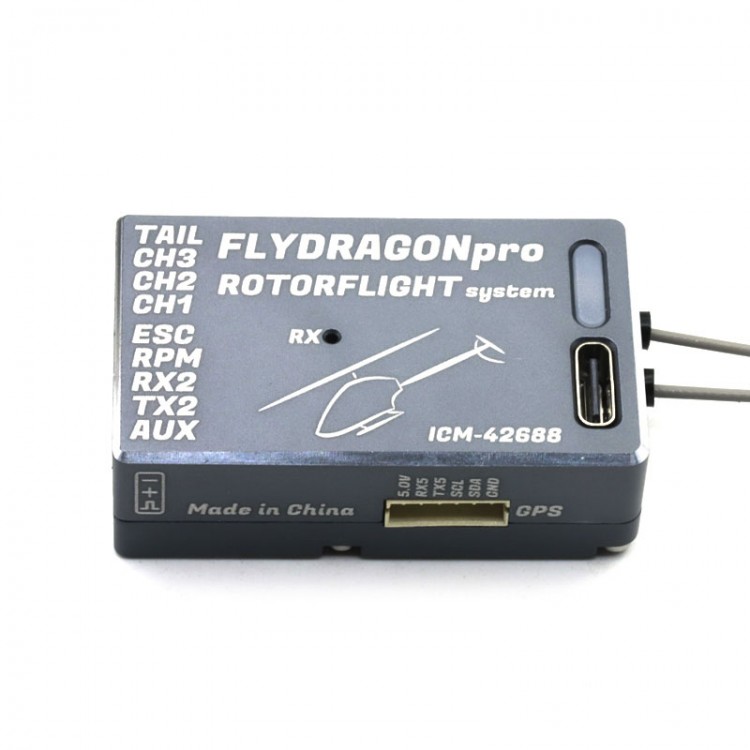

Grey ICM-42688-GY RF Gyroscope PRO Version FPV Racing Drone Accessory for Rotor Flight Helicopter

Grey ICM-42688-GY RF Gyroscope PRO Version FPV Racing Drone Accessory for Rotor Flight Helicopter

Factory Firmware Version:
- Main control: RF2 V2.1.1
- Receiver: V3.5.3

Specification:
- Flight mode: self stabilizing mode, semi self stabilizing mode, 3D mode, rescue mode
- Main control: STM32F722RET6
- Gyroscope: MPU-6000/ICM-42688-P
- Black box: W25N01G (128MB)
- Barometer: SPL06-001 (I2C2)
- Illumination: WS2812B
- Buzzer: 5V active buzzer
- USB: Type-C
- Serial port: UART2, UART3, UART5
- I2C: I2C1
- ADC: ADC_BATT (0-62V), ADC_BEC (0-30V), ADC_BUS (0-8V)
- Servo channel: CH1-CH2-CH3-TAIL
- Speed input: RPM
- Auxiliary channel: AUX
- Built-in receiver: ELRS dual antenna receiver 2.4G (serial port 1)
- External receiver: for TBS CRSF, Futaba S.BUS, Futaba S.BUS2, FrSky F.PORT, FrSky F.PORT2, FrSky FBUS, Spektrum DSM/1024, Spektrum DSM/2048, Spektrum DSMSRXL, Spektrum DSMSRXL2, ImmersionRC GHOST, Graupner SUMD, Graupner SUMH, Flysky IBUS, JR XBUS Mode A, JR XBUS Mode B, JR XBUSIRJ01, Jeti EXBUS, CPPM
- BEC voltage: 5 - 18V
- 5V power supply output: 5V/2A
- ESC protocol: for PWM, ONESHOT125, ONESHOT42, MULTISHOT, BRUSHED, DSHOT150, DSHOT300, DSHOT600, PROSHOT, CASTLE
- Support ESC feedback: for BLHeli32, Hobbywing Platinum V4 / FlyFun V5, Hobbywing Platinum V5, Scorpion, Kontronik, OMPHobby, ZTW, APD, OpenYGE, FLYROTOR, Graupner, XDFLY
- Product size: 45 x 27 x 14.5mm
- Net weight: 27g

Package Included:
- 1 x Gyroscope Module
