GWS Micro STO/J Servo Micro STD J Servo 1.8Kg 2.3KG

Availability: Out Of Stock

  • Price:$10.40
  • Price in reward points: 104 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $10.19 $9.98 $9.67 $9.26 Contact US
Quantity:

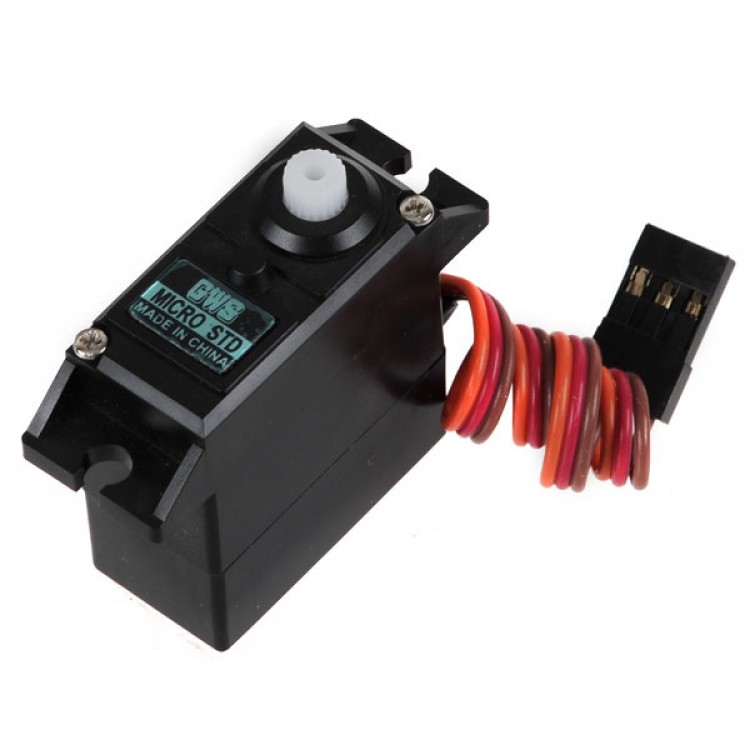

GWS Micro STO/J Servo Micro STD J Servo
Description:

- GWS Digital Servos are all programmable and with the most advanced ASIC (Application Specific IC) IC to process the input signals, all with the best response time, and best resolution in 12+ bits or 4096+ steps. They work faster, more smoothly, more accurately.
- These performance are much better than those another brands' digital servos which were with only MCU (micro controller) ones.
- Those MCU ones are with lower response time, and lower resolution (10 bits or 1024 steps).
Specfication:
- 4.8V 1.8kg/cm 0.16S/60 degree
- 6.0V 2.3kg/cm 0.13s/60 degree
- weight: 18g
- Size:L28*W24*H29.8



Model

STD

2BB

BBMG

Size ( L x W x H )

mm/in

Weight

4.8V

6V

Speed

(sec/60°)

Torque

Speed

(sec/60°)

Torque

g oz kg-cm oz-in kg-cm oz-in

MICRO



28x14x29.8

1.1x0.55x1.17

18

0.63 0.16 1.80 25 0.13 2.30 32

MICRO   L



17

0.59 0.13 1.50 21 0.10 1.80 25

MICRO MG



28

0.98 0.17 5.40 75 0.14 6.40 89



STD = Bushing+Build in plastic bushing with Top Case.    2BB= 2 Ball Bearings       MG= Metal Gear with Ball Bearings
