| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $48.96 | $47.96 | $46.46 | $44.46 | Contact US |
IP67 waterproof steering servo can be commonly applied to remote control
climbing cars, 1:10 RC boat, helicopter, robots, mechanical arms, and
other remote control toys.
Target group:
1. Those remote control toy enthusiasts who want to modify their RC toys.
2. University professors and students who are interested in robotics.
3. People who work in machinery or medical industry.
Features:
Made of high-precision aluminum and steel, it is durable. It's waterproof and can be immersed in water.
Composed of a brushless motor, its service life is 10 times longer than that of the coreless motor of the same grade.
It is used to change the torque, speed, and angle of RC toys, robots，mechanical arms, and other remote control toys.
Applying high-precision production technology to reduce production deviation and improve product tightness.
The maximum torque of this steering servo for the RC car is up to 45kg/cm and speed is up to 0.08sec/60°.
After-sales Service Guarantee: Any problem, please contact our store without hesitation. Honor to serve you!
Specifications:
Name:45kg Digital Servo
Model: GX3345BLS
Dead Band: 2μsec
Operating Voltage: 5V~8.4Volts
Operating Speed (5V): 0.12sec / 60° at no load
Operating Speed (8.4V): 0.08sec / 60° at no load
Stall Torque (5V): 35 kg/cm
Stall Torque (8.4V): 45kg/cm
Operating Angle: 180°
Motor Type: Brushless motor
Gear Type: Steel
Working Frequency: 50-330Hz
Size(excluded cable): 40*37*20mm/1.57*1.46*0.79inch
Suitable for: 1/10 1/8 RC car, RC boat, RC airplane, and RC helicopter
Servo Arm
Main Material: Metal
Color: Red
Quantity: 1pc
Teeth Number: 25T
Geared Hole Inner Diameter: 3mm/0.12in
Overall Size: 35 * 14 * 5mm/1.38 * 0.55 * 0.20in
Package information:
Package size: 77*60*33mm/3.03*2.36*1.30in
Package weight: 135g
plastic box package
Note:
* There could be a few deviations due to manual measurement or slight
color difference owing to photographing condition. Thank you for your
understanding.

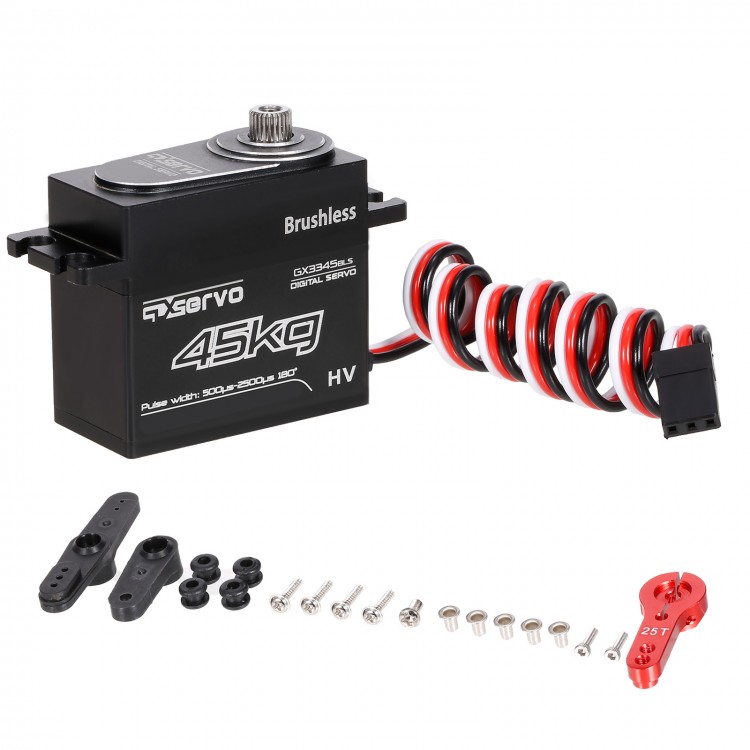

Package list:
1 * 45kg Digital Servo
1 * Metal Servo Arm
1 * Other Parts
