GY-US42 Ultrasonic Sensor Module I2C for Pixhawk APM Flight Control Replacement for MB1242 SRF02

Availability: In stock, usually dispatched in 1 business day

  • Price:$12.30
  • Price in reward points: 123 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $12.05 $11.81 $11.44 $10.95 Contact US
Quantity:

GY-US42 Ultrasonic Sensor Module I2C for Pixhawk APM Flight Control Replacement for MB1242 SRF02

Features:

- Premium ranging sensor module
- This ultrasonic sensor module for Pixhawk APM
- Plug and play with I2C interface
- Replacement for MB1242, MB1240 & SRF02

Website for Pixhawk APM Settings:

http://ardupilot.org/copter/docs/common-rangefinder-maxbotixi2c.html

Technical Parameters:

- Measuring Range: 20cm to 720cm (VCC=5V)
- Resolution: 1cm
- Response Frequency: 15Hz
- Working Voltage: 3-5V
- Operating Current: 9mA (VCC=5V)
- Operating Temperature: -20℃ to 65℃
- Storage Temperature: -40℃ to 85℃
- Dimensions: 21.5 x 21 x 24.5mm
- Weight: 5g

Package Included:

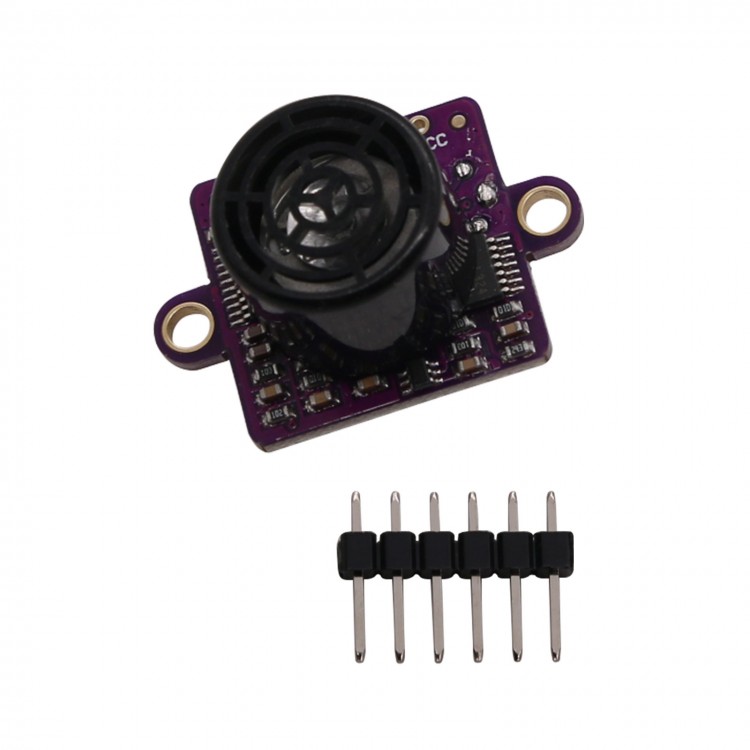

- 1 x Ultrasonic Sensor Module
- 6 x Pins Accessories

Note: Only ultrasonic distance measuring module is included in this package.
