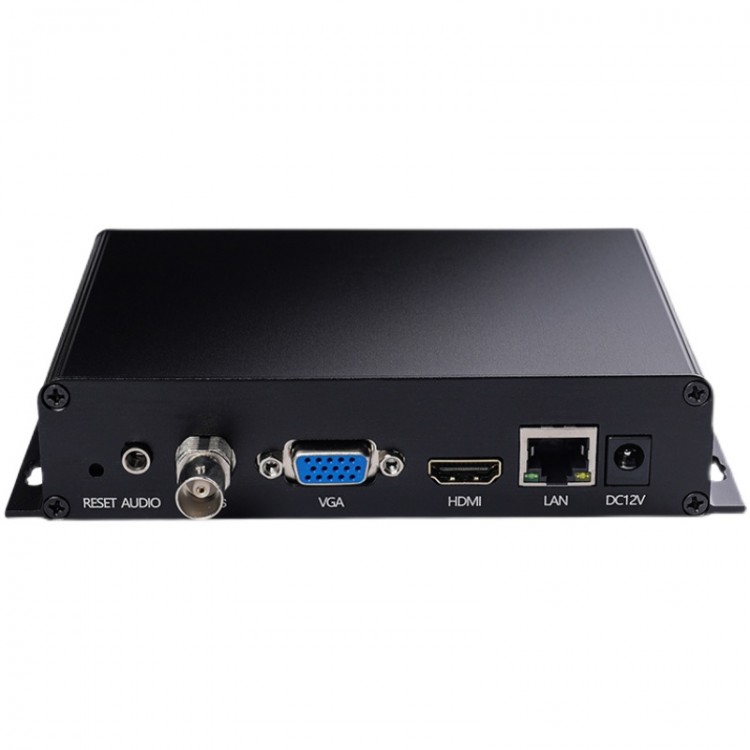

H.265 H.264 4K NDI Decoder Network Audio Video Decoder with Ultra Low Latency Outputs CVBS VGA HDMI

H.265 H.264 4K NDI Decoder Network Audio Video Decoder with Ultra Low Latency Outputs CVBS VGA HDMI

Features:
- H.2654K ultra low latency decoder
- Output CVBS/VGA/HDMI signal; decode SRT stream
- Decoder 4-way network stream. Four screens can be displayed and layout can be set
- Decode 4K30 frames; decode video format includes H.265/H.264
- Decode multiple protocols, including HTTP TS/HLS/FLV/RTSP/SRT/RTMP/RTMPS/UDP/RTP/PTE
- NDI official authorization: With NDI protocol, the device supports high-quality, low-latency, frame-accurate methods to ensure the high quality of the transmitted video. The decoder comes with HDMI to NDI protocol, and does not require users to purchase authorization
- Decode ONVIF protocol: It can decode all IP cameras of ONVIF protocol; compatible with 99% of network cameras on the market. Support IP cameras for Panasonic, Samsung, Sony, Hikvision, Dahua, YAAN, BOSCH, support network HD module for TOPSEE, XM and JUAN, and support other manufacturers' cameras and dome cameras with ONVIF network protocol
- Low latency: When used with an encoder, it enables low latency transmission delay 80-200ms
- Decode 4K30 frame source; output 3840*2160P30 quality image. With powerful decoder capabilities, it can decode 1 channel of 4K30 frame quality, and the decoded video format is H.265/H.264
- Display settings: support adding text, pictures, and scrolling text on the screen
- Screen layout: You can customize the layout through the background configuration page of the decoder
- Cropping function: You can set the coordinates to crop the decoded image
- Application scenarios: widely used in large-screen projection display engineering, electronic teaching, command and control centers, multimedia conference rooms, security centers, etc.

Supported layouts include:
- Channel 1/2/3/4 full screen
- Quad split screen
- Style 1 (three screens at the bottom)
- Style 2 (three screens on the left side)
- Style 3 (three screens on the top)
- Style 4 (three screens on the right)
- Customize screen coordinates

Product Parameters:
Media access
- Standard protocols: RTSP/HTTP TS/HTTP FLV/RTMP/UDP/SRT/HLS/RTMPS/RTP
- Proprietary protocol: HTTP PTE

Video decoding:
- Type: H.265/H.264
- Frame rate: 1-60
- Number of Roads: 1 to 4 channels
- Resolution: Maximum support 2160P at 30
- Bit rate (kbit): H.265/H.264

Audio decoding:
- Type: G711A/G711U/AAC+/AAC++/MP2/MP3
- Number of Roads: 1 Road
- Number of channels: single channel/dual channel
- Sampling rate Hz: 8000/11250/22500/44100/48000

Video output:
- HDMI: 2160P at 30/1440P at 30/1080P at 60/1080I at 60/1080P at 50/1080I at 50/1080P30/
1080P25/720P60/720P50/576P50/480P60
- VGA: 1080P at 60/1080I at 60/1080P at 50/1080I at 50/1080P30/1080P25/720P60/720P
50/576P50/480P60
- CVBS: PAL/NTSC
- Color: Brightness, Contrast, Hue, Saturation, Adjustable

Audio output
- HDMI: 48KHz dual channel output
- 3.5MM: dual channel output
- Enable: on/off

Universal
- Network: Gigabit
- Power supply: 12V/DC, 2A
- Power consumption: <5W
- Dimensions: 15.5 x 10.2 x 3.2cm/6.1 x 4 x 1.3"
- Weight: 315G/0.7LB
- Configuration management: configuration management through WEB
- Operating temperature: -20°C to 60°C
- Working humidity: <90%, no condensation

Package Included:
- 1 x NDI Decoder
