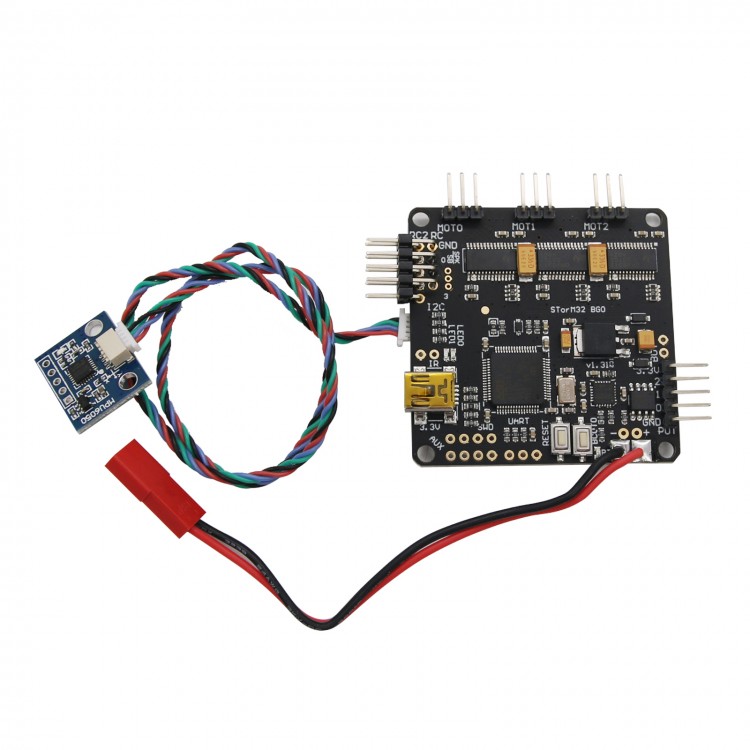

H3 Storm32BGC 32-Bit 3 Axis Gimbal Controller Brushless Gimbal Control Board Dual Gyroscope w/ Shell

H3 Storm32BGC 32-Bit 3 Axis Gimbal Controller Brushless Gimbal Control Board Dual Gyroscope w/ Shell

Description:
It is a new generation of 32-bit brushless gimbal control board, not the version for Alexmos.

Performance Parameters:
- Using STM32F103RC at 72 MHz processor, the processing speed is 10 times faster than 8-bit, the response is faster and more sensitive.
- It can be equipped with onboard bluetooth, and PID tuning can be carried out through a mobile phone. It is much more convenient for outdoor tuning!
- Onboard gyroscope and acceleration sensor (MPU6050), dual gyroscope, can achieve more actions.
- Infrared led interface, remote photo is more convenient.
- For Futaba S-Bus, supports bus receiver
- Support bus receiver: For Spektrum satellite port
- Up to 7 channels PWM/Sum-PPM input/output
- Each axis can be connected to support analog joystick, this function can be used for - SLR handheld gimbal
- There is an additional I2C port (I2C#2), you can use an external 6050 to replace the onboard sensor
- 3 aux interfaces
- Power supply voltage: 6-18 V or 2-4S
- Motor drive current: Maximum 2A per motor per phase
- Dimensions: 5 cm x 5 cm, diameter 3 mm screw holes, hole spacing 45 mm
- Weight: 13 g

Package Included:
- 1 x Set of 3 Axis Gimbal Controller Board
