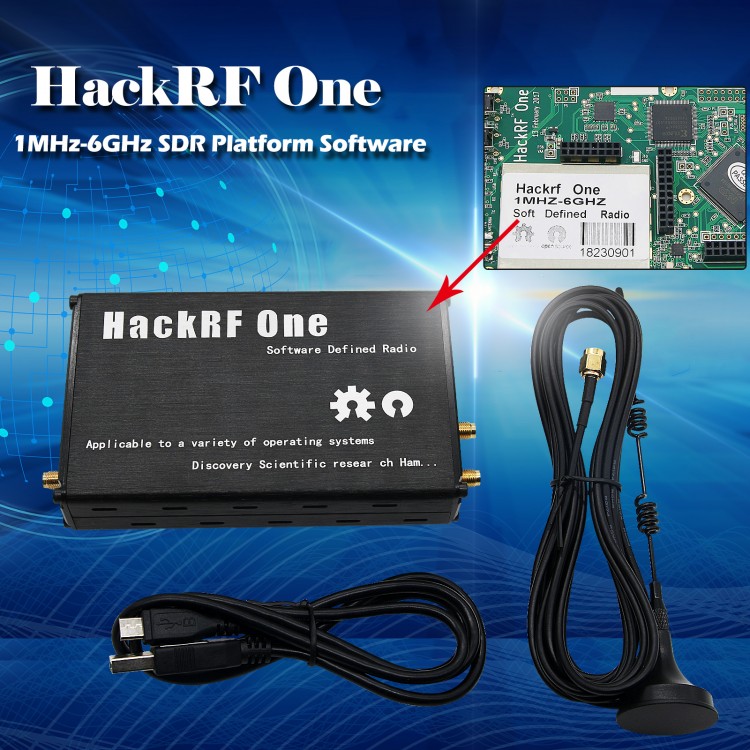

HackRF One 1MHz-6GHz SDR Platform Software Defined Radio Development Board Black Shell

Availability: Out Of Stock

  • Price:$123.98
  • Price in reward points: 1240 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $121.50 $119.02 $115.30 $110.34 Contact US
Quantity:

HackRF One 1MHz-6GHz SDR Platform Software Defined Radio Development Board Black Shell

Product Features:

- HackRF One from Great Scott Gadgets is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz.
- Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

Specifications:

- 1 MHz to 6 GHz operating frequency
- Half-duplex transceiver
- Up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- Compatible with GNU Radio, SDR#, and more
- Software-configurable RX and TX gain and baseband filter
- Software-controlled antenna port power (50 mA at 3.3 V)
- SMA female antenna connector
- SMA female clock input and output for synchronization
- Convenient buttons for programming
- Internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- Open source hardware
- HackRF One 1 MHz to 6 GHz SDR Platform Software Defined Radio Development Board
- Include black metal shell and antenna
- G.W.: 0.55 kg

Package List:
- 1 x HACKRF One Main Board Black Shell
- 1 x Black Antenna
