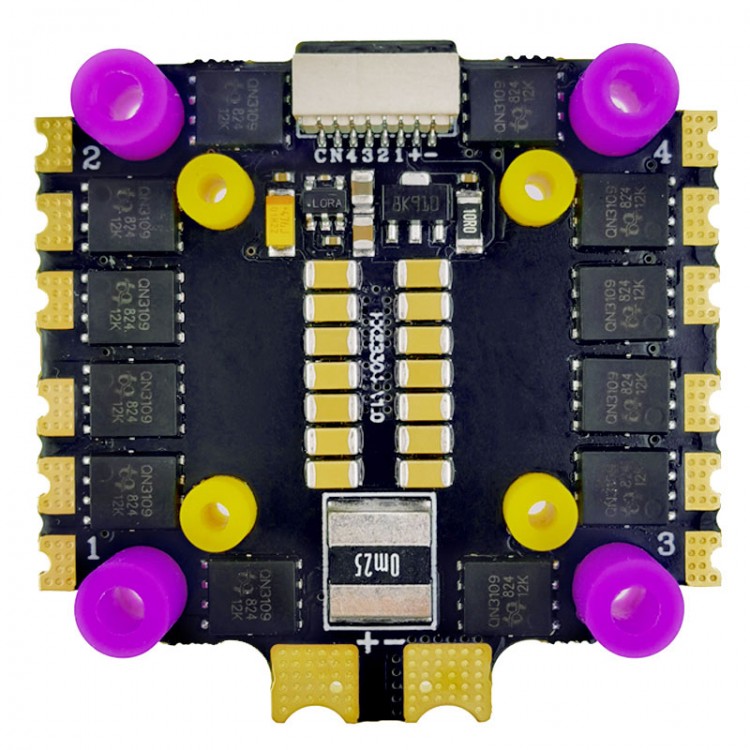

HAKRC BLS 45A Drone ESC 4 In 1 ESC 2-6S 0.8x0.8" And 1.2x1.2" Hole Spacing Accessories For FPV Drones

Availability: In stock, usually dispatched in 1 business day

  • Price:$37.91
  • Price in reward points: 379 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $37.15 $36.39 $35.26 $33.74 Contact US
Quantity:

HAKRC BLS 45A Drone ESC 4 In 1 ESC 2-6S 0.8x0.8" And 1.2x1.2" Hole Spacing Accessories For FPV Drones

Features:

- Quality Hardware: EMF8BB21F16G main control chip boasts operating frequency up to 48MHz. It adopts imported mosfet, three-in-one IC driver and imported high-frequency ceramic capacitors. In high-end PCB production process, pads are all covered with metallization to prevent them from falling off during use. Three ounces of copper thickness and six-layered board greatly reducing heat generation and higher efficiency
- Highly Integrated and Compact Size: It integrates 4pcs high-performance 45A ESCs, a built-in galvanometer, and dual hole spacing for installation. After such a high degree of integration, the volume is only the same size as flight controller of FPV drones, enabling easy installation and wiring. Such unbelievable size and volume are tailor-made for competition-level FPV airplanes
- Native support for BLHeli-S: The firmware ensures stable performance and rich functions. And it supports multiple ways to set the ESC parameters, or upgrade the ESC firmware (such as through a throttle signal cable, other development boards, or flight controller with firmware for cleanflight or betaflight to set or upgrade the ESC)
- Hardware PWM, Damped Light: Hardware PWM drive motor, low noise, smoother throttle response. Damped Light technology and regenerative braking function make motor deceleration more sensitive and effective, and control more precise
- DShot150/300/ 600 Ready: It not only supports for ordinary PWM throttle signal mode, Oneshot125, Oneshot42 and Multshot ultra-high speed throttle signal, but also supports for the current DShot150/300/600 digital throttle, with strong anti-interference ability and rapid response. The input and output cables use soft silicone cables, which are very durable, resistant to high temperatures and convenient for soldering

Specifications:
- Working voltage: 2-6S
- Maximum continuous working current: 45A
- Maximum instantaneous working current: 50A
- Support communication mode: for DShot150/300/600 PWM Oneshot125, Oneshot42 and Multshot
- Parameter adjustment: support
- Firmware version: BL16.7
- Mounting hole distance: 20 x 20mm/0.8 x 0.8" and 30.5 x 30.5mm/1.2 x 1.2"
- Product size: 44 x 44 x 5.5mm/1.7 x 1.7 x 0.2"
- N.W.: 13.6g/0.03 lb

Package Included:

- 1 x Set of ESC

Note:
- Battery is not included in the package.
