| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $89.67 | $87.84 | $85.10 | $81.44 | Contact US |
HAMGEEK HackRF One R10C V2.0.x 1MHz-6GHz Software Defined Radio Mainboard MAX2837 with Antenna
Advantages:
* It uses the MAX2837 chip
* With a type-c port
Attention:
1. The latest firmware is supported, and the current firmware is Mayhem firmware V2.0.2 by default.
2. For certain functionality, like the world map, GPS simulator, and others, you need to prepare a PortaPack H4M and a FAT32 formatted MicroSD card over 1G.
Description:
HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1MHz to 6GHz.
Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.
It is designed with a type-c port.
Specifications:
* 1MHz to 6GHz operating frequency
* Half-duplex transceiver
* Up to 20 million samples per second
* 8-bit quadrature samples (8-bit I and 8-bit Q)
* For GNU Radio, SDR#, and the like
* Software-configurable RX and TX gain and baseband filter
* Software-controlled antenna port power (50mA at 3.3V)
* SMA female antenna connector
* SMA female clock input and output for synchronization
* Convenient buttons for programming
* Internal pin headers for expansion
* Hi-Speed USB 2.0
* USB-powered
* Open source hardware
* HackRF One 1MHz to 6GHz SDR platform software defined radio development board

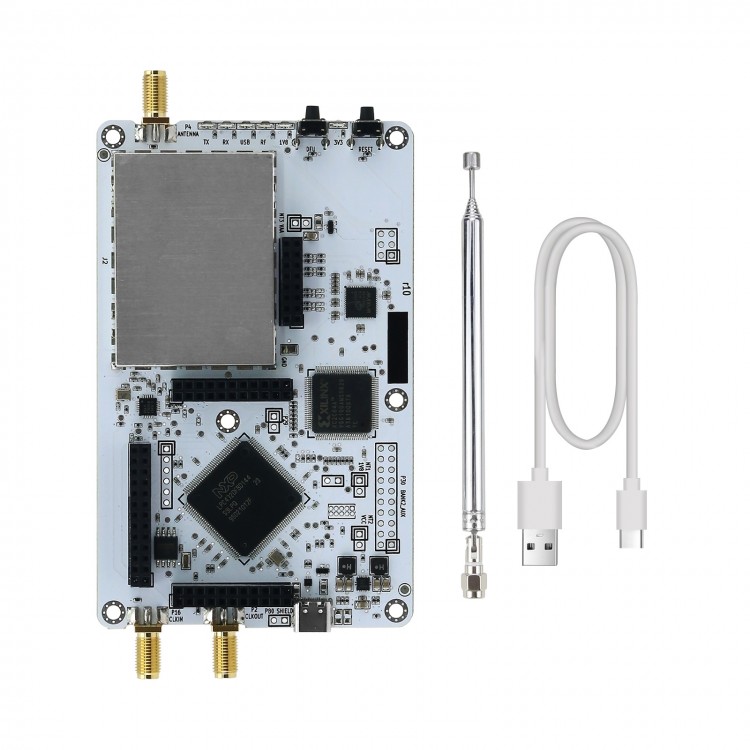

Packing List:
* 1 x HAMGEEK HackRF One R10C
* 1 x Type-C Cable
* 1 x 40MHz-6GHz Telescopic Antenna
Packaging Details:
* Weight: 0.3kg
