HamGeek R10C + H2M HackRF One R10C V2.0.x SDR Radio MAX2837 and H2M Portapack (with 1 Antenna)

HamGeek R10C + H2M HackRF One R10C V2.0.x SDR Radio MAX2837 and H2M Portapack (with 1 Antenna)

Advantages:
* It is a signature edition
* It uses the MAX2837 chip
* With a type-c port

Attention:
1. The latest firmware is supported, and the current firmware is Mayhem firmware V2.0.2 by default.
2. For certain functionality, like the world map, GPS simulator, and others, you need to prepare a PortaPack H2M and a FAT32 formatted MicroSD card over 1G.

HackRF One R10C Description:
* HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz.
* Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.
* It is designed with a type-c port.

Specifications of HackRF One:
* 1 MHz to 6 GHz operating frequency
* Half-duplex transceiver
* Up to 20 million samples per second
* 8-bit quadrature samples (8-bit I and 8-bit Q)
* For GNU Radio, SDR#, and the like
* Software-configurable RX and TX gain and baseband filter
* Software-controlled antenna port power (50 mA at 3.3 V)
* SMA female antenna connector
* SMA female clock input and output for synchronization
* Convenient buttons for programming
* Internal pin headers for expansion
* Hi-Speed USB 2.0
* USB-powered
* Open source hardware
* HackRF One 1 MHz to 6 GHz SDR platform software defined radio development board

Improvements of H2M:
* Single power on/off switch: When powered off, the battery will no longer phantom drain, meaning the device can be completely powered off.
* Advanced battery management IC
* Matte screen: This matte screen helps you see the content of the screen more clearly in sunny outdoor environments.
* GPIO port: The new generation H2M adds a GPIO port, allowing users to create their own add-ons for the H2M, similar to the Flipper Zero. This is a major step forward and a feature not available in previous versions of Portapack.
* Improved charging speeds: The H2M improves both the charging quality and speed.
* Microphone on/off switch: It allows you to turn the microphone on or off.
* Automatic sound switching between headphones and speakers: When you plug in the headphones, the H2M will automatically switch from speaker mode to headset mode. This is a feature not available in previous versions of Portapack.

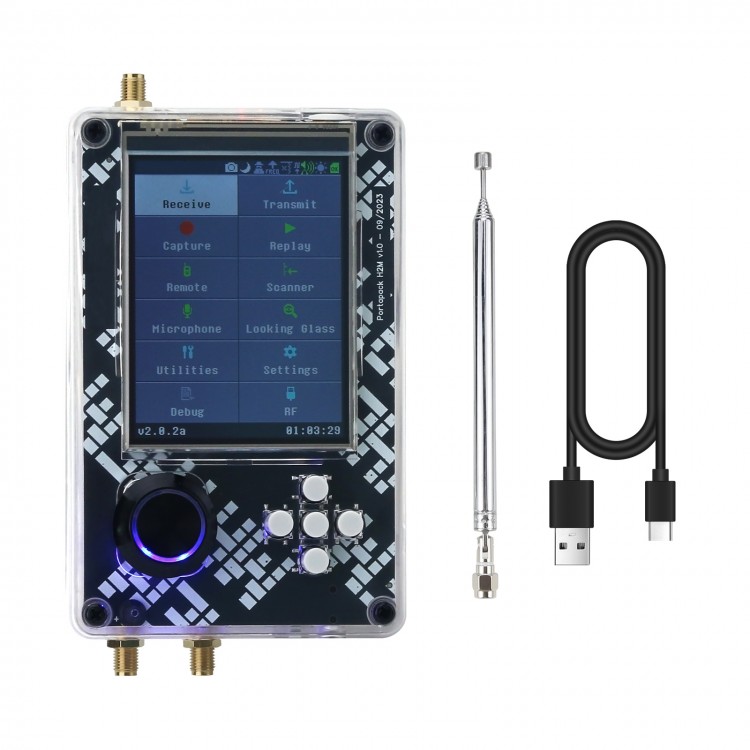

Packing List:
* 1 x HamGeek R10C + H2M (Assembled)
* 1 x Type-C Cable
* 1 x 40MHz-6GHz Telescopic Antenna

Packaging Details:
* Weight: 0.6kg

Note:
* The product has been assembled.
* Battery is included.
* The H2M needs to be turned on in order to charge.
