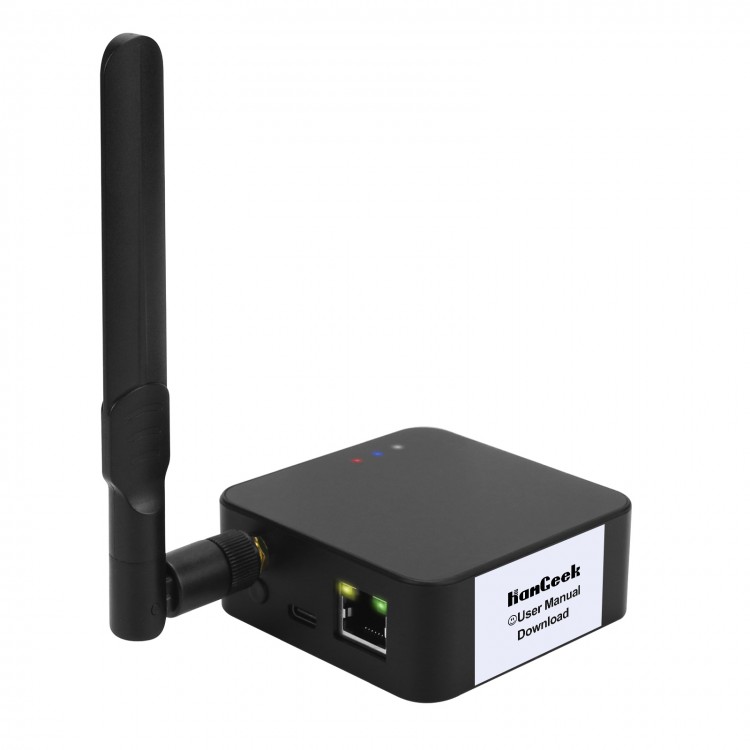

HamGeek HMG-01 Plus POE Black Universal ZigBee Gateway ZigBee Coordinator without USB Data Cable

HamGeek HMG-01 Plus POE Black Universal ZigBee Gateway ZigBee Coordinator without USB Data Cable

Description:
- Power the HamGeek HMG-01 Plus using USB-C Type or PoE 802.3af
- Zigbee over LAN, USB and WiFi is supported
- Main chips used are ESP32, LAN8720 and CH340C
- CC2652P2 for TI with +20db amplifier incorporated. NEW CC2652P7 is used in hardware revision v0.2+
- CC2652P7 for TI is used in all new hardware starting from v0.2+. Support of up to 300 Zigbee Devices
- It supports both Coordinator and Router modes
- 3 LEDs on HamGeek HMG-01 Plus enable user feedback and alerts. BLUE: Power Indication. RED: Working Mode USB/LABLUE. YELLOW: Z2M Connection
- DIY Pinouts are available
- Change working modes with just a button press. Single Press: Change between USB/LAN Mode. Hold (2-4 sec): Control LED's ON/OFF. Hold (4-8 sec): Activate Flashing Mode. Hold (10+ sec) on power up will RESET device
- Update ESP32 & CC2652P firmware over LAN/Internet/USB
- Security authentification
- Open Source Firmware
- Compact shape: 73x72x27mm
- Plug & Play, comes pre-flashed

Getting Started:
HamGeek HMG-01 Plus is functioning as a Zigbee adapter, facilitating the transmission of Zigbee packets over Ethernet, WiFi, or Serial (USB) connections. The Zigbee adapter permits the integration of devices from various manufacturers (such as for Tuya, IKEA, Xiaomi, Gledopto, Moes, Sonoff, and others) into a unified system. To effectively utilize the HMG-01 Plus, it is essential to possess both a Home Assistant instance and ZigBee2Mqtt.

Package Included:
- 1 x HMG-01 Plus Zigbee Ethernet POE USB WiFi Adapter
- 1 x 3dB Antenna



Powering the device:
- The device can be powered either via Power over Ethernet (PoE) using an Ethernet cable or through a Type-C plug.
- Tip: HMG-01 Plus has optoelectronic isolation, so can be connected to USB port of your PC and at the same time to Ethernet/PoE cable!



Installation:
You can use HMG-01 Plus either as Zigbee to Ethernet adapter or as Zigbee to USB adapter. Depending on the type you are going to use, you can connect you device.

Configuration:
The HMG-01 Plus adapter can be configured either via a physical button or via the web interface.

Configuring with Web-interface:
- To configure the operation via the web interface, connect the device to your LAN network and enter the IP address of the device in the browser of your laptop or phone.
- Tip: HMG-01 Plus adapter supports mDNS. If you do not know the adapter's IP address - just go to the address HMG-01 Plus.local in your browser (will work if your router supports mDNS)

Main parameters of the web interface:
· "Status" - the current status of the device; no settings are available.


· "General" - Setting the device operation mode, LED operation mode, disable LED.


· "Ethernet" - Ethernet settings (DHCP, IP address, etc.)
· "WiFi" - Setting up access via WiFi.
· "Z2M & ZHA" - Setting up access via Serial interface, configuration generator.


· "Security" - Setting security parameters, such as login, disabling the web interface, IP whitelist.


· "System & Tools - General system features such as over-the-air updates, rebooting ESP32 and CC2652P, hostname.

· "About" - Here you can open ticket,get access to manual, last firmware, open an issue on Github.

Configuring with Button:
Using the physical button, the following settings are possible:
1. Operating mode: Change from Zigbee-to-Ethernet to Zigbee-to-USB and vice versa with short press of the button.
2. LEDs Behavior: Long press (2-4 sec) - turns off the LEDs, another long press(2-4 sec) - switches the LEDs to the default operating mode.
3. Enabling Flashing Mode: Long press(4-10 sec) will enable Flashing mode, this should be used in USB mode for fast flashing.

Tip: Button controls LED with rebooting. You can toggle LEDs without rebooting via web-interface (see System and Tools)

Reset to factory defaults:
Follow next procedure:
1. Switch off HMG-01 Plus
2. Hold Button pressed during power up for 10+ seconds
3. You device is reset to factory defaults
