HamGeek HW200 5.8G HDMI Transmitter Receiver 200M/656FT Wireless HDMI Extender for Camera TV PC
Description:
The wireless transmission transmits high-definition audio and video signals through 5.8G wireless signals, which can adapt to a variety of complex application environments. The device has excellent image processing and transmission capabilities, making the signal transmission more smooth and stable. It is a reliable, high-performance and efficient HDMI-Compatible signal extension mode.
Features:
1. Transmitter HDMI-Compatible video and audio signals over 5.8G wireless up to 200m (656ft)
2. Support video resolution up to 1920*1080P a 60Hz
3. Supports one TX and one RX; support one TX and four RX at most
4. The special format H.264 is used to compress and decompress the video, improve the transmission efficiency and make the playback more smooth
5. Compliance with HDMI-Compatible V1.3 and HDCP-Compatible 1.2 standard
6. High compatibility, can auto-match source and display device
7. Built-in ESD protection system
8. Simple to install; plug and play
Application:
- Usable environment: flat open areas such as offices on the same floor; signals can go through 1 to 3 walls.
- The devices can not be used upstairs and downstairs at the same time, because the wireless display is a plane transmission, and its signal cannot be transmitted up and down.
Installation Process:
1.Connect the HDMI-Compatible signal source to the HDMI-Compatible-IN port of transmitter
2. Connect the HDMI-Compatible-OUT port of receiver to the display device (such as HD TV, projector, etc.)
3. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver
Specifications:
- Video Standards: HDMI-Compatible V1.3 and HDCP-Compatible 1.2
- Compression format: H.264
- Maximum pixel clock: 165MHz
- Maximum data rate:6.75Gbps
- Resolution: 1920x1080P at 60Hz
- Connector: HDMI-Compatible-A
- Impedance: 100Ω
- Transmission delay: 0.8 seconds
- Recommended max HDMI-Compatible cable Input/Output distance: ＜5m/16.4ft, when 1920*1080P at 60Hz
- WIFI RF power: 21dbm
- Wireless standard:802.11a, 802.11n, and 802.11ac
- Signal direction: unidirectional
- Frequency: 5150~5250MHz and 5475~5850MHz
- Transmission distance: 200m/656ft in open environment
- Modulation mode: For OFDM
- Bandwidth: 20MHz

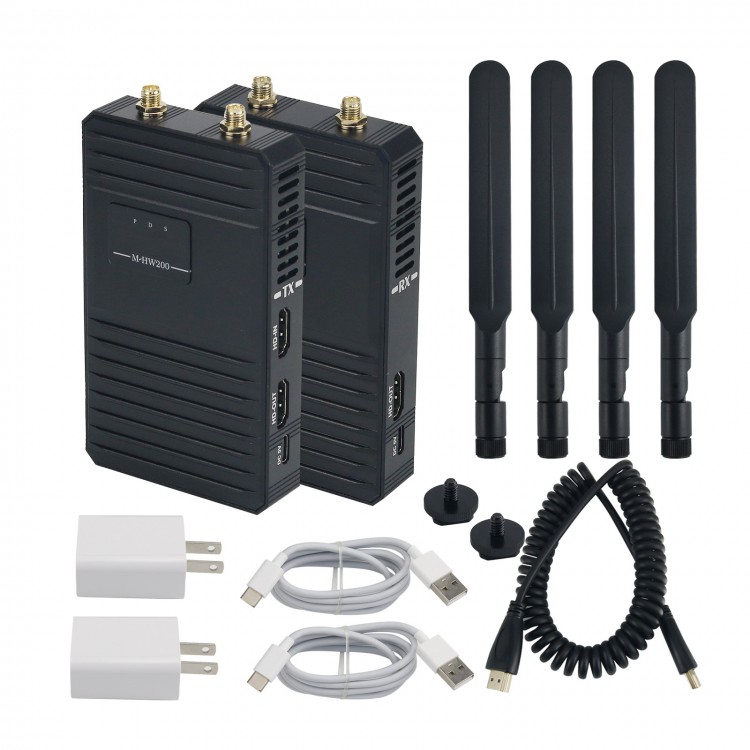

Package Included:
- 1 x Transmitter
- 1 x Receiver
- 4 x Antennas
- 2 x Power Adapters
- 1 x Cable
- 1 x User Manual
Note:
- One transmitter can be used with multiple receivers, which requires customization. If it is in need, please contact us, because the frequency of the transmitter and that of the receivers must be the same. Thank you!
