LILLIPUT 665OPWH 7" Wireless Monitor wth HDMI Output for DSLR Camcorder Camera

LILLIPUT 665OPWH 7" Wireless Monitor wth HDMI Output for DSLR Camcorder Camera

Description:

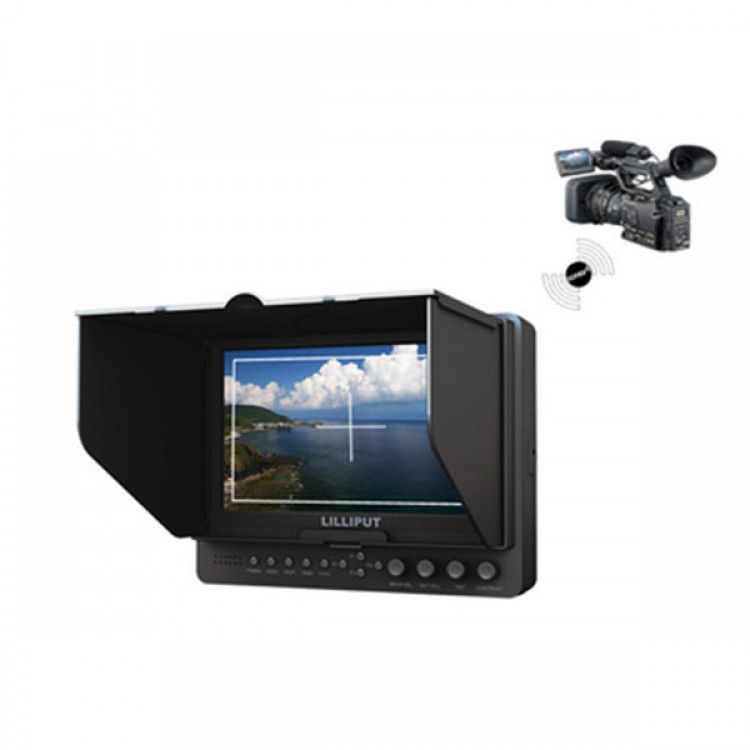

The 665/P/WH is a 7" wireless HDMI Monitor with WHDI, HDMI, YPbPr, component video, peaking functions, focus assistance and sun hood. Optimised for for DSLR & Full HD Camcorder.

Note: 665/O/P/WH (with advanced functions, wireless HDMI input & HDMI output)

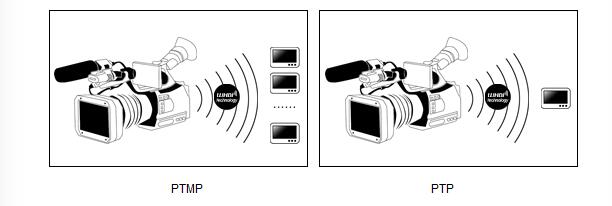

PTP & PTMP Transmission:
- PTP: Point-to-point (standard),
- PTMP: Point-to-multipoint (optional)
- One transmitter can work with one receiver or multi-receivers.

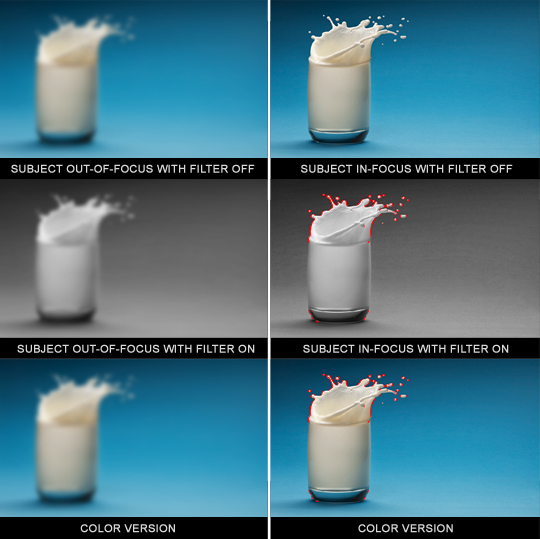

Peaking Filter:  This feature is most effective when the subject is properly exposed and contains enough contrast to be processed.

FALSE COLORS FILTER:
- The False Color filter is used to aid in the setting of camera exposure, which enables proper exposure to be achieved without the use of costly, complicated external test equipment.
- OVEREXPOSED: Overexposed objects will display as RED;
- PROPERLY EXPOSED: Properly exposed objects will display elements of GREEN and PINK;
- UNDEREXPOSED: Underexposed objects show as DEEP-BLUE to DARK-BLUE.

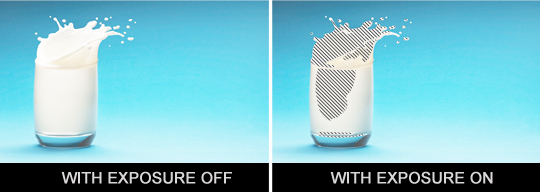

EXPOSURE (ZEBRAS):  The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern.

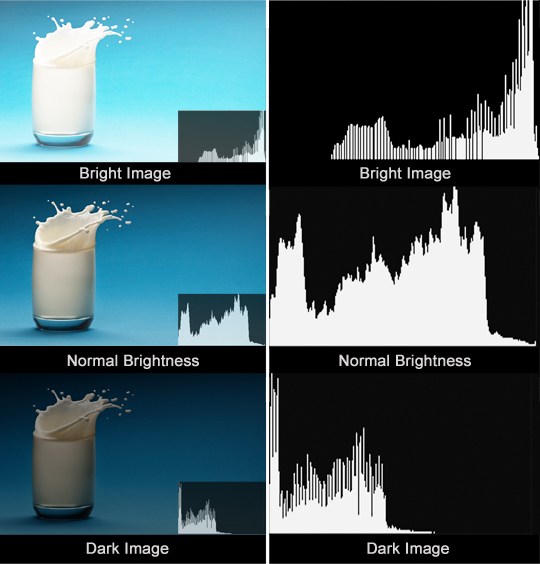

BRIGHTNESS HISTOGRAM:
The Brightness Histogram is a quantitative tool to check the picture brightness. This feature shows the distribution of brightness in an image as a graph of brightness along the horizontal axis (Left: Dark; Right: Bright) and a stack of the number of pixels at each level of brightness along the vertical axis.

Package Contents:
- 1 x Monitor
- 1 x MonitorWHDI transmitter
- 1 x Battery Plate
- 1 x Battery plate bracket
- 1 x 7" sun shade
- 1 x HDMI A/C cable
- 1 x 12V DC adapter
- 1 x Manual
