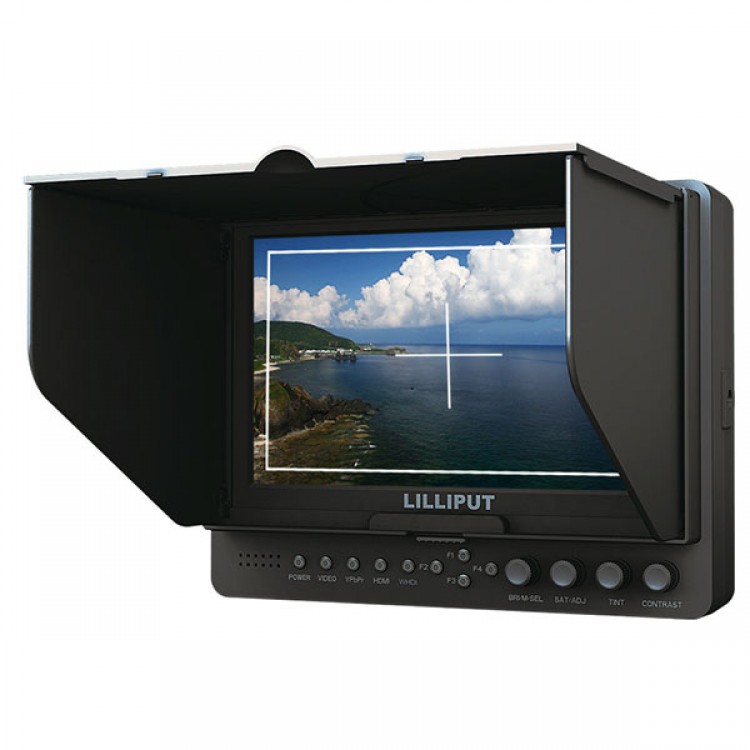

LILLIPUT 665/O/P/WH 7" Wireless HDMI Field Monitor with Advanced & HDMI Output for Full HD Product

Availability: In stock, usually dispatched in 1 business day

  • Price:$799.00
  • Price in reward points: 7990 Reward Points: 80
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $783.02 $767.04 $743.07 $711.11 Contact US
Quantity:

LILLIPUT 665/O/P/WH 7" Wireless HDMI Field Monitor with Advanced & HDMI Output for Full HD Product

Description:

- Camera HDMI Monitor with WHDI Tech
- MODE: LLILLIPUT 665/O/P/WH
- ABSTRACT: 7 inch Wireless HDMI Field Monitor with Advanced & HDMI output, for Full HD Camera

FUNCTIONS
- 665/O/P/WH (with advanced functions, wireless HDMI input & HDMI output)
- The 665/P/O/WH is a 7" wireless HDMI Monitor with WHDI, HDMI, YPbPr, component video input & output, peaking functions, focus assistance and sun hood. Optimised for for DSLR & Full HD Camcorder.
- PTP & PTMP Transmission:
- PTP: Point-to-point (standard),
- PTMP: Point-to-multipoint (optional)
- One transmitter can work with one receiver or multi-receivers.

Peaking Filter:
- This feature is most effective when the subject is properly exposed and contains enough contrast to be processed.

FALSE COLORS FILTER:
- The False Color filter is used to aid in the setting of camera exposure, which enables proper exposure to be achieved without the use of costly, complicated external test equipment.
- OVEREXPOSED: Overexposed objects will display as RED;
- PROPERLY EXPOSED: Properly exposed objects will display elements of GREEN and PINK;
- UNDEREXPOSED: Underexposed objects show as DEEP-BLUE to DARK-BLUE.

EXPOSURE (ZEBRAS):
- The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern.

BRIGHTNESS HISTOGRAM:
- The Brightness Histogram is a quantitative tool to check the picture brightness. This feature shows the distribution of brightness in an image as a graph of brightness along the horizontal axis (Left: Dark; Right: Bright) and a stack of the number of pixels at each level of brightness along the vertical axis.

ACCESSORIES
- WHDI transmitter                       1piece
- USB cable                             1piece
- Flexible Folding Sun Shade Cover          1piece
- Battery plate bracket                    1piece
- Battery Plate (DU21/QM91D/F970)         1piece
- DC adapter                             1piece
- HDMI A/C Cable                        1piece
- Manual                                1copy


SPECIFICATION

Panel Size

7” LED backlit

Physical Resolution

1024*600, support 1920*1080

Ratio Aspect

16:9

Contrast

800:1

Brightness

250cd/m²

Viewing Angle

160°/150° (H/V)

Input Signal

WHDI, HDMI, YPbPr, AV

Output Signal

HDMI, Video

WHDI(wireless HDMI)

1080p 60/50/30/25/24Hz
1080i 60/50Hz, 720p 60/50Hz
576p 50Hz, 576i 50Hz
480p 60Hz, 486i 60Hz

HDMI

1080p 60/59.94/50/30/29.97/25/24/23.98/23.976Hz
1080i 60/59.94/50Hz, 1035i 60/59.94Hz
720p 60/59.94/50/30/29.97/25Hz
576i 50Hz, 486i 60/59.94Hz, 480p 59.94Hz

Current:

800mA

Input Voltage

DC 6.5-24V (XLR)

Battery Plate

V-mount/Anton Bauer mount/F970/QM91D/DU21/LP-E6

Power Consumption

≤10W

Working Temperature

-20°C~60°C

Storage Temperature

-30°C~70°C

Dimension (LWH)

195*150*39mm

194.5*150*48.5mm (with cover closed)

Weight

580g
