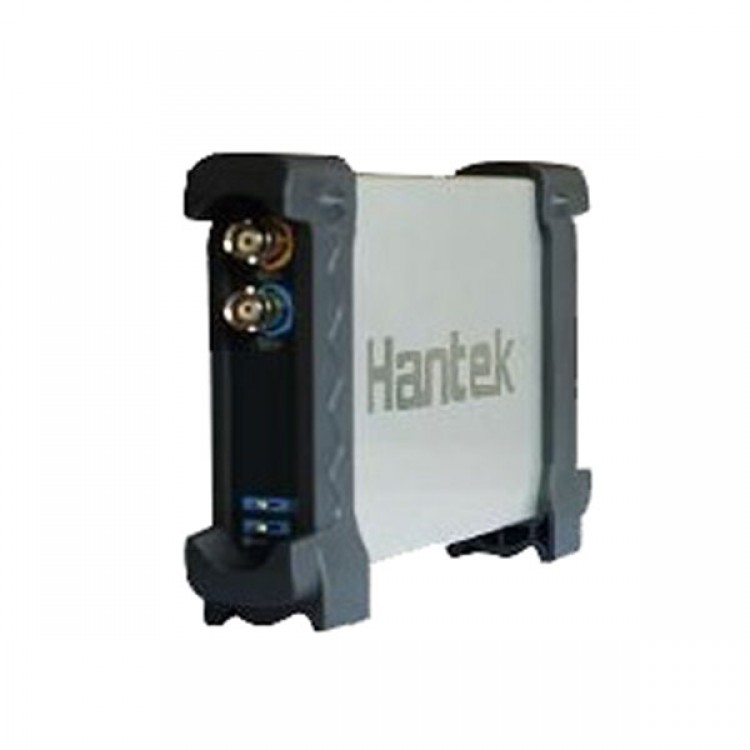

Hantek 6022BE 20MHz 2CH 48MSa/s USB Digital Strong Oscilloscope

Hantek 6022BE 20MHz 2CH 48MSa/s USB Digital Strong Oscilloscope

Characteristics:
- Cost-effectiveness; Excellent industrial design-the same anodized aluminum casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
- Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
- USB2.0 interface, no external power source required, easy to use.
- Be suitable for notebook computer, product line maintenance, be used easily on business.
- Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
- High performance, 48MS/s real-time sampling, 20MHz Bandwidth,
- Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA.
- 23 measurement functions, PASS/FAIL Check, be suitable for technical application>
- Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
- Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
- FFT
- One computer can connect many DSO, extend channel easily.
- Labview\VB\VC\Delphi\C++Builder Second Design instance.

Specifications:
- Channel    2 Channels
- Bandwidth        20MHz
- Input Impedence        1MΩ 25pF
- Max. Sample rate        48MS/s
- Vertical resolution        8Bit
- Gain range        20mV-5V, 8 Steps
- DC accuracy        ±3%
- Timebase range        1ns-9000s, 39 Steps
- Vertical adjustable                          Yes
- Input protection        Diode clamping
- X-Y        Yes
- Trigger Mode        Auto, Normal and Single
- Trigger Slope        +/-
- Trigger level adjustable    Yes
- Trigger Type        Rising edge, falling edge
- Trigger Source        CH1, CH2
- Pre/Post trigger        0-100%
- Sampling selection        Yes
- Waveform Display    port/line, waveform average, persistence, intensity
- Network        Open/Close
- Vertical mode        CH1, CH2, Dual, ADD
- Cursor measurement        Yes
- Math    FFT, addition, subtraction, multiplication, division.
- Cursor        Frequency, Voltage
- Operating system        Windows 7, Windows NT, Windows 2000,Windows XP, VISTA
- Supply DEMO code        (VC,CVI,VB,LABVIEW) and technical support.   |

Package Contents:
- 1 * 6022BE oscilloscope
- 2 * oscilloscope probe
- 1 * USB cable
- 1 * CD (manual etc.)
