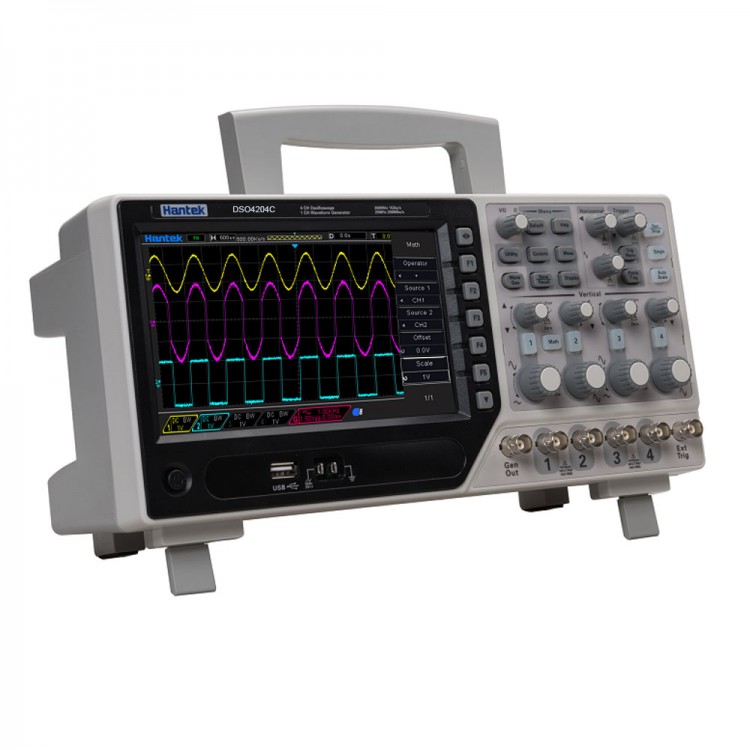

Hantek DSO4204C 4CH Digital Oscilloscope 64K 200MHz Bandwidth 1GS/s Sample Rate Range

Tags: DSO4204C Digital Oscilloscope

Availability: In stock, usually dispatched in 1 business day

  • Price:$516.61
  • Price in reward points: 5166 Reward Points: 52
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $506.28 $495.95 $480.45 $459.78 Contact US
Quantity:

Hantek DSO4204C 4CH Digital Oscilloscope 64K 200MHz Bandwidth 1GS/s Sample Rate Range


























DSO4004C Series Description:

- 4CH oscilloscope,with 1CH Arbitary/function waveform generator,independent keys of oscilloscope and waveform generator which is easy to operate at the same time.
- 80-250MHz bandwidth,minimum measurement range 500μV /div,1GS/s sample rate,advanced digital trigger system,high trigger sensitivity,low trigger jitter,high resolution 7 inch 64K color TFT (800*480)

Feature:

- 4CH oscilloscope+EXT+DVM+auto range function
- 80-250MHz bandwidth,minimum range 500μV /div,1GS/s sample rate.
- Over 32 types of auto measurement function
- Advanced digital trigger system, high trigger sensitivity.
- Over 14 types of trigger function:edge,overtime,pulse,pattern,interval,etc.
- Function/arbitrary signal generator25MHz,12BitS resolution,200MHz DDS,ARB/square wave/sine wave/triangular wave/trapezoidal wave/impulse wave/DC etc.,easy to simulate the sensor.
- Integrated USB Host/Device,convenient to communicate with PC.Support U-stick storage/systerm update.
- Support a variety of SCPI remote control command
- Support optional RS232 port,LAN port,HDMI port,touch screen,WIFI communication,SD card storage
- Stable and reliable quality, sturdy and durable.

Package List:
- 1 x DSO4204C Digital Oscilloscope
