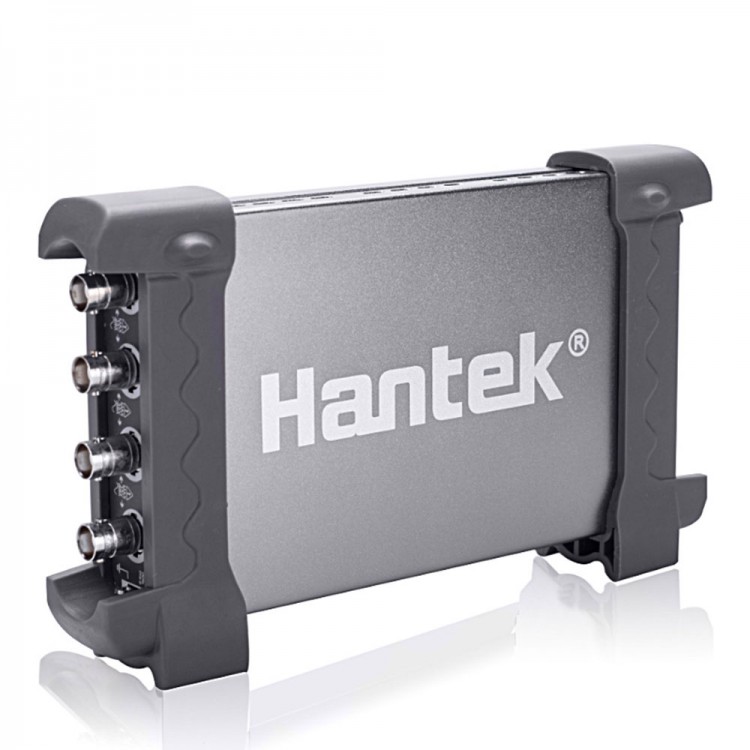

Hantek6204BE Car Diagnostic Oscilloscope 200MHz Bandwidth 4 CH Channel 1GSa/s USB2.0 Interface

Tags: Hantek6204BE Oscilloscope

Availability: In stock, usually dispatched in 1 business day

  • Price:$250.59
  • Price in reward points: 2506 Reward Points: 25
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $245.58 $240.57 $233.05 $223.03 Contact US
Quantity:

Hantek6204BE Car Diagnostic Oscilloscope 200MHz Bandwidth 4 CH Channel 1GSa/s USB2.0 Interface

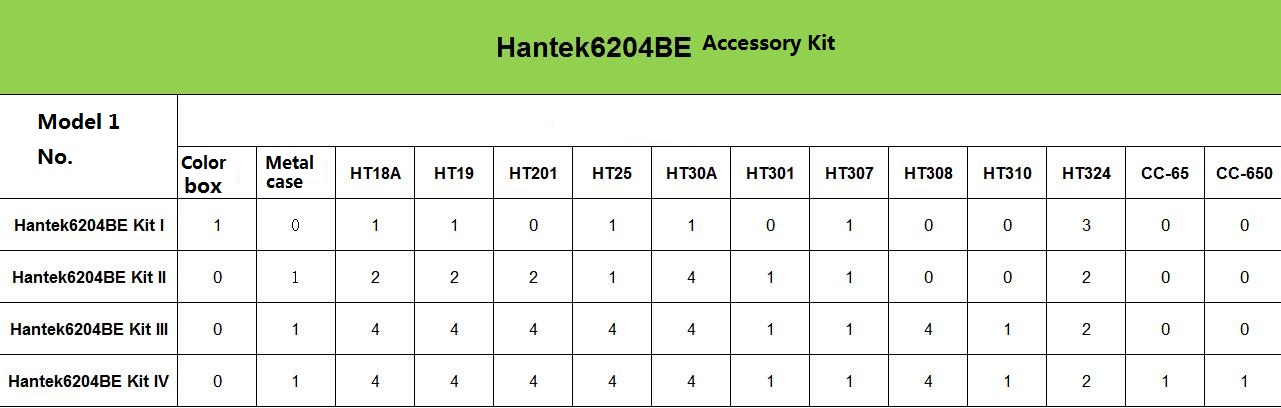

Hantek6204BE Series Kit Description:
- Standard equipped over 80 types of automotive measurement function (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge); USB 2.0 interface plug and play, and no need extra power supply; Support tablet PC; Support WIN10/ WIN8/WIN7 etc. Free software upgrading constantly, higher cost performance; Support USBXI, easy to operate.
- 4 independent channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range,200MHz high bandwidth, small size, easy for carrying. Dynamic cursor tracking, waveform record and replay function.

Features:
- Standard equipped over 80 types of automotive measurement function;
- First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition
- Ignition: primary and secondary
- Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
- Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
- Performer: Petrol/Diesel
- Starter and charging circuits
- Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.
- USB 2.0 interface plug and play, and no need extra power supply;
- Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
- Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad-Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
- 4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range,100MHz high bandwidth,
- The waveform data could be output to EXCEL,BMP,JPG.
- Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
- FFT spectrum analyzer
- One computer could connect with multiple oscilloscopes, expand the channel number easily.
- Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples.

Parameters:
- Model:Hantek6204BE
- Bandwidth:200MHz
- Automotive Measurement Function:Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition;
Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;
CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus;
Performer: Petrol/Diesel;
Starter and charging circuits
- Channel:4 CH
- Real-time Sampling Rate:1GSa/s
- Memory Depth:64K
- Time Base Precision:±50ppm
- Time Base Range:2ns/div-1000s/div (1-2-4 sequences)
- Input Impedance:1MΩ 25pF
- Input Sensitivity:2mV/div~10V/div
- Vertical Resolution:8Bit
- Vertical Displacement Range:2mV~10V/div @ x1 probe; 20mV~100V/div @ x10 probe;200mV~1000V/div @ x100 probe;2V~10000V/div @ x1000 probe
- DC Gain Accuracy:±3%
- Bandwidth:20MHz
- Trigger Mode:Edge, Pulse, Video, Alternative
- Trigger Source:CH1, CH2, CH3,CH4
- Waveform Signal Process:+,-,x,÷,FFT, Invert
- Cursors Measurement:Cross, Trace, Horizontal, Vertical
- Auto Measurement:Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, - Negative Width, Duty Cycle
- Volume:175x105x25mm
- Weight:0.9KG
- Accessory:2 passive probes, 2 gator clip lines

Package List:
- 1 x Hantek6204BE Oscilloscope
- 2 x Passive probes
- 2 x Gator clip lines
