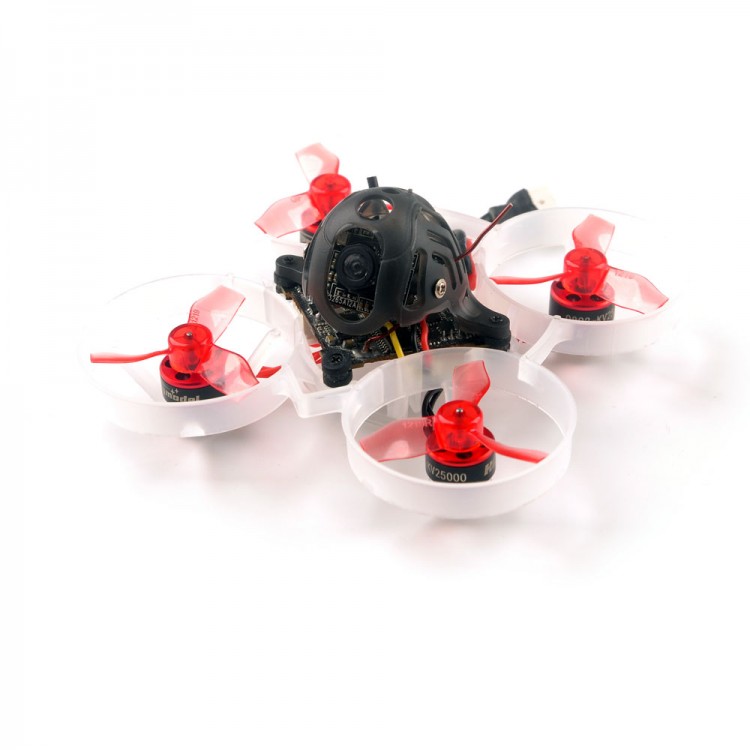

Happymodel Mobula6 1S Tiny Brushless Whoop 65MM Assembled (25000KV + For Flysky SPI RX Version)

Availability: In stock, usually dispatched in 1 business day

  • Price:$120.32
  • Price in reward points: 1203 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $117.91 $115.51 $111.90 $107.08 Contact US
Quantity:

Happymodel Mobula6 1S Tiny Brushless Whoop 65MM Assembled (25000KV + For Flysky SPI RX Version)

Features:

- AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
- Extreme light 1S 65mm Brushless whoop weighs only 20g
- The lightest 1/3 CMOS 800TVL Camera for Runcam Nano3
- Smooth and powerful
- Camera Angle adjustable

Specifications:

- Brand Name: Happymodel
- Item Name: Mobula6 1S 65mm Brushless Whoop Drone BNF version
- Wheelbase: 65mm
- Size: 80mm*80mm*37mm
- Weight: 20g
- Receiver Option:
  For Internal SPI Frsky version (Fit for ACCST D8/D16, Recommend D8 mode)
  For Internal SPI Flysky version(Fit for AFHDS and AFHDS-2A Flysky transmitter)
- Motor Speed Option:
  SE0802 KV25000(Race Edition)
  SE0802 KV19000(Regular Edition)

Package Included:
- 1 x Mobula6 1S 65mm whoop Drone Frame
- 1 x SPI Receiver For Crazybee F4 Lite FC built-in Flysky SPI RX
- 4 x SE0802 KV25000 Brushless Motors

- 1 x Set of Propellers For Gemfan 1219-3 (4CW+4CCW)
- 1 x 1/3 CMOS 800TVL Camera For Runcam Nano3
- 1 x 5.8G 25mW 40ch VTX (Built-in Flight Controller)
- 1 x 1S USB Charger
- 1 x Propeller Disassemble Tool

Note:
- It is finished and ready to use.
- Batteries are not included in the package.


Accessories Specifications:

Motor:
- Motor Mode: SE0802 19000KV or KV25000
- Configuration: 9N12P
- Stator Diameter: 8mm
- Stator Length: 2mm
- Shaft Diameter: 1mm
- Motor Dimension(Dia.*Len): 10.5mm*14.9mm
- Weight(g): 1.9g

Propellers:
- For Gemfan 1219-3
- Center Thickness: 5mm
- Prop Disk Diameter: 31mm
- Center Hole Inner Diameter: 1.0mm
- Weight: 0.28g

Flight Controller:
- (For Frsky SPI RX Version) CRAZYBEE F4 Lite for Frsky version firmware target: CrazybeeF4FR
- (For Flysky SPI RX Version) CRAZYBEE F4 Lite for Flysky version firmware target: CrazybeeF4FS
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU-6000 (SPI connection)
- Board Size: 28.5 * 28.5MM
- Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
- Built-in OSD For Betaflight (SPI Control)
- Built-in 5.8G VTX
- Built-in SPI receiver for Frsky/Flysky
- Built-in 5V 1A BEC
- Built-in voltage detection

On-Board 4-In-1 ESC:
- MCU upgraded to EFM8BB21
- Current: 5A continuous peak 6A (3 seconds)
- Support for BLHeliSuite programmable
- Factory Firmware: O_H_5_REV16_7.HEX
- Default Protocol: DSHOT600

On-Board Receiver For Frsky SPI D8 Version:
- SPI BUS receiver fits for Frsky D8
- Fit for Non-EU transmitter D8 model
- Channels: 8ch
- Fail-safe support
- No ground interference (Transmitter and receiver 1 m from the ground): 100m~200m

On-Board Receiver For Flysky SPI Version:
- SPI BUS receiver
- Protocol: AFHDS and AFHDS-2A Switchable
- Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
- No ground interference (Transmitter and receiver 1 m from the ground): 100~200m
- Fail-safe support

On-Board 5.8g VTX:
- Output Power: 25mW
- Frequency: 40CH
- Input Voltage: 3.3V 5.5V
- Current Consumption: 300mA (type)
- Frequency: 5.8GHz 5 bands 40 channels
- With Race band
- Preparation for Smart Audio

Camera For Runcam Nano3:
- Image Sensor: 1/3" CMOS
- Horizontal Resolution: 800TVL
- Lens: 2.1mm(M8) FOV 160°
- Signal System: PAL/NTSC Non Switchable
- SNR: >50dB
- Electronic Shutter Speed: Automatic
- Automatic Gain Control (AGC): Automatic
- Min. Illumination: 0.01Lux@1.2F
- D-WDR: Automatic
- Day/Night: Color
- Power: DC 3-5.5V
- Current: 110mA@5V; 120mA@3.3V
- Housing Material: ABS
- Net Weight: 1.2g
- Dimensions: 14mm*14mm*9mm (L*W*H)
