Happymodel X12 Flight Controller w/ 12A ESC 400MW VTX Receiver (for ELRS V2.0) for Mobula7 1S Drone

Happymodel X12 Flight Controller w/ 12A ESC 400MW VTX Receiver (for ELRS V2.0) for Mobula7 1S Drone

Description:
The world first 5-IN-1 AIO flight controller, VTX for OPENVTX (up to 400mw), 12A Brushless Blheli_S ESC and OSD for Betaflight coming out recently.

It comes with onboard SPI receiver for ELRS which is suitable for ELRS TX module 2.x firmware.

This is an amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.

Specifications:
- Brand Name: Happymodel
- Item Name: X12 AIO 5-IN-1 Flight controller built-in 12A ESC and for OPENVTX
- For Betaflight firmware target: for ELRS Version: CRAZYBEEF4SX1280
- VTX antenna: U.FL
- Weight: 5.1g
- Size: 30mm*30mm*8mm

Flight controller
- For X12 ELRS V2.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU6000 or ICM20689 or BMI270 (SPI connection)
- Mount hole size: 25.5mm*25.5mm
- Built-in 12A (each) Blheli_S 4in1 ESC
- Built-in OSD for Betaflight (SPI Control)
- Built-in 5.8G 0mw~400mw for OpenVTX
- Built-in receiver for ExpressLRS 2.4G
- Built-in voltage meter sensor, voltage meter scale 110Built-in current meter sensor, current meter scale 470

Onboard 4in1 ESC
- Power supply: 1-2S LiPo/LiPo HV
- Current: 12A continuous peak 15A (3 seconds)
- Programmable
- Factory firmware: Z_H_30_REV16_7.HEX
- Default protocol: DSHOT300
- Support firmware for Bluejay
- When use firmware for Blujay with 48khz, should set startup power to 1100/1200

Onboard SPI 2.4GHz Receiver for ExpressLRS
- Packet Rate option: 50Hz/150Hz/250Hz/500Hz
- For ExpressLRS firmware version: V2.0
- RF Frequency: 2.4GHz
- Antenna : SMD antenna
- Telemetry output Power: <12dBm
- Receiver protocol: for SPI ExpressLRS
- Compatible with TX Module for ExpressLRS V2.0
- Couldn't flash separately firmware for ExpressLRS

Onboard 5.8g VTX for OPENVTX
- Firmware version: for OPENVTX
- For Smartaudio v2.1
- PIT Mode support
- RCE Mode support
- Channels: 48ch
- Transmitting Power: 0/RCE/25mw/100mw/400mw
- Power supply: DC 5V
- Current (5v): <650ma (400mw)
- Antenna connector: U.FL

Note:
- Battery is not included. 1-2S Lipo/LIHV battery is recommended.

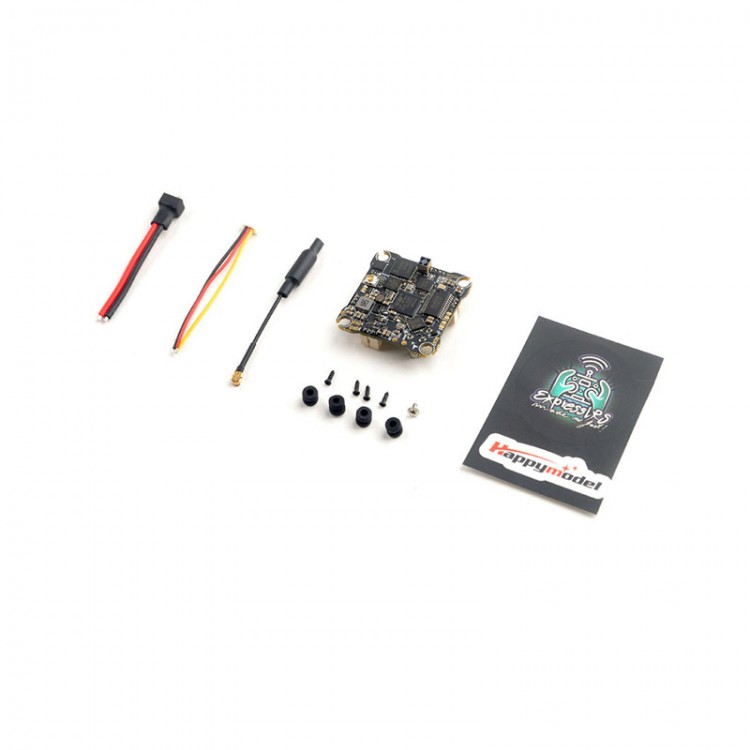

- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
