Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $286.46 | $280.62 | $271.85 | $260.16 | Contact US |

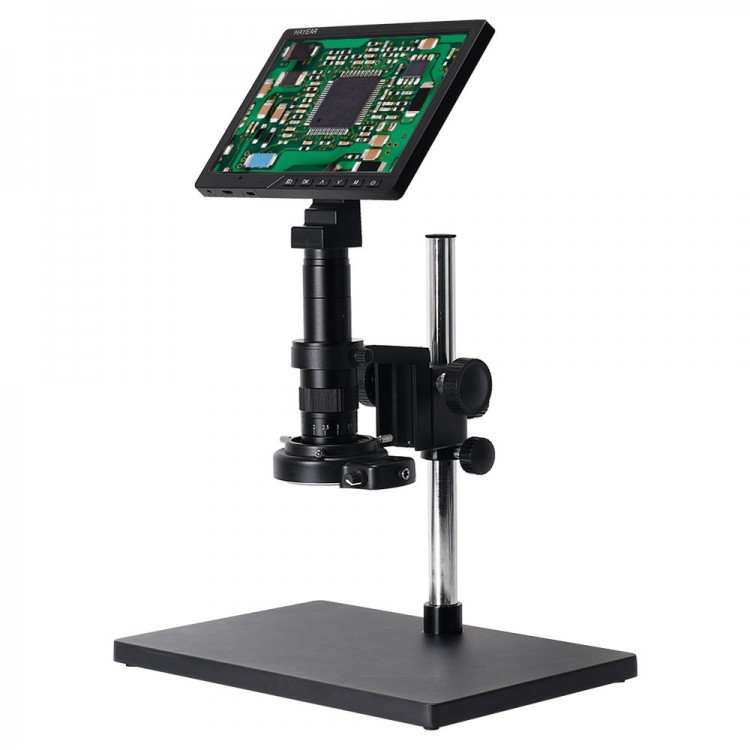

HAYEAR HY-1090 16MP Industrial Digital Microscope HDMI Camera with Stand 10.1" Screen
Features:
1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
2. Especially suitable for observing the surface microstructure of large objects
3. Using highquality materials, it is strong and durable, enabling a long service life
4. HD camera with 16 megapixel CMOS sensor 1/2.8 inch, with HDMI USB port
5. With strict quality control, quality assurance, and high safety factor, it can be used with peace of mind
Microscope Camera:
- Sensor: 16 Megapixel IMX sensor for SONY
- Pixel Size: 2.0x2.0μm
- Sensor Size: 1/2.8 inch
- Video Output Interface: HDMI / USB (HD Interface)
- Resolution: 1920x1080 at 60FPS (HDMI)
- Monitor size: 10.1 inches
- USB Output: 1920x1080 at 30FPS(USB)
- Video Ratio: Support 16:9, 4:3 Mode
- Picture Resolution: 4608 x 3456
- Frame Rate: 30FPS
- Color: R/G/B support manual adjustment
- Cross line: 5 horizontal/vertical line, Color & size of line can be adjust, cross line with scale
- Zoom: 7X digital zoom
- Magnifier Function: Support magnifying in same screen
- Sensitivity Level: Middle (can be used with extra light source)
- Interface for Lens: Standard C/CS Interface
- Dynamic Range: 40dB
- PC Systems: For Windows XP/7/8/10
- Picture Format: JPEG
- Language: CN, EN, JP, FR, DE, RU, IT, KR, TUR
- Working Voltage: 12V/1A
- Spectral Response (Wavelength): 400nm~700nm (Strong)
- White Balance: Manual/Automatic
- SNR: 45dB
- Mirror Image: Support Up/Down, Right/Left
- Black & White Mode: Support
- Storage: TF Card up to 256GB
- Working Temperature: -40°C to 70°C
180X C-mount Lens:
- Working Distance: Approx. 95mm / 3.7in
- Zoom C mount lens
- 0.5X Type-C adapter
- Scaling Ratio: 6.5: 1
- Objective lens magnification 0.7-4.5X (approximately 10-180X on the screen)
- Size (L X DIA.): Approx.180 x 50mm / 7.1 x 2in (180x maximum working distance approx.11.5cm / 4.5in)
144-LED Adjustable Compact Microscope Ring Light:
- Provides intense and focused shadow-free illumination
- 144 bright white LED bulbs
- Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power input: 100-240V, 50-60HZ, automatic switching
- Inside diameter of the ring light: 1.0" (27mm)
- Overall outside diameter: 1.77" (45mm)
- Working Distance: 1.1-1.8" (27mm-45mm)
Package Included:
- 1 x 10.1-inch microscope camera
- 1 x 180X C-mount lens
- 1 x 144-LED microscope ring light
- 1 x Adjustable bracket
- 2 x Power supplies
- 1 x USB cable
- 1 x Remote control
- 1 x HDMI cable
