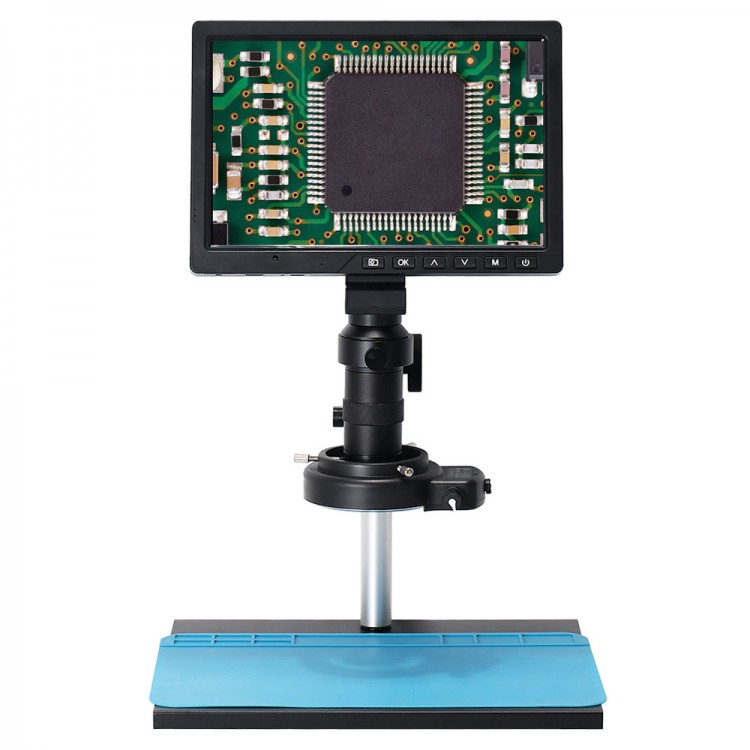

HAYEAR HY-1090 16MP Industrial Microscope Camera with Widened Metal Stand 10.1" LCD 150X Lens

HAYEAR HY-1090 16MP Industrial Microscope Camera with Widened Metal Stand 10.1" LCD 150X Lens

Description:
The HY-1090 is a multifunctional digital microscope, individually designed and developed. It realizes Full HD, high object distance, multifunction and multi-output at the same time. With help of the Hayear measuring software, it can easily meet many different requirements in many fields, such as industrial overhaul and teaching demonstration. And its appearance design combines more ergonomic consideration, providing users with better experience. We sincerely wish this product can release your eyes and improve your work quality.

Features:
1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
2. Especially suitable for observing the surface microstructure of large objects
3. Using highquality materials, it is strong and durable, enabling a long service life
4. HD camera with 16 megapixel CMOS sensor 1/2.8 inch, with HDMI USB port
5. With strict quality control, quality assurance, and high safety factor, it can be used with peace of mind

Specifications:
- Sensor: 16 Megapixel IMX sensor for SONY
- Pixel Size: 2.0 x 2.0μm
- Sensor Size: 1/2.8 inch
- Video Output Interface: HDMI / USB (HD Interface)
- Resolution: 1920x1080 at 60FPS（HDMI）
- Monitor size: 10.1 inches
- USB Output: 1920x1080 at 30FPS(USB)
- Video Ratio: Support 16:9, 4:3 Mode
- Picture Resolution: 4608 x 3456
- Frame Rate: 30FPS
- Color: R/G/B support manual adjustment
- Cross line: 5 horizontal/vertical line, Color & size of line can be adjust, cross line with scale
- Zoom: 7X digital zoom
- Magnifier Function: Support magnifying in same screen
- Sensitivity Level: Middle (can be used with extra light source)
- Interface for Lens: Standard C/CS Interface
- Dynamic Range: 40dB
- PC Systems: For Windows XP/7/8/10
- Picture Format: JPEG
- Language: CN, EN, JP, FR, DE, RU, IT, KR, TUR
- Working Voltage: 12V/1A
- Spectral Response (Wavelength): 400nm~700nm (Strong)
- White Balance: Manual/Automatic
- SNR: 45dB
- Mirror Image: Support Up/Down, Right/Left
- Black & White Mode: Support
- Storage: TF Card up to 256GB
- Working Temperature: -40°C to 70°C

8X-150X Zoom C-mount Lens:
- Working distance: 50mm-350mm
- Field of view: 3.1mm-66mm
- Zoom c-mount Lens
- Zoom ratios:15:1
- Magnification Power by 0.11X - 2X (about 8X -150X on the Monitor)
- Size: 100mm (L) * 28mm (DIA)

144-LED Adjustable Microscope Ring Light:
- Provides intense and focused shadow-free illumination
- 144 bright white LED bulbs
- Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power input: 100-240V, 50-60HZ, automatic switching
- Inside diameter of the ring light: 1.0" (27mm)
- Overall outside diameter: 1.77" (45mm)
- Working Distance: 1.1-1.8" (27mm-45mm)

Package Included:
- 1 x 10.1-inch HD microscope camera
- 1 x 150X C-mount lens
- 2 x Power supplies
- 1 x USB cable
- 1 x Adjustable bracket
- 1 x Remote control
- 1 x HDMI cable
- 1 x 144-LED ring light
