HAYEAR HYZS7045-STL1 Trinocular Single-armed HD Continuous Multiplier 7-45X Zoom Microscope with Industrial Camera and Screen

HAYEAR HYZS7045-STL1 Trinocular Single-armed HD Continuous Multiplier 7-45X Zoom Microscope with Industrial Camera and Screen

Features:

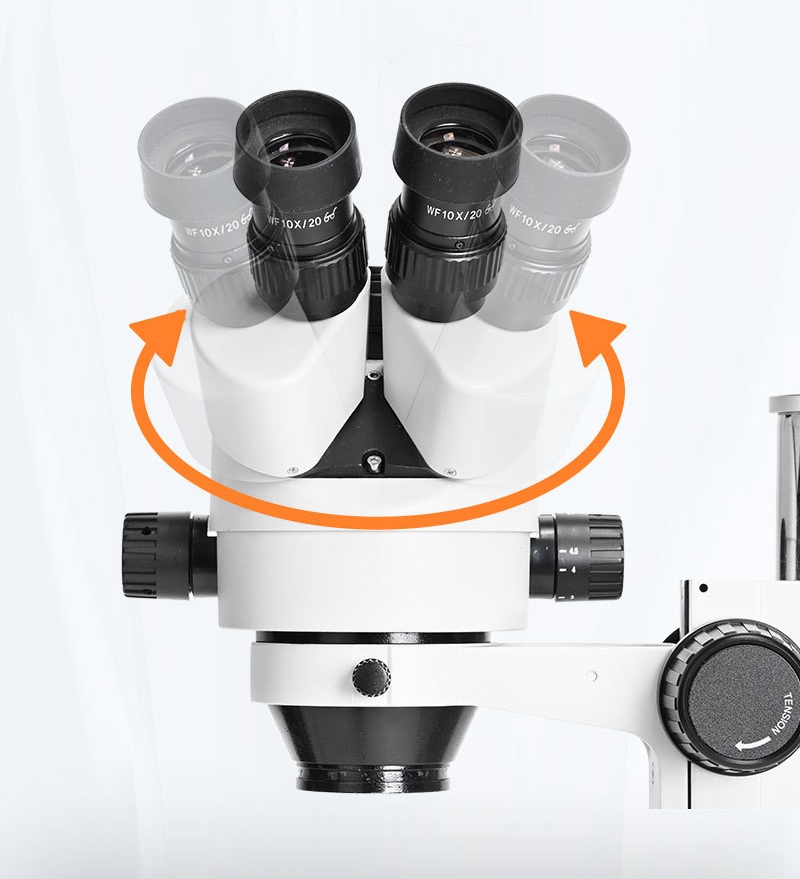

- Single arm universal continuous zoom microscope, capable of 360° rotation and multi angle adjustment, connected to various external devices.
- Single arm universal continuous zoom microscope with 360° rotation and multi angle adjustment, suitable for mechanical electronics, manual textiles, instrumentation, and jewelry testing.
- 12KG base, high-definition continuous zoom 7-45X, suitable for observing products with larger areas.
- The high hardness metal material universal bracket and column have strong corrosion resistance, making the stability of the body better, with strong load-bearing capacity, stable and reliable, and no shaking when viewed.
- High eye point wide-angle eyepiece, 52-75mm adjustable binocular pupil distance, can be observed even with glasses removed, suitable for comfortable observation of various groups of people.
- Metal copper objective lens, made of all metal material, with optical lenses and coated lenses for sharp and clear imaging.
- LED circular split light: Using high-quality LED beads, it has high brightness, uniform illumination, no shadows, and a large illumination area. The size of the light source can be adjusted according to personal needs, which is environmentally friendly, energy-saving, and has a long lifespan.
- Widely used in textile products, chemical engineering, plastic products, jewelry testing, electronic maintenance, mechanical manufacturing, printing industry, biological anatomy, archaeological research and many other fields.

Microscope Specification:
- Magnification: continuous zoom 0.7 - 4.5X
- Lens: high eye spot wide-angle 10X/20
- Observation lens cone: trinocular with a relatively large chain, 45° inclination, and a lens cone spacing of 52-75mm
- Objective: Continuous zoom objective
- Diopter: binocular vision adjustment range: ±5

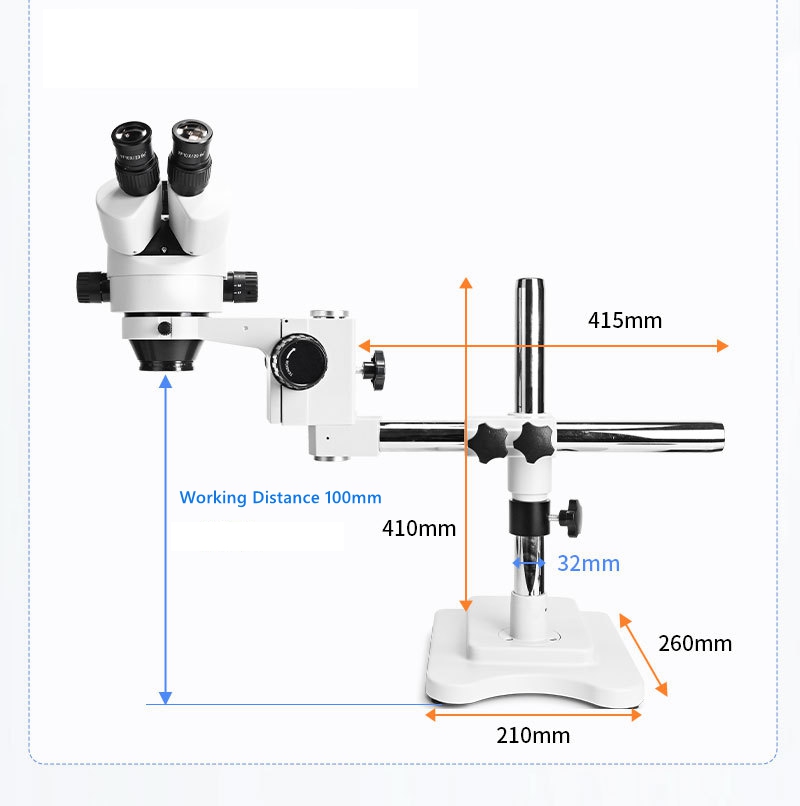

- Working distance: 100mm (standard configuration)
- Support: Double pole universal support (WX type)
- Focusing mechanism: XTWZ bracket
- Packaging: foam box + carton
- Other: equipped with circular light interface and built-in TV interface

Industrial Camera Specification:
- Image Sensor: for SONY CMOS 1/2.9 sensor
- Video output frame rate: 2K/1080P at 60fps (HDMI output); 1080P at 30fps (USB output)
- Photography pixel: 34millions pixel for HDMI, 2millions for USB
- Video output resolution: 1920 x 1080P (HDMI/USB interface)
- Digital zoom: 7X
- Measurement: support for Windows XP/7/8/10 systems
- Storage: support up to 128GB TF Card
- Language setting: Chinese, English, Japanese, French, German, Russian, Italian, Arabic, Korea, etc.
- Cross-line: supported (8 horizontal and 8 vertical)
- White balance: supports automatic and manual adjustment, and RGB adjustable
- Exposure: supports automatic and manual adjustment
- File format:
  Video: MP4
  Photo: .jpg
- Camera interface: Supports C (25mm)/CS interface
- Mirror image settings: Standard/Horizontal Mirror Image/Vertical Mirror Image/Horizontal + Vertical
- Light source frequency: 50Hz 60Hz

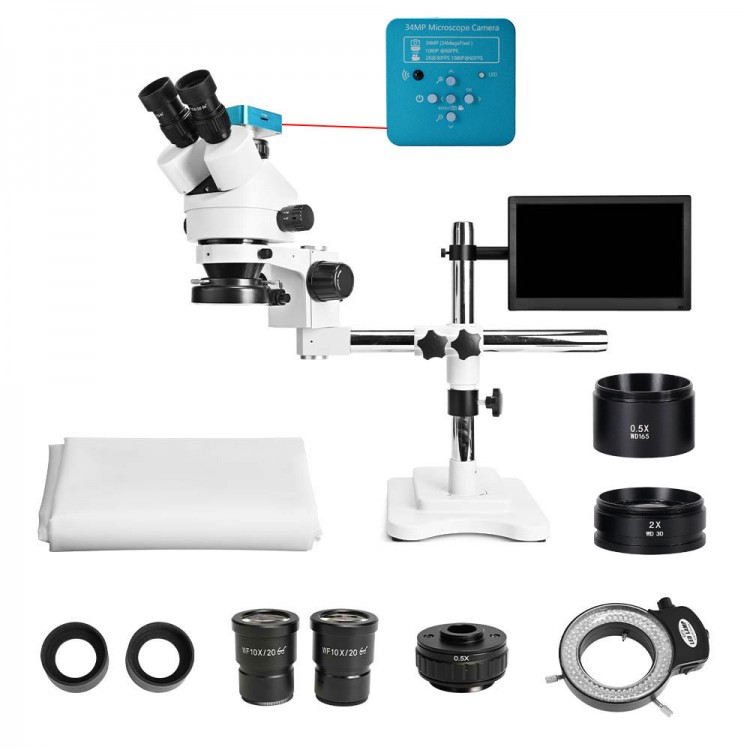

Package Included:
- 1 x Set of Microscope (with Screen)
