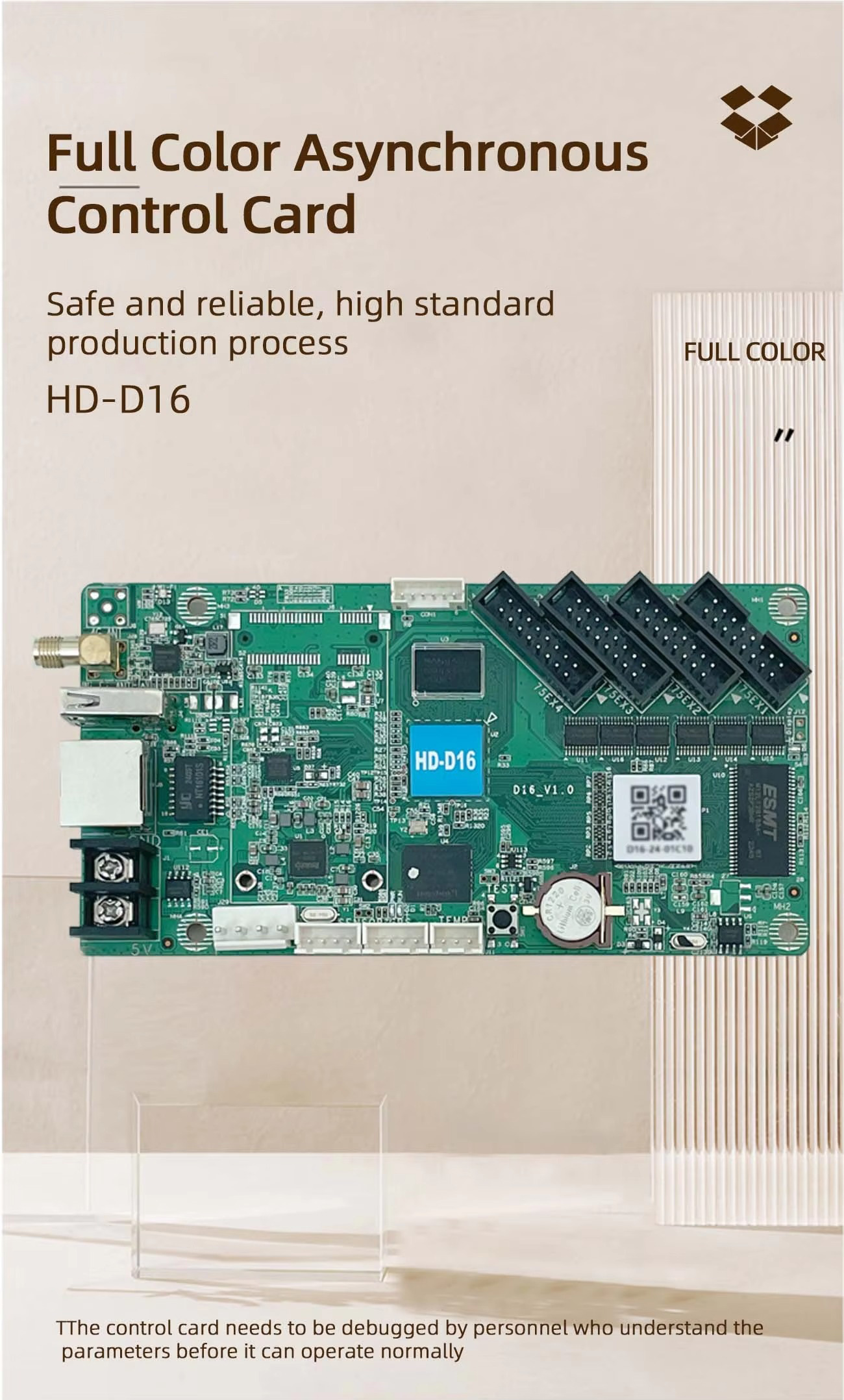

HD-D16 Asynchronous LED Control Card with 4G Module for Full Color LED Displays Internet U Disk Wifi

HD-D16 Asynchronous LED Control Card with 4G Module for Full Color LED Displays Internet U Disk Wifi

Features:
* Built-in standard Wi-Fi module for mobile app wireless control
* Supports 256 to 65,536 grayscale levels
* Compatible with video, picture, animation, clock, and neon background displays
* Features word art, animated backgrounds, and neon light effects
* Unlimited program expansion via USB drive; plug-and-play functionality
* No IP configuration required; the HD-D16 is automatically identified by controller ID

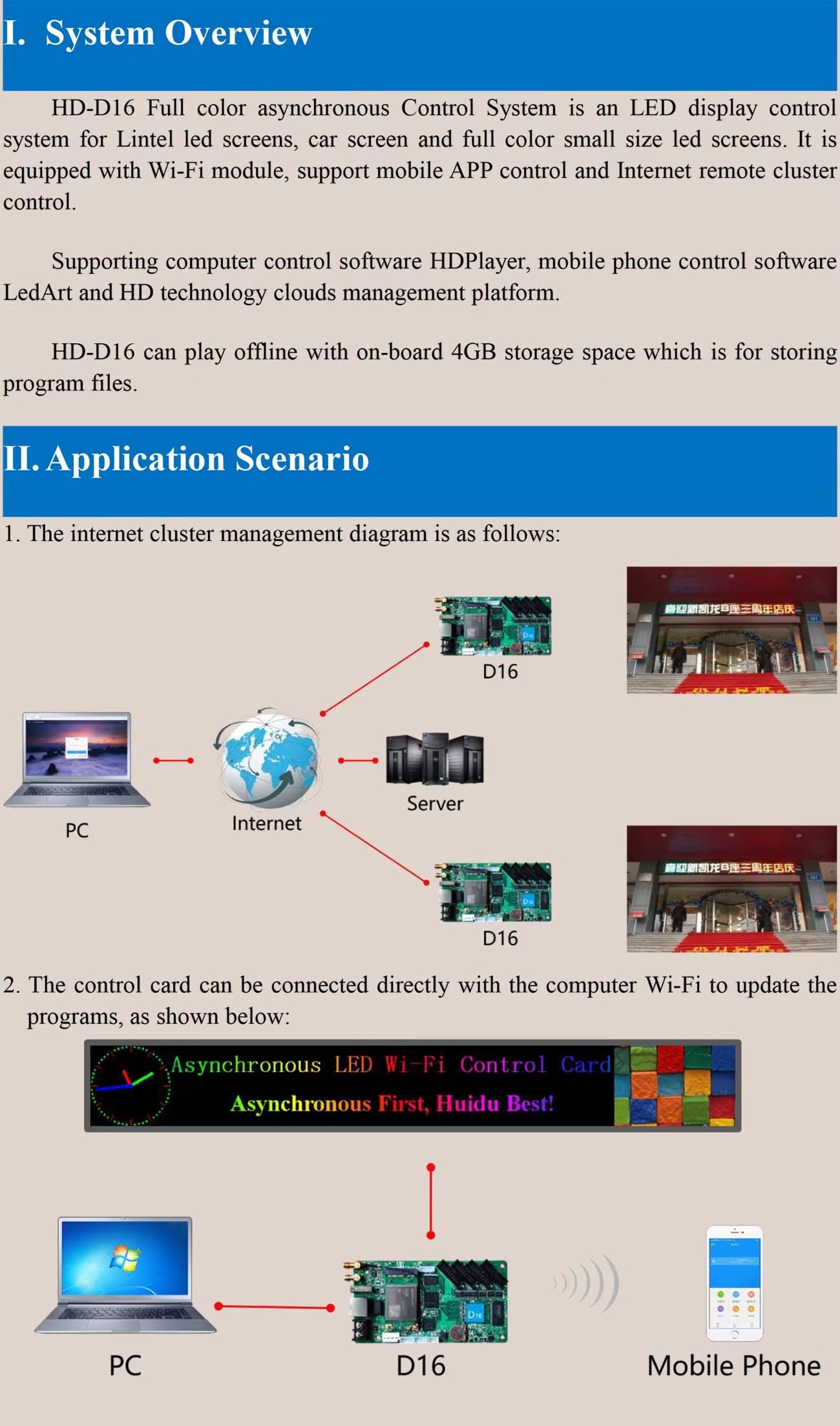

* Supports 4G (optional)/Wi-Fi and network cluster management for remote control
* Capable of 720P video hardware decoding with a 60Hz frame rate output

System Function List:
* Module Type: Static to 1-64 scan modules.
* Control Range: Total: 640 x 64 pixels. Maximum width: 640 pixels or maximum height: 128 pixels.
* Gray Scale: Supports 256 to 65,536 grayscale levels.
* Video Formats: 60Hz frame rate output. Supports 720P video hardware decoding with direct transmission (no transcoding required). Compatible formats: AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.
* Animation Formats: SWF, FLV, and GIF.
* Image Formats: BMP, JPG, JPEG, PNG, etc.
* Text: Supports text message editing and image insertion.
* Time: Features analog clock, digital clock, and various dial clock functions.
* Other Functions: Neon and animation effects. Clockwise/counter-clockwise countdown. Supports temperature and humidity display. Adaptive brightness adjustment.
* Memory: 4GB built-in memory, supporting over 4 hours of program storage. Unlimited memory expansion via USB flash drive.
* Communication: Supports USB flash drive, Wi-Fi, LAN, and optional 4G connectivity.
* Port: 5V Power *1, 10/100M RJ45 *1, USB 2.0 *1, and HUB75E *4.
* Power: 5W.

Package Included:

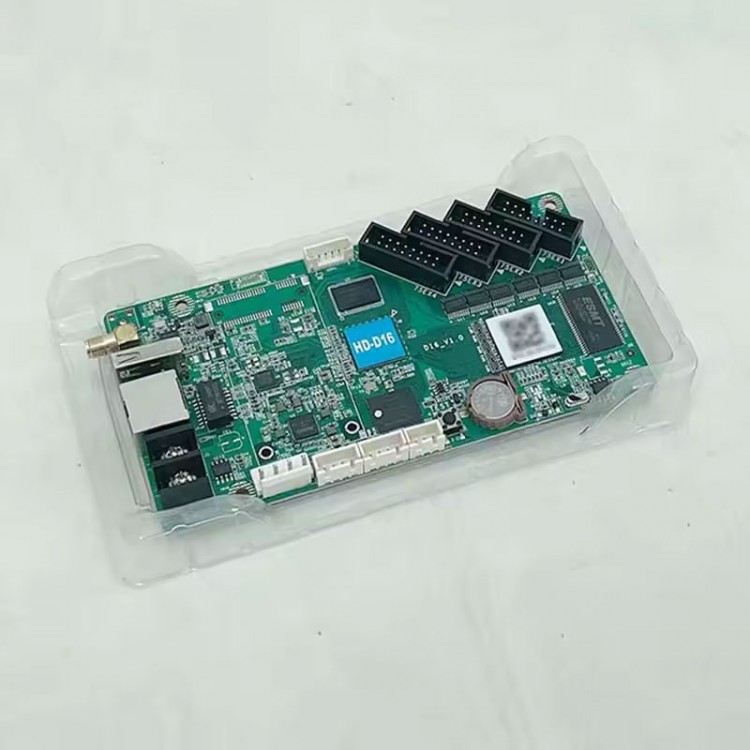

* 1 x LED Control Card

Packaging Details:
* Weight: 0.5kg

Note:
* The HD-D16 supports program updates via USB drive or removable hard disk.

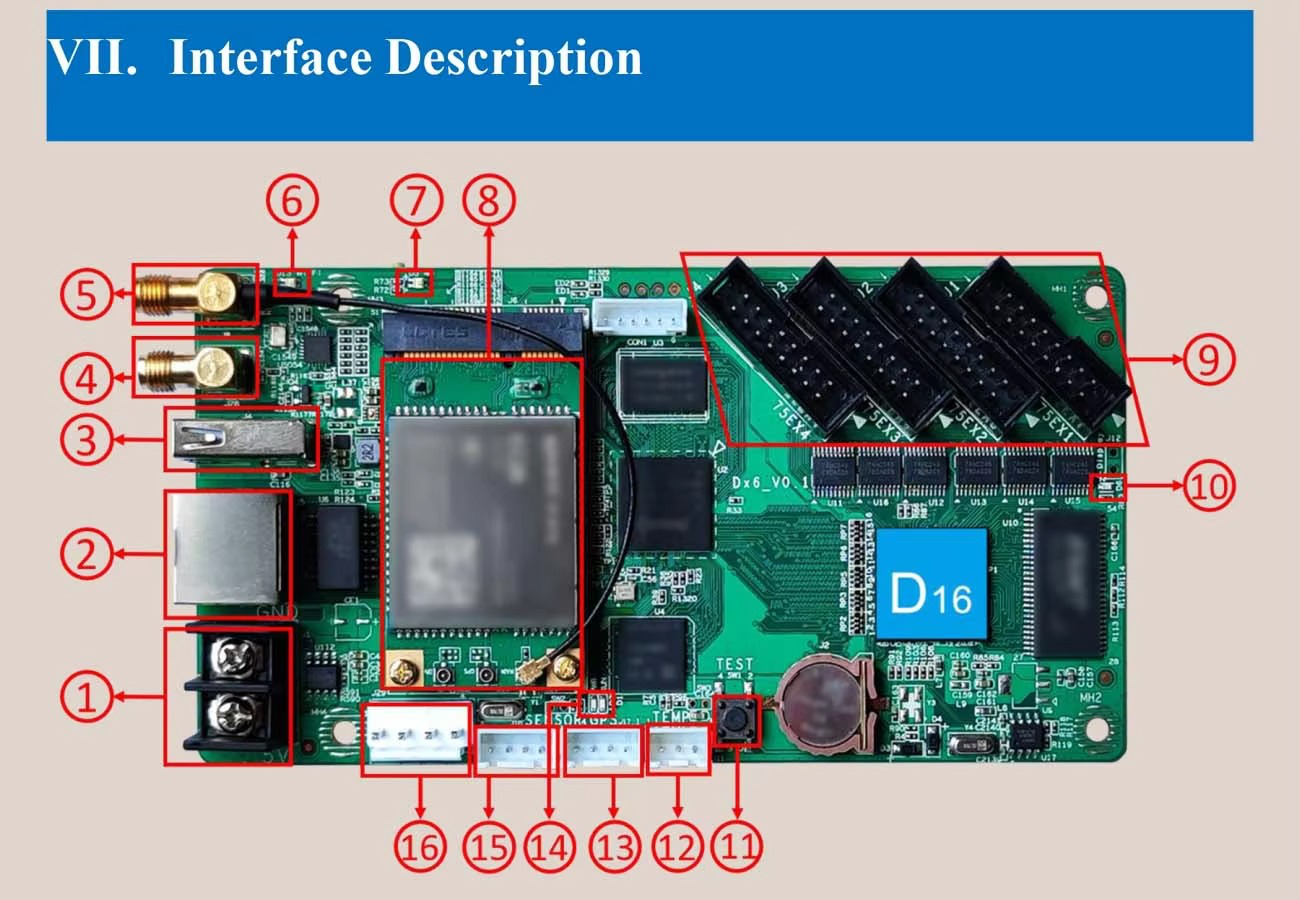

① Power Terminal: Connect to a 5V power supply.
② RJ45 Network Port: Connect to a computer network port, router, or switch. Normal working state is indicated by an orange light (always on) and a green light (flashing).
③ USB Port: Connect to a USB device for program updates.
④ Wi-Fi Antenna Connector Socket: for Wi-Fi antenna.
⑤ 4G Antenna Connector Socket: for 4G antenna.
⑥ Wi-Fi Indicator Light: Displays the Wi-Fi working status.
⑦ 4G Indicator Light: Displays the 4G network status.
⑧ Optional 4G Module: Provides internet access for the control card.

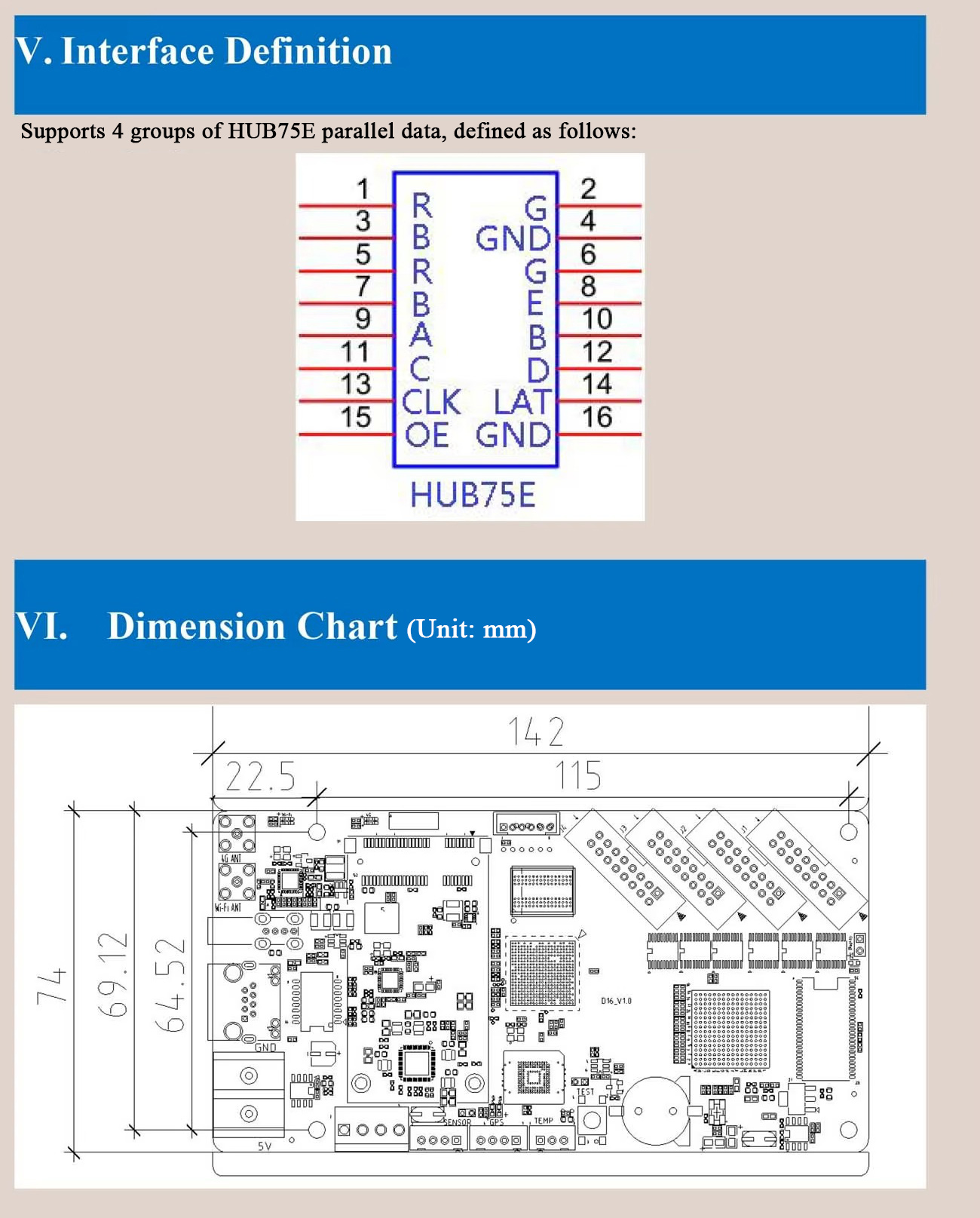

⑨ HUB75E Port: Connect to the LED screen via cable.
⑩ Display Light (Display): Normal working state is indicated by a flashing light.
⑪ Test Button: Used to test the brightness and contrast of the display screen.
⑫ Temperature Sensor Port: Connect to a temperature sensor.
⑬ GPS Port: Connect to a GPS module for time correction and fixed positioning.
⑭ Indicator Lights:
    PWR: Power indicator; remains on when the power supply is normal.
    RUN: Working status indicator; flashes during normal operation.
⑮ Sensor Port: Connect to external sensors, such as environmental monitoring or multi-function sensors.
⑯ Power Port (Foolproof Design): 5V DC power interface with the same function as ① (Power Terminal).
