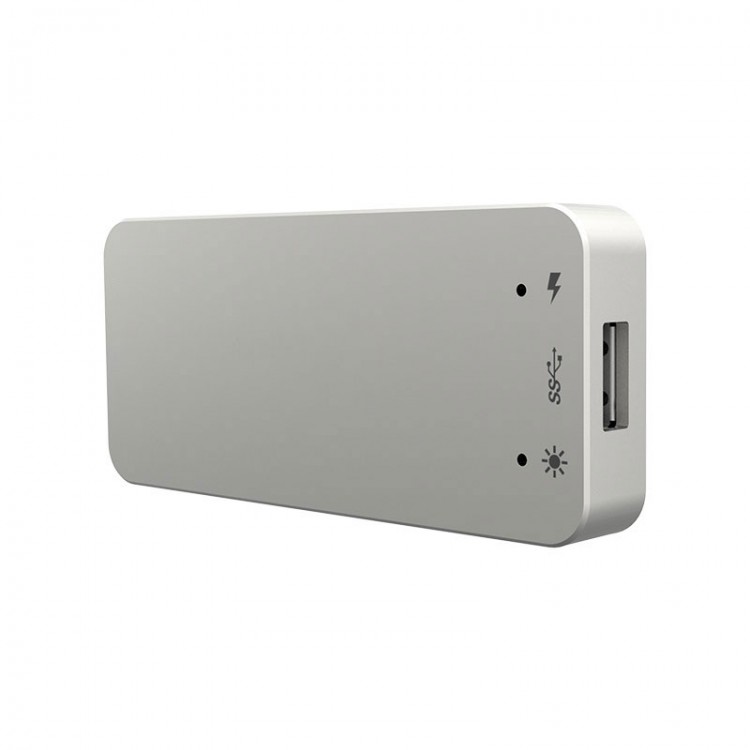

HD100USB USB3.0 Acquisition HDMI One Single Channel HD HDMI video Signal for Audio Video
Product Features
- It can collect one single channel HD HDMI video signals.
- The input and output video signal can reach 1080p/60 Hz.
- It is compatible with UVC video acquisition and YUV 422 video output.
- The UAC is compatible with HDMI audio acquisition and 48 KHz PCM audio output.
- It doesn't need to install a driver, and it is truly PnP.
- It is compatible with Windows, Linux, OS X operating systems.
- Size: 84.25x42.8x12.6 (L/W/H, mm).
Note:For the copyright protection, the user shall not use the device to collect the HD output of blue ray player.
Advanced Features
- USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0.
- The process of video and audio is done by the dongle and will not occupy the CPU.
- It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
- It can automatically detect the input audio formats and swift it to 48KHz PCM audio.
- It supports the image adjustment features, like brightness, contrast, hue and saturation.
- Multiple dongles can be used on one PC
- The firmware can be updated.
Note:The actual USB 3.0 throughput is related to the chip of the host and motherboard of the PC and the figure shall be lower than the figure stated here.
Package Contents:
- 1 x USB3.0 cable
- 1 x HD100USB unit
