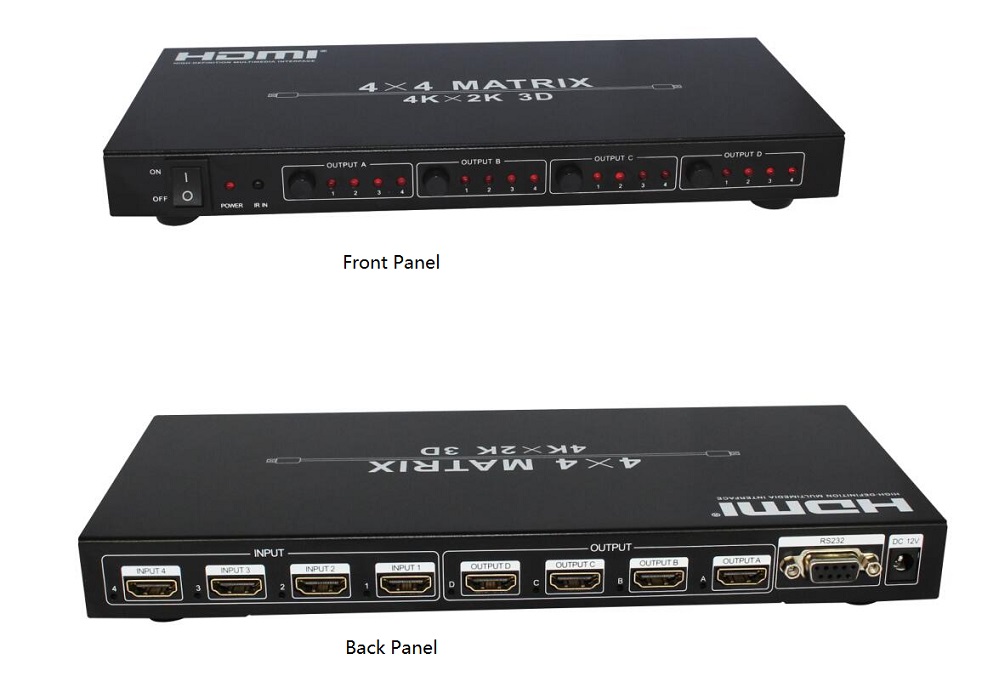

Product Description:HDM-944 is a high performance HDMI Matrix with four HDMI inputs & four outputs.It allows any source (Blue-Ray player,HD DVD player, game system,etc.)to be shown on the any of the four displays simultaneously, and supports 4Kx2K,D,Deep Color.With its 3Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution.
Features:
- High performance HDMI Matrix with four HDMI inputs & four outputs,allows any source (Blue-Ray player,HD DVD player,game system, etc.)to be shown on any of the four displays simultaneously.
- Supports display resolutions up to 4Kx2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz.
- Support all 3D HDMI 1.4a formats up to a 297MHz TMDS clock.
- Support deep color up to 48-bit per pixel.
- Input support HDCP 1.4,output support HDCP v1.4a protocol.
- Support reception of any audio data conforming to the HDMI specification 1.4 such as L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR.
- Full colorimetry including sYCC601,Adobe RGB,Adobe YCC601,xvYCC extended gamut color.
- Operates for TMDS clock frequencies up to 300MHz.

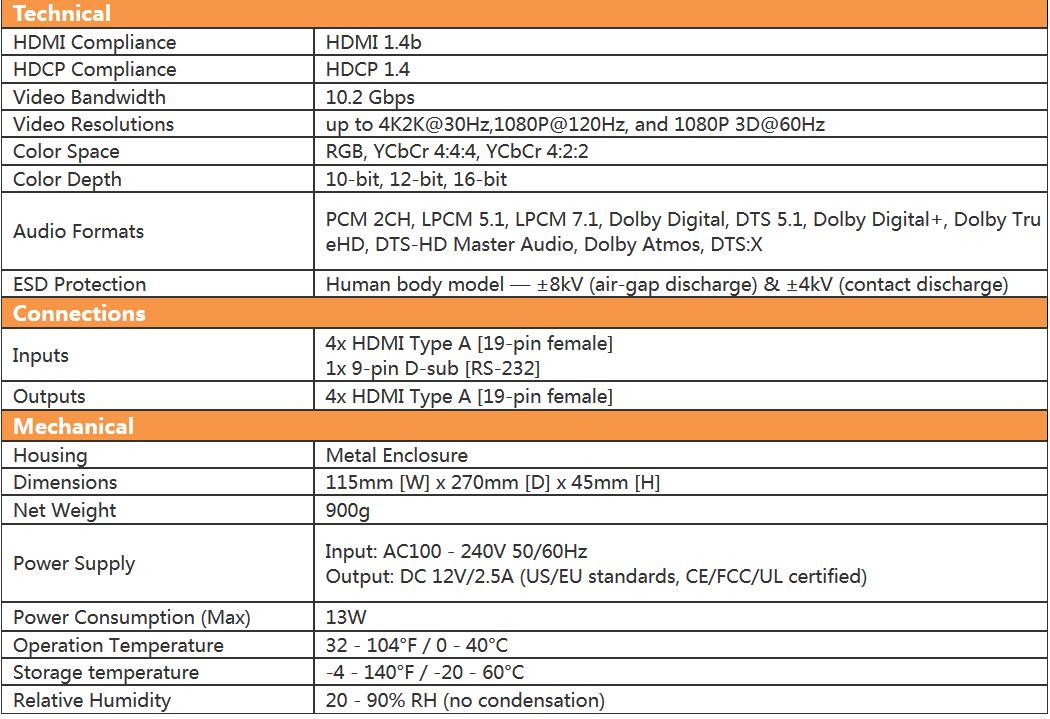

Specifications:
- Frequency Bandwidth: 297MHZ(10.2Gbps)

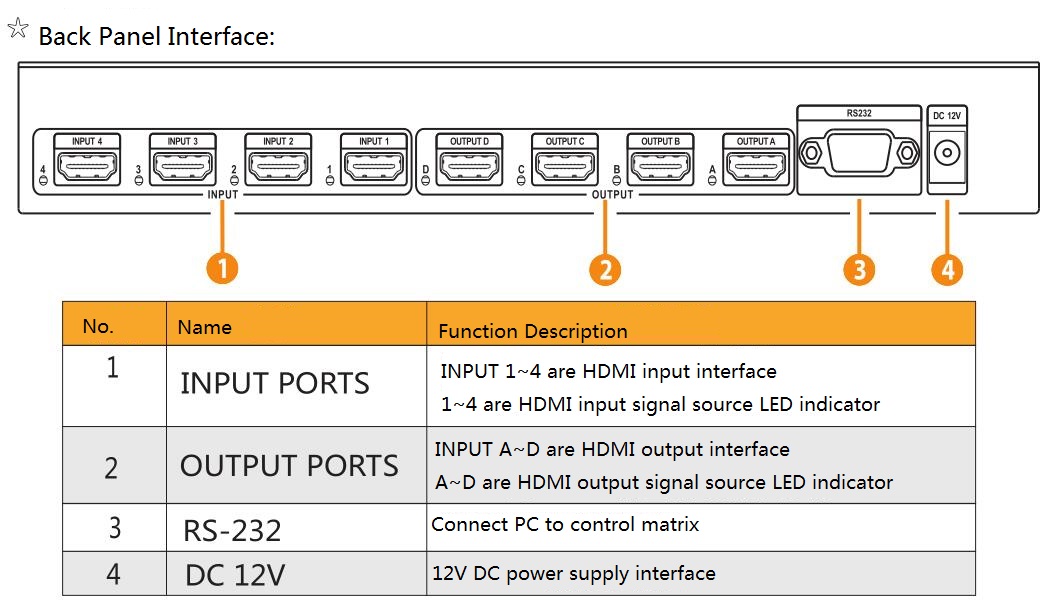

- Input Ports: 4pcs HDMI Female input ports
- Output Ports: 4pcs HDMI Female output ports
- Power Supply: DC 12V,2.5A (US/EU standard)
- ESD Protection Human Body Model: ±8kV(air-gap discharge)±4kV(contact discharge)
- Power Consumption (Max): 20W
- Operating Temperature: 0°C-40°C/32°F-104°F
- Storage Temperature: -20°C-60°C/-4°F-140°F
- Relative Humidity: 20-90% RH (Non-condensing)
- Color:Black
- Shell:Metal shell
- Size:115x270x45mm (LxWxH)
- Weight:900g

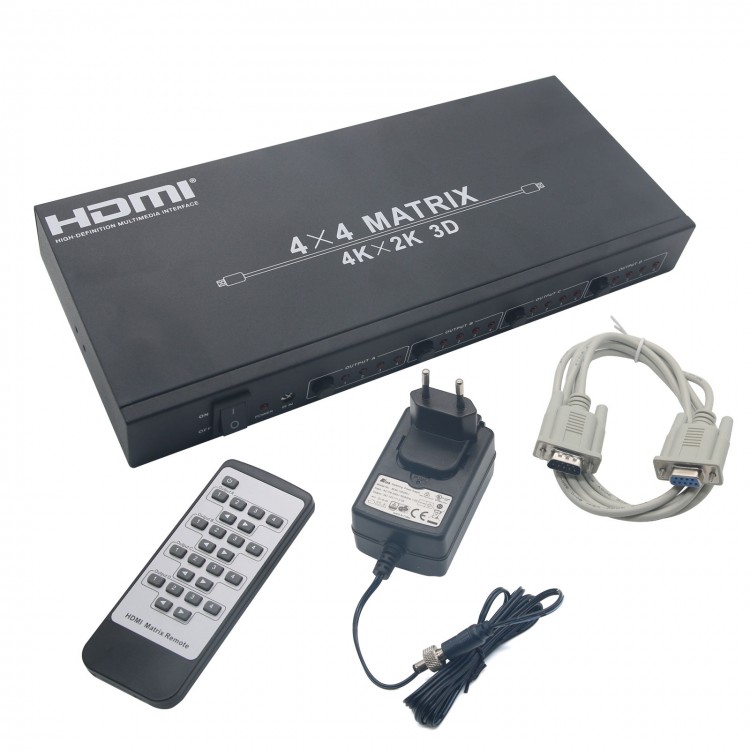

Package included:
- 1 x 4x4 HDMI Matrix
- 1 x 12V/2.5A Power Adapter

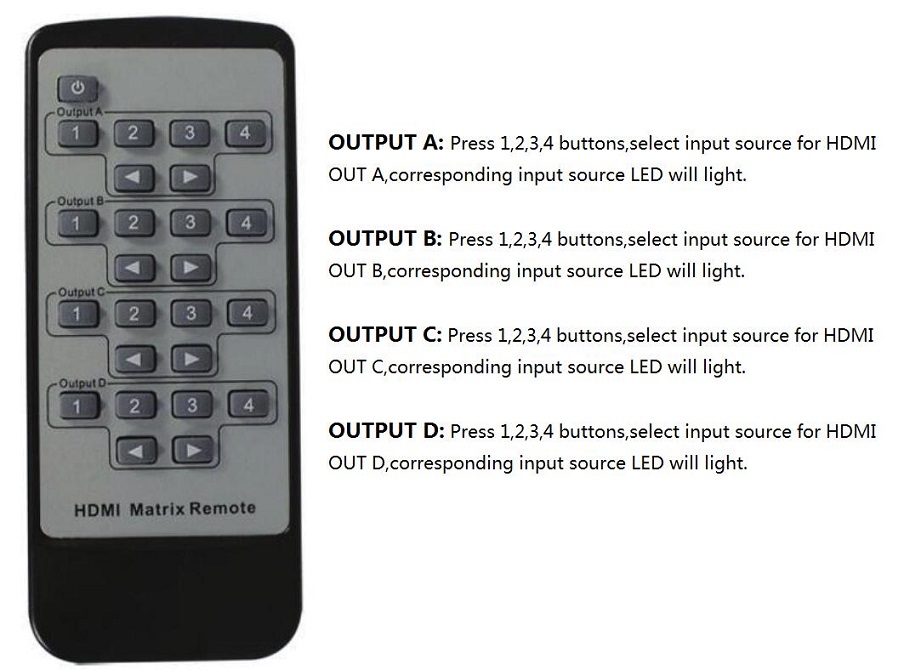

- 1 x HDMI Remote Controller
- 1 x RS232 Serial Cable
- 1 x English User Manual
