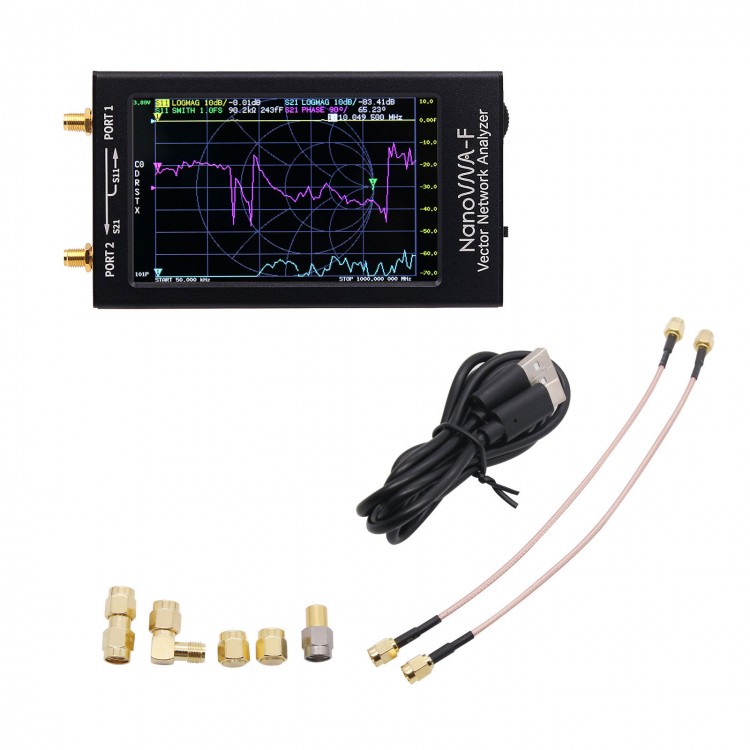

HF VHF UHF VNA Vector Network Analyzer Kit 50KHz-1000MHz with 4.3" LCD Display Metal Case NanoVNA-F
Description:
NanoVNA-F Mini Vector Network Analyser is a product based on the Open Source Project of NanoVNA (https://ttrf.tk/kit/nanovna/). The RF part is consistent with the original version (NanoVNA-F uses harmonic spread measurement frequency to 1 GHz).
Hardware Main Functions:
- 4.3-inch IPS TFT LCD display with larger viewing angle. Users can read clearly even in strong outdoor light
- Longer standby time. USB expansion port can be used for charging other items when not in use for measurement
- Larger current 2A charging IC with shorter full charging time
- Larger pulsator with better operational sense
- Larger power switch with a better sense of operation
- Support Chinese and English menu switching
- Upgrade user program through the virtual U disk mode
- Standard aluminum casing protects the SMA head and reduces the interference of external electromagnetic waves on the instrument
- Software open source github.com/flyoob/NanoVNA-F
Basic Parameters:
- Size: 14 x 7.5 x 2cm (L*W*H)
- Measurement Frequency: 50KHz ~ 1000MHz (50KHz~1GHz)
- RF Output: -13dbm (maximum -9dbm)
- Frequency Accuracy: < 0.5ppm
- Port SWR: < 1.1
- Display: 4.3-Inch IPS TFT (800x480)
- USB Interface: USB Type-C communications Mode: CDC (Serial)
- Power Consumption: USB 5V 200mA
- Max. Charging Current: 2A
- Output Capacity: 5V/1A; Support for Android, Apple mobile phone
- Number of Calibration Points: 101
- Number of Scanning Points: 101
- Display Tracking: 4; Marking: 4; Setting Saving: 5
- Scanning Time: about 1.9s/1 times (50kHz ~ 1000MHz full frequency band)
- Application: Measure S parameters, voltage standing wave ratio SWR, phase map, group delay, Smith chart, etc.
Package Included:
- 1 x Vector Network Analyzer
- 2 x 20cm SMA-JJ RG316 Cables
- 1 x 50Ω Standard Load
- 1 x Open-Circuit Calibration Piece
- 1 x Short-Circuit Calibration Piece
- 1 x SMA-JJ Double-Head Needle
- 1 x SMA L-Shape Connector
- 1 x Type-C Data Cable
- 1 x NanoVNA-F Quick Start Guide
