Nanovna-H NanoVNA 50KHz-1.5GHz Very Tiny Handheld Vector Network Analyzer Antenna Analyzer MF HF VHF

Availability: In stock, usually dispatched in 1 business day

  • Price:$48.44
  • Price in reward points: 484 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $47.47 $46.50 $45.05 $43.11 Contact US
Quantity:

Nanovna-H NanoVNA 50KHz-1.5GHz Very Tiny Handheld Vector Network Analyzer Antenna Analyzer MF HF VHF

Features:

- The software has been updated. It can connect to most mobile phones for Android and support same screen display. Solve problems such as small screen and insufficient brightness
- Support time domain analysis function (TDR)
- Battery usage can be displayed on the interface
- Information such as the copyright of designer has been added
- In response to customer needs, a ABS shell is made by open molding. Compared with the ones using 3D printing shells, it saves costs
- Product serial number is posted on the back
- With a brief description
- Other detail improvements

Basic Performance:
- ABS case: 58.7 x 91.3 x 17.1mm/2.3 x 3.6 x 0.7" (excluding sizes of protrusions)
- PCB: 54 x 85.5 x 11mm/2.1 x 3.4 x 0.4" (without sizes of connectors or switches)
- Measurement frequency: 50KHz -1.5GHz
- RF output: 0dbm (±2dbm)
- Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz));
- Port SWR: < 1.1
- Display: 2.8" TFT (320x240)
- USB interface: USB type-C communication mode: CDC (serial)
- Power supply: USB 5V 120mA, built-in 650mAh battery, maximum charging current 300mA
- Number of scanning points: 101 (fixed)
- Display Tracking: 4, Marking: 4, Setting Save: 5
- Frequency Tolerance: <2.5ppm
- Frequency Stability: <0.5ppm

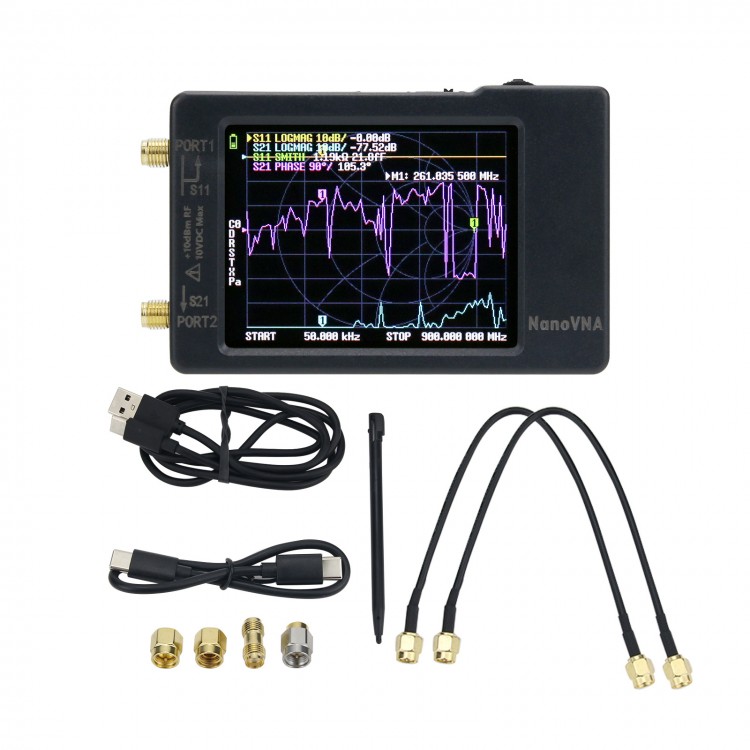

Package Included:
- 1 x NanoVNA Host (including 2.8" touch screen and 650mAh battery)
- 2 x SMA Male to Male RG174 RF Cables 20cm/7.9"
- 1 x SMA Female to Female Connector
- 1 x SMA Simple Calibration Part SHORT
- 1 x SMA Simple Calibration Part OPEN
- 1 x SMA Simple Calibration Part LOAD
- 1 x USB Type-C Data Cable
- 1 x Type-C to Type-C Cable (for Connecting to Most Android Cellphones)
