LiteVNA 50Khz-6.3Ghz Vector Network Analyzer Antenna Analyzer With 2.8" Display For MF HF VHF

Availability: In stock, usually dispatched in 1 business day

  • Price:$124.53
  • Price in reward points: 1245 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $122.04 $119.55 $115.81 $110.83 Contact US
Quantity:

LiteVNA 50Khz-6.3Ghz Vector Network Analyzer Antenna Analyzer With 2.8" Display For MF HF VHF

Description:

LiteVNA improves on the popular NanoVNA and SAA2. Now you can get a portable vector network analyzer (VNA) as small as the NanoVNA and capable of meeting the ultra-wide measurement range of 50 kHz to 6.3 GHz.

To minimize power consumption and size, the LiteVNA uses only one mixer, with multiple internal RF switches for S11 and S21 measurements, and IFFT calculations for TDR and DTF measurements.

Designed with the community's input in mind, the LiteVNA now brings faster scanning speeds and more scan points in addition to a wider measurement range. Combined with an easy-to-use interface consistent with the NanoVNA, the LiteVNA can now be easily used as a field test tool.

LiteVNA includes a MicroSD slot, so you can save field test data or screens to a MicroSD card at any time. With a measurement range of up to 6.3GHz, the LiteVNA is capable of meeting common amateur radio and IoT applications, as well as emerging 5GHz testing, enabling the application of the latest 5.8GHz wifi and 5.8GHz image transmission.

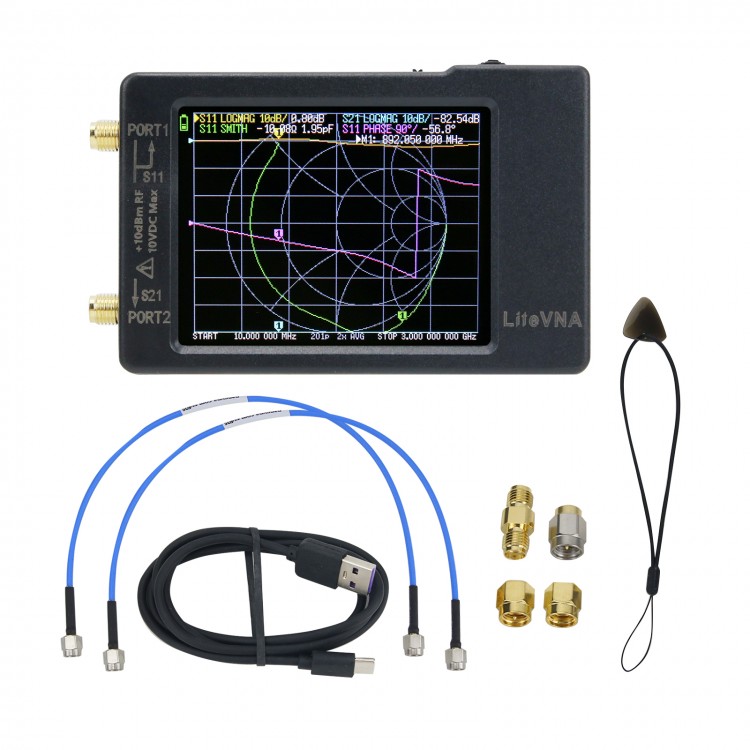

Package Included:
1. LiteVNA host (with 2.8" touch screen and 1300mAh battery) x 1
2. 30cm/11.8" SMA male to male SS405 RF cables x 2
3. SMA female to female connector x 1
4. SMA simple calibration kit SHORT x 1
5. SMA simple calibration kit OPEN x 1
6. SMA simple calibration kit LOAD x 1
7. USB Type-C data cable x 1
8. Touch pick x 1
