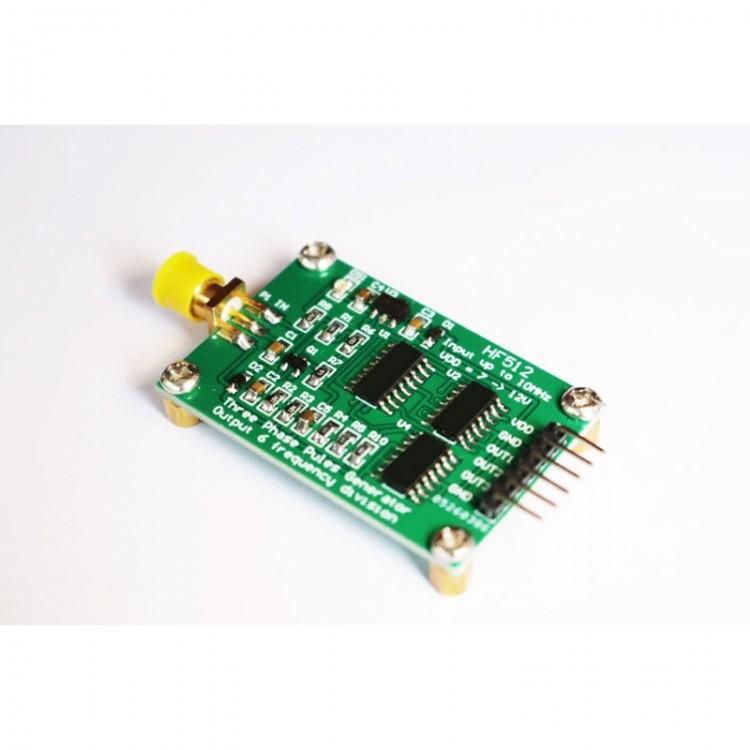

HF512 50Hz ~ 10MHz Three-Phase Pulse Signal Generator High Quality Radio Accessory with SMA Connector
Specification:
- Working voltage: 7 - 12V
- Working current: <500mA
- Input voltage range: ±0.1V ~ ±5V
- Output voltage range: 5V
- Input frequency: 50Hz ~ 10MHz
- Output frequency: (50Hz ~ 10MHz)/6 (output is 6 divides of input)
- Application range: digital phase shifter design
- PCB size: L x W x H = 45 x 25 x 10mm
Interface description:
P1 Interface:
- Pulse signal input interface (amplitude: ±0.1V ~ ±5V) SMA interface
P2 Interface:
- VDD: power connector (7 - 12V)
- GND: negative power
- OUT1: output pulse with a phase of 0 degrees
- OUT2: output pulse with a phase of 120 degrees
- OUT3: output pulse with a phase of 240 degrees
- GND: negative power
Package Included:
- 1 x Pulse Signal Generator Module
