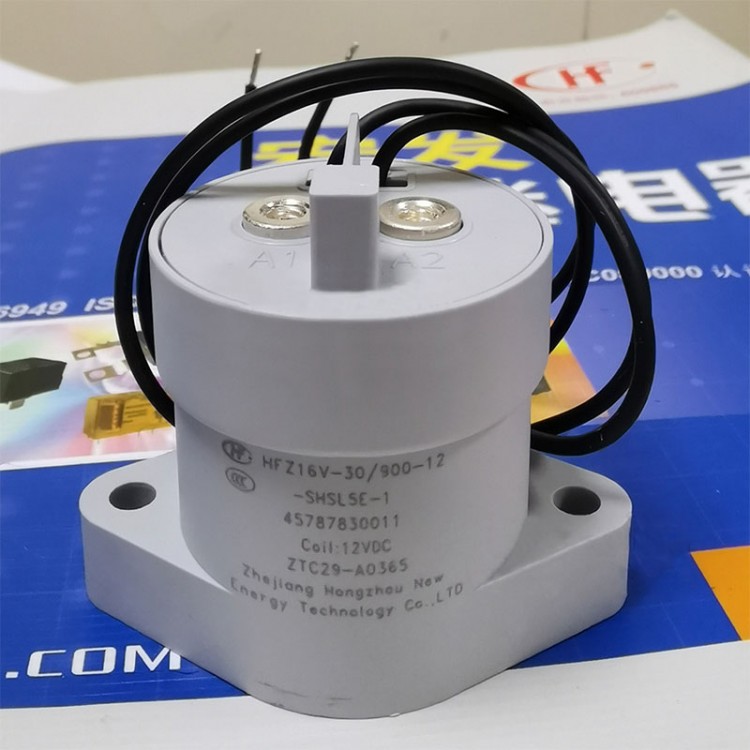

HFZ16V-30/900-24-SHSL5E-1 24V DC Relay High Quality Epoxy Sealing Nonpolarized Series DC Relay

HFZ16V-30/900-24-SHSL5E-1 24V DC Relay High Quality Epoxy Sealing Nonpolarized Series DC Relay

Features:
- Rated 30A contactor switch capability
- No polarity requirements for the connection of contactor and coil
- The epoxy resin encapsulated sealing structure can work in explosive or harmful environments, and the coils and contacts will not be oxidized and polluted.
- Pre-charging and other application
- Small in size and light in weight

Specification:
Contactor:
- Contactor type: 1SH
- Contact resistance: ≤3mohm (at 10A)
- Rated current: 30A
- Rated load voltage: 12 ~ 900VDC
- Maximum breaking current: 300A 320VDC (over 1 time)
- Maximum switching power: 96kW
- Minimum load: 1A 12VDC
- Standard constant current: 30A (10mm2)
- Short-time overload current: 40A 18min (10mm2); 50A 6min (10mm2); 90A 30s (10mm2)
- Mechanical durability: 2 x 10 x 10 x 10 x 10 x 10 times
- Electrical durability: 1 x 10 x 10 x 10 x 10 times (30A 450VDC, resistive load, 23℃, 1s for connection and 9s for disconnection)

Performance Parameter:
- Isolated resistance:
  For disconnected contactors: 1000Mohm (1000VDC)
  For contactor and coil: 1000Mohm (1000VDC)
- Dielectric withstand voltage:
  For disconnected contactors: 2200Vrms
  For contactor and coil: 2200Vrms
- Rated voltage: 24VDC
- Action time (ms): ≤30ms
- Releasing time (ms): ≤10ms
- Corresponding bounce time (ms): ≤5ms
- Impulse: 196m/s2
- Vibration: 10 ~ 500Hz 98m/s2
- Temperature: -40 ~ 85℃
- Humidity range: 5 ~ 85%RH
- Protection level: IP67
- Lead-out end type: M4 internal thread
- Size: 53 x 36 x 39.5mm
- Weight: 110g

Coil Specification:
- Rated voltage (VDC): 24
- Working voltage (VDC): 18 ~ 32
- Maximum voltage (VDC): 32
- Action voltage (VDC): ≤18
- Releasing voltage (VDC): ≥2
- Coil resistance x (1±7%): 152
- Average hold current (A): 0.158
- Steady state power consumption (W): about 3.8

Precaution:
- In order to suppress the reverse electromotive force of relay coil, it is recommended to parallelize bidirectional TVS diodes or varistor with the coil (the voltage is 1.5-2 times of the rated voltage). If diodes are used, the release time of the relay will be greatly prolonged, which may lead to a decline in the cut-off performance. Please note.
- The rated values in the contact parameters are all values under resistive load. When using an inductive load with L/R>1ms, please install a surge current protection device for that load. Without taking measures, it may lead to a decrease in electrical lifespan and poor continuity. Please consider sufficient margin space in the design.
- This electrical appliance is a high-voltage DC switching device, which may cause high-temperature failure when the service life and load capacity specified in the manual are exceeded. Therefore, a protective circuit that can cut off the load in emergency situations should be used. As a product with limited lifespan, it should be replaced in a timely manner to ensure safety.
- Please avoid adhering foreign objects such as grease to the outgoing end. Please use connecting wires with a size of 10mm2 or above. When installing the load end, ensure that the power cord is tightly attached to the outgoing end. Please install and tighten in the order of flat washers, spring washers, and nuts, or directly use self-locking nuts. Contamination or incorrect connection sequence at the lead-out end may cause severe overheating and lead to melting of the insulation layer of the connecting cable.
- To prevent looseness during product installation, please use a ring. Please control the locking torque within the recommended range. If it exceeds the range, it may cause damage to the casing. When using screws, ensure that the thickness and strength of the ring are sufficient, otherwise it may deform and break the shell.

Package Included:
- 1 x 24V DC Relay
