• HG-C1400 CMOS Type Micro Laser Distance Sensor Micro Laser Measurement Sensor Displacement Sensor
  • HG-C1400 CMOS Type Micro Laser Distance Sensor Micro Laser Measurement Sensor Displacement Sensor

HG-C1400 CMOS Type Micro Laser Distance Sensor Micro Laser Measurement Sensor Displacement Sensor

Availability: In stock, usually dispatched in 1 business day

  • Price:$209.00
  • Price in reward points: 2090 Reward Points: 21
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $204.82 $200.64 $194.37 $186.01 Contact US
Quantity:

HG-C1400 CMOS Type Micro Laser Distance Sensor Micro Laser Measurement Sensor Displacement Sensor


Item Specifications

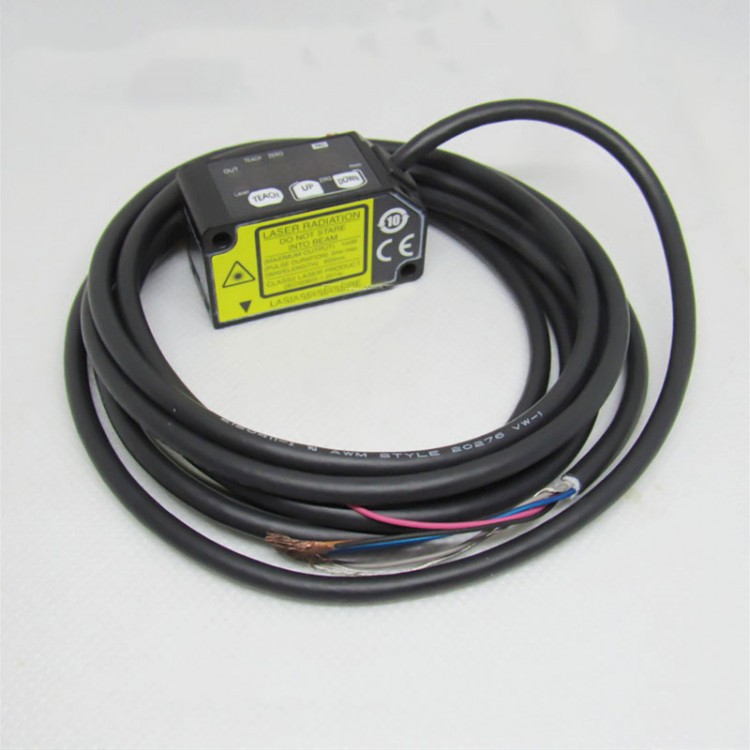

Product Number HG-C1400
Part Number HG-C1400
Applicable standard EMC Directive Compliance, FDA Standard
Measurement center distance 400 mm 15.748 in
Measuring range ±200 mm 7.874 in
Repeatability 300 μm 11.811 mil (Measuring distance 200 to 400 mm 7.874 to 15.748 in)
800 μm 31.496 mil (Measuring distance 400 to 600 mm 15.748 to 23.622 in)
Linearity ±0.2 % F.S. (Measuring distance 200 to 400 mm 7.874 to 15.748 in)
±0.3 % F.S. (Measuring distance 400 to 600 mm 15.748 to 23.622 in)
Temprerature characteristics 0.03% F.S./℃
Light source Red semiconductor laser Class 2 [JIS/IEC/GB/FDA (Note) ]
Max. output: 1 mW
emission peak wavelength: 655 nm 0.026 mil
(Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated June 24, 2007, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration).
Beam diameter ø500 μm 19.6851 mil approx.
(Note) This is the size in the measurement center distance. These values were defined by using 1/e2 (13.5% approx.) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value.
Supply voltage 12 to 24 V DC ±10 %, Ripple P-P 10 % or less
Current consumption 40 mA or less (at 24V DC supply voltage)
65 mA or less (at 12V DC supply voltage)
Note : Specifications have been changed from shipment in August, 2016. For shipment before July 2016 : 40 mA or less (at 24 V DC supply voltage), 60 mA or less (at 12 V DC supply voltage)
Control output NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (Between control output to 0V)
- Residual voltage: 1.5 V or less (At 50 mA sink current)
- Leakage current: 0.1 mA or less
Control output:Output operation Either Light-ON or Dark-ON
Control output:Short-circuit protection Incorporated (Auto reset type)
Analogue output : Analog voltage output • Output range: 0 to 5 V (at alarm: +5.2 V)
• Output impedance: 100Ω
Analogue output : Analog current output • Output range: 4 to 20mA (at alarm: 0mA)
• Output impedance: 300Ω or less
Note : Analog current output has been added from shipment in August 2016.
Response time Switchable between 1.5 ms / 5 ms / 10 ms
External input NPN non-contact input
- Input conditions
Invalid: +8 to +V DC or Open
Valid: 0 to +1.2 V DC
- Input impedance: 10 kΩ approx.
Pollution degree 2
Operating altitude 2,000 m 6561.680 ft or less
Protection IP67 (IEC)
Ambient temperature -10 to +45 ℃ -14 to 113 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to 140 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 ℓx or less at the light-receiving face
Vibration resistance 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Cable 5-core composite cable, 2 m 6.5617 ft long
Cable extension Extension up to total 10 m 393.701 ft is possible with 0.3 mm2, or more, cable.
Material Enclosure: Aluminum die-cast
Front cover: Acrylic
WeightNet weight: 35 g approx. (without cable), 85 g approx. (including cable)
