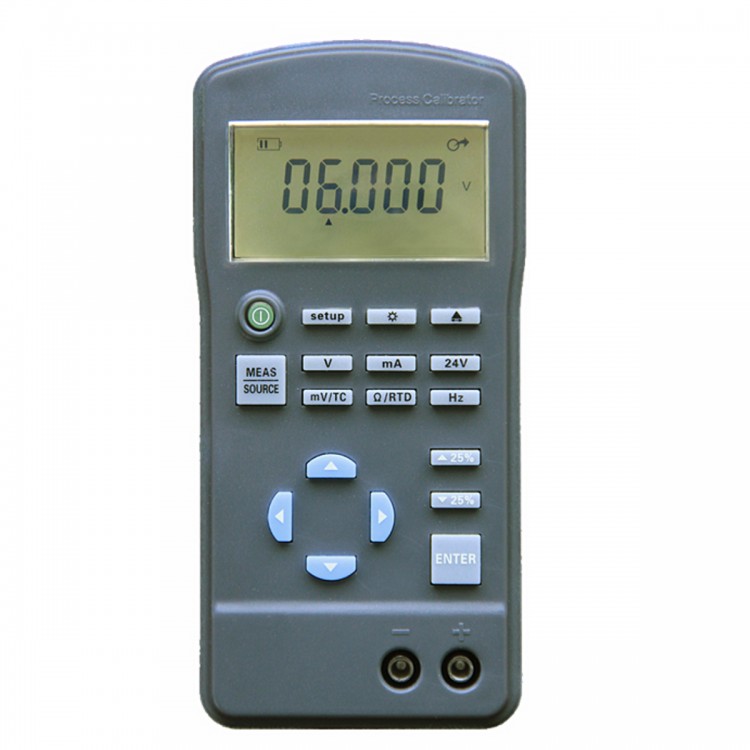

HG-S309 Signal Generator 4-20mA / 0-10V / mV Thermocouple Voltmeter Current Source Calibrator

Availability: Out Of Stock

  • Price:$92.63
  • Price in reward points: 926 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $90.78 $88.92 $86.15 $82.44 Contact US
Quantity:

HG-S309 Signal Generator 4-20mA / 0-10V / mV Thermocouple Voltmeter Current Source Calibrator


Description:
- This instrument has all the basic functions of the corresponding key, enter directly. Two connector terminals no longer have to rush to change jack exclude wrong jack plug lead instrument burned troubles!
- The instrument of the performance indicators in the data speak truthfully labeled, never doped water. Tagging of science, it is easy to calculate the accuracy of the file or the error is. Specific performance indicators see performance table. Our commitment: We will not do for the benefit of vacuity index, cheating customers do.

Specification:
- Name: HG-S309 signal generator
- Voltage: 3.7V
- Lithium battery capacity: 2000mah
- Packing size: 22.5 * 16 * 5.5cm
- Weight: 0.5kg

Note: This product has a built-in battery


Output signal:

1, the voltage signal (0-11V)
2, mV signal (0-110mV)
3, the current signal (0-24mA)
4, resistance signal (20-400 ohms)
5, the frequency signal (100-10KHz)
6, hot dual (EKBRSTJN)
7, thermal resistance (Pt100 Cu50)

Measurement signal:
1, the voltage signal (0 ~ + -30V)
2, mV signal (0 ~ + -150mV)
3, the current signal (0 ~ + -30mA)
4, resistance signal (0-900 ohms)
5, the frequency signal (0-10KHz)
6, hot dual (EKBRSTJN)
7, thermal resistance (Pt100 Cu50)
