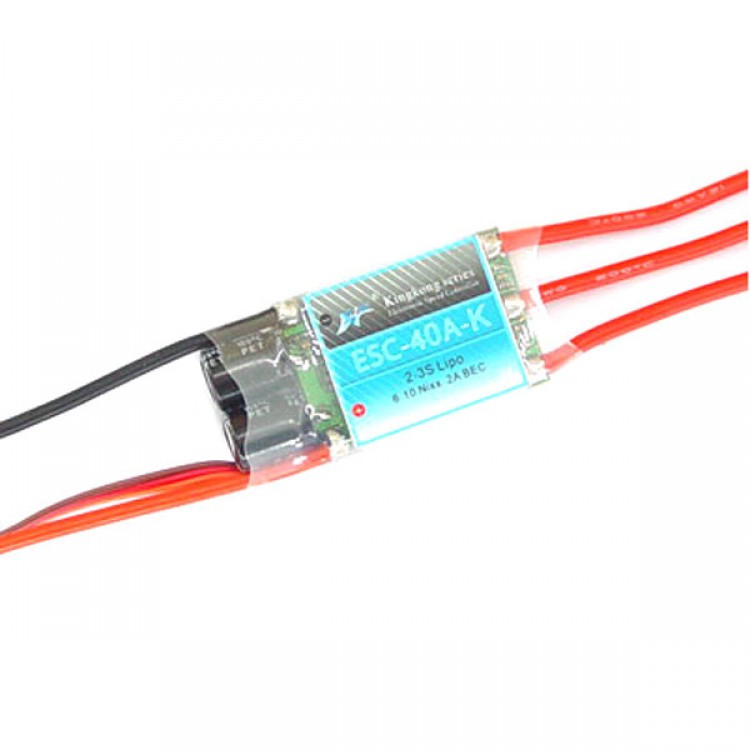

Hifei KingKong Series 2-3S Electric Speed Control With Data Logger ESC-40A-K

Hifei KingKong Series 2-3S Electric Speed Control With Data Logger ESC-40A-K
Descriptions:
- cutoff types(soft cutoff/hard cutoff)
- Programmable brake type(disable/soft brake/hard brake)
- Time advance programmable (low/standard/high)
- Programmable current limiting(very sensitive/standard/insensitive/disable)
- Governor mode(low rpm governor/high rpm governor)
- Programmable startup type(very soft start/soft start/fast start)
- Thermal Protection(100 centigrade)
- Apply to most of inrunner and outrunner brushless motors.
- No complex programming, auto adapt work mode.
-  A LED (flashes) indicates full throttle.
-  Runs motor in forward or reverse by swapping any two motor wire connections.
-  Safe “power on” arming program ensures motor will not accidentally turn on.
-  Auto shut down when signal is lost or radio interference becomes severe for more than 3 seconds .After radio connection has been reestablished, moving the throttle to the lowest position can restart the motor.
-  The ESC is disabled when the voltage is over 15v at power-on.

Specifications:
- Type: ESC-40A-K
- Size: 52mm X 26mm X 10mm
- Weight: 25g
- Constant Current:40A (50A burst)
- BEC: Yes, 2A
- Input: 2 to 3 Li-Po, or 4 to 10 Ni-MH/Ni-Cd
- Data logging function: YES
- Programing methods: Program card/Program box/USB Linker capable (not included)

Down load:

- Setting up       -user manual
