Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $567.02 | $555.45 | $538.09 | $514.95 | Contact US |
Features:
- Material: Aluminium Alloy
- Recommend battery: 3S battery 450mah x 2( not includedd)
- Motor: Brusheless motor
- Program download: SWD/Serial port download
- Display screen: 0.96inch OLED
- Button: 1
- Switch: Metal self-lock button
Difference for the 4 kinds of blocks
Type | Single sided Standard | Single sided High-end | Single Piont Standard | Single Piont Hi-end |
Main controller | STM32F103C8T6 | STM32F103RCT6 | STM32F103RCT6 | STM32F103RCT6 |
Size(mm) | 100x100x85mm | 100x100x100 | 122x122x122 | 125x125x125 |
Weight(g) | 540 | 700 | 1000 | 1110 |
Function | Single sided balance | Reversible unilateral single sided balance | Single Piont/Single side Blance | Reversible unilateral Single Piont/Single side Blance |
Brake System | No | 1 set brake | No | 3 set brake |

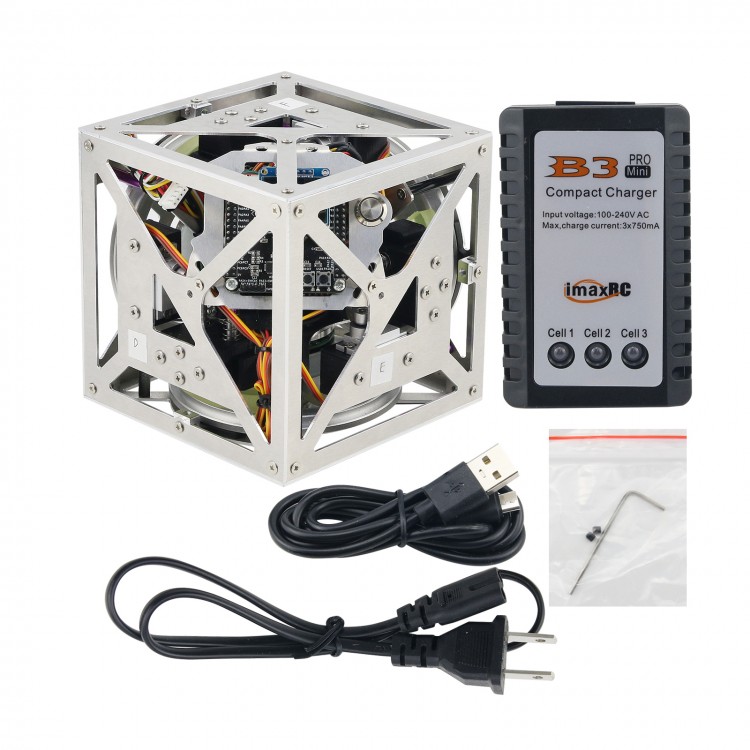

Single Sided and Single Piont Balance Block Package list:
- Aluminum frame x1
- Hexagonal nut x8
- High current self-locking metal switch button x1
- STM32F103RCT6 Controller boardx1
- Driver board x 1
- OLED Display screenx1
- Photoelectric encoder brushless motor x1
- Flange coupling x1
- Momentum wheel x1
- Data cable x1
- some Copper column screw connector
- High torque servo x 1
- Linear bearing x 2
- Custom brake pad x1
- Bluetooth module x 1
