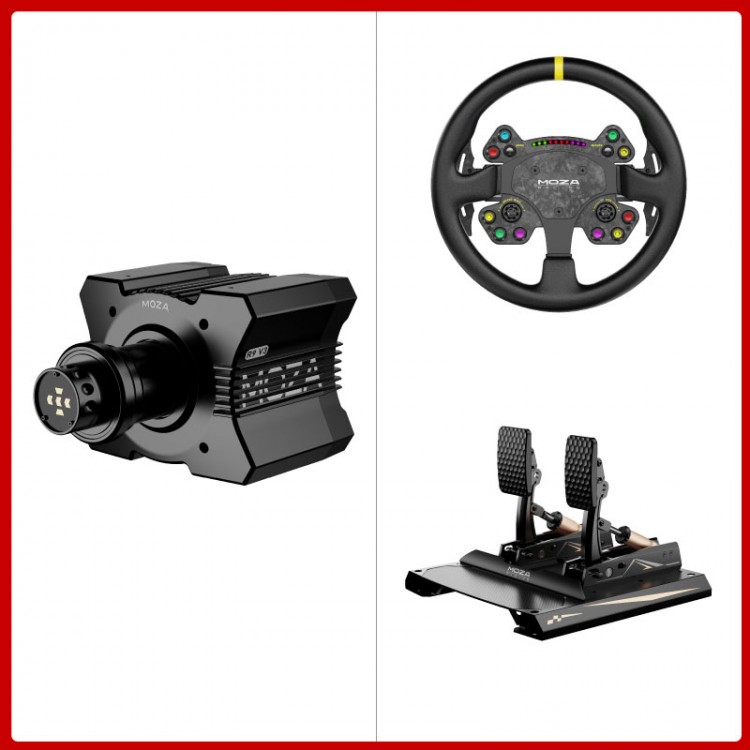

MOZA RACING R9 V3 9Nm Direct Drive Wheel Base + 13-Inch RS V2 Steering Wheel + CRP2 2-Pedal Set

MOZA RACING R9 V3 9Nm Direct Drive Wheel Base + 13-Inch RS V2 Steering Wheel + CRP2 2-Pedal Set

R9 V3 9Nm DD Wheel Base:
1. Differences between the R9 V2 and R9 V3 Wheel Bases:
* The R9 V3 supports iRacing's 360Hz mode and features a 21-bit magnetic encoder with a resolution of up to 2.09 million counts.

2. Features:
Professional True Servo with 9Nm of Torque
* It delivers a sustained and stable output of 9Nm torque, faithfully replicating the steering resistance from consumer vehicles to race cars. It finely transmits all driving details, meeting the gaming and training needs of most racing enthusiasts.

21-bit Magnetic Encoder & 280MHz High-Performance Processor
* 2.09 Million-Level Force Feedback Resolution: The 21-bit magnetic encoder divides each full rotation into 2,097,152 steps, offering ultra-refined control.
* With angle detection precision up to 0.00017°, the response is more accurate and the steering feel is smoother.
* It reproduces rich and detailed force feedback sensations with high realism.

High-Performance Servo Motor
* High torque density, compact yet powerful: Featuring a high slot fill ratio design, magnetic core with excellent conductivity, and strong neodymium magnets, it ensures lower power consumption and higher output.
* Multi-slot, multi-pole design with ultra-low torque ripple: 18-slot, 16-pole structure provides reduced torque ripple and superior vibration damping, making steering feel smoother and silkier.
* Wide High-Torque Speed Range: With a low back-EMF design, it maintains high torque even at high speeds, enabling fast direction corrections while preventing torque dropouts.

NexGen Force 4.0 Feedback System
* More detailed and refined force feedback lets you clearly perceive curbs and road surface bumps.
* The vehicle's center of gravity shift and tire slip response are more sensitive and rapid.
* A newly developed cogging torque compensation algorithm provides smoother steering feedback.
* Force Feedback Interpolation Algorithm: It eliminates force spikes during sudden feedback changes, creating a more natural and fluid experience.
* Game Feedback Decoupling: It deconstructs game force feedback into separately adjustable components, allowing for greater customization.
* Innovative Road Surface Perception Equalizer: Scene-based vibration tuning maximizes useful feedback while filtering out excess noise, delivering immersive and realistic driving sensations.
* Self-Developed Force Feedback Curve Adjustment: It allows the base force feedback output to have a nonlinear relationship with the game commands, amplifying dynamic force feedback that aids driving while weakening interfering forces. This helps drivers more easily detect vehicle loss of control, improves driving tolerance, and lets them confidently push the limits.

Intelligent Motor Temperature Control System
* It monitors the temperature of the motor and electronic components in real time, ensuring stable operation of the device even during endurance races.

High-Strength Aluminum Alloy Body
* Using automotive-grade coating and laser processing, it delivers a premium metallic texture.

Professional Conductive Slip Ring — Stable and Durable
* It securely connects the base and steering wheel, enabling high-speed rotation with a lifespan of up to 5 million revolutions. The data comes from MOZA laboratory durability tests.
* Stable performance, durable and reliable.

Mobile App Cloud Control
* Users can adjust the base, steering wheel, pedals, and other devices remotely. Parameter tuning during races can be done without pausing or switching windows. Main operations in the Pit House can be completed via smartphone or tablet.

MOZA Pit House – Professional Sim Racing Control Center
* MOZA's independently developed PC-based control center allows users to monitor the status of all devices within the MOZA ecosystem. Users can quickly adjust parameters and launch games without repetitive setup.
* Quick Tuning for the MOZA Ecosystem: Pit House enables function checks and personalized quick tuning for all MOZA devices. Users can launch games directly, apply one-click configurations, and access telemetry data. It offers a user-friendly interface and comprehensive functionality.
* Beginner-Friendly: It provides one-click scenario-based presets tailored to different racing car types and game titles, including official presets and exclusive setups from professional sim racers. Beginners can start racing immediately without a steep learning curve.
* 19 Force Feedback Tuning Parameters for a Custom Feel: It offers 19 adjustable parameters such as mechanical friction and road feel sensitivity. The open tuning platform allows players to create their ideal steering feel while learning about tuning and improving their skill level.
* Proprietary Road Surface Perception Equalizer: It enables precise, scenario-based adjustment of road texture vibration. It retains helpful feedback while filtering out excess vibrations, delivering an extraordinary immersive driving experience.
* Proprietary Force Feedback Curve Adjustment: It allows the base's force output to follow a non-linear relationship with in-game commands. It amplifies dynamic feedback beneficial to driving, dampens distracting forces, and helps the driver better detect vehicle instability—enhancing control near the limits.
* Detailed Steering Wheel Control: Through MOZA Pit House, users can finely tune settings such as dual-clutch paddles, knobs, joysticks, and shift indicator lights, significantly improving steering wheel handling.
* Precision Pedal Adjustment: On the pedal setup page, users can finely adjust throttle, brake, and clutch travel, output curves, and pressure response points. This helps players quickly develop proper braking techniques and effectively improve lap times.

Integrated Design Saves Space
* Using an integrated motor, it is compact and portable.
* It supports professional cockpits, integrated brackets, and desktop clamp installation, providing more installation options.
* Note: Desktop clamp installation requires purchasing the desktop clamp separately.

3. Specifications:
* Supported Platform: PC
* Drive Type: Direct Drive
* Maximum Steering Angle: 90° to 2700°
* Housing Material: Aluminum Alloy
* Maximum Torque: 9 Nm
* Maximum Power: 180W
* Input Voltage: 110V~220V AC → 36V DC
* Maximum USB Refresh Rate: 1000Hz
* App Functionality: Supported
* Quick Release: Supported
* Ports: Power, Data, Pedals, Display, Shifter, Handbrake, Emergency Stop Switch
* Mounting Method: Four bottom mounting holes; dedicated bracket supports angle adjustment and side mounting; desktop clamp supported
* Firmware Upgrade: Supported
* Desktop Clamp: Optional
* Side Mounting: Optional
* Emergency Stop Switch: Optional

4. Supported Games:
* For Assetto Corsa
* For Assetto Corsa Competizione
* For Forza Horizon 4 (Microsoft Store)
* For Forza Horizon 5
* For Euro Truck Simulator 2
* For American Truck Simulator
* For RaceRoom Racing Excperience
* For F1 2018
* For F1 2019
* For F1 2020
* For F1 2021
* For F1 22
* For F1 23
* For rFactor 2
* For Project CARS 1
* For Project CARS 2
* For Project CARS 3
* For WRC G
* For WRC 9
* For WRC 10
* For Dirt Rally
* For Dirt Rally 2.0
* For Dirt 4
* For iRacing
* For Wreckfest
* For KartKarft
* For Richard Burns Rally
* For Live For Speed
* For BeamNG.Drive
* For MudRunner
* For CarX Drift Racing Online
* For Automobilista 2

13-Inch RS V2 Steering Wheel:
1. Features:
* Leather Grips: Crafted from carefully selected genuine leather with exquisite stitching, the RS V2 grips deliver a premium feel along with superior durability and comfort.
* 13-Inch Standard Racing Rim: With dimensions matching a real racing wheel, the 13-inch rim offers a versatile and immersive sim racing experience that closely replicates real-world driving.
* Forged Carbon Fiber Base Plate & Magnetic Shifter Paddles: Manufactured using forged carbon fiber, the same material found in high-end hypercars, the base plate and paddles combine strength with a sleek, modern look. The RS V2 features programmable mechanical buttons with a satisfying tactile feel, customizable RGB backlighting in 8 colors, dual universal joysticks, and 20-segment rotary dials—giving racers complete control at their fingertips.
* Customized Quick Release: MOZA's industry-leading quick-release system, inspired by real-world motorsport technology, allows racers to swap wheels quickly and securely, ensuring a stable and reliable connection every time.
* RGB Sequential RPM / Shift Light Indicator: The RS V2 includes a sequential-flow RGB shift light system with 10 customizable LEDs. Choose from 7 colors to create a visual experience that matches your racing style.
* Wireless & Wired Communication Support: Compatible with all MOZA wheel bases, the RS V2 uses wireless technology for the R21, R16, and R9 bases, and wired slip-ring communication for the R5 base—ensuring broad compatibility across the MOZA ecosystem.
* Dual-Clutch System with Magnetic Shifters: Equipped with magnetic shift paddles, the RS V2 also features a dual-clutch system that can be toggled between single and dual-clutch modes—ideal for advanced sim titles like iRacing and the F1 series.
* Ergonomic Layout: Inspired by actual race car design, the RS V2 boasts an ergonomic layout with intuitive positioning, giving drivers quick, easy access to essential controls—optimizing performance and responsiveness during competitive races.

2. Specifications:
* Size: 13 Inches
* Grips: Genuine Leather
* Face Plate Material: Forged Carbon Fiber
* Back Plate Material: Aluminium
* Shifter Paddles Material: Forged Carbon Fiber
* Shifter Paddles: Magnetic
* Buttons: 10
* Button Light: Yes
* Choice of Colors: 8
* Button Type: Mechanical Buttons
* Universal Joysticks: 2
* Rotary Encoders: 2
* MOZA Pit House Control: Support
* Release Method: MOZA Quick Release
* Quick Release Material: Aluminium
* Shift Light Indicator: Yes
* Shift Light Customization: Yes
* Shift Light Color Options: 7
* Shift Light Mode Switch: Yes
* RPM Indicator: Yes

CRP2 2-Pedal Set:
1. Features:
* Minimalist Design: The CRP2 sim racing pedals feature a minimalist design with smooth curves and a sophisticated black-and-gold color scheme that exudes competitive energy. Hexagonal design elements on the pedal face symbolize stability, balance, and versatility. Concealed wiring, springs, and screws contribute to a clean, professional appearance.
* CNC Aerospace-Grade Aluminum Construction: Key components are CNC-machined from aerospace-grade aluminum alloy to exacting standards and anodized for a sleek, durable finish. Additional components are made using precision die-casting and coated with automotive-grade finishes to ensure strength and quality. The base is constructed from high-strength steel to endure the intense forces of competitive racing.
* Carbon Fiber Heel Plate: The 3K twill carbon fiber heel plate adds a sporty touch while offering moderate surface friction for stable and precise heel placement during high-intensity sessions.
* 200KG Load Cell Sensor: Equipped with a 200 kg pressure sensor, the brake pedal covers nearly the full braking force range found in real race cars. This provides a strong connection between muscle memory and applied braking force.
* 15-bit High-Precision Angle Sensor: Using a patented sensor fusion algorithm, the CRP2 combines a 15-bit angle sensor with the load cell to deliver exceptional accuracy and fine control of braking force—maximizing responsiveness and enhancing muscle memory.
* 125 Brake Pedal Feel Combinations: The brake features a damping block system with hardness options of 55, 70, 80, and 98, enabling 125 different pedal feel combinations. This adaptability supports simulation of a wide range of vehicles, from standard road cars to F3 race cars.
* Versatile Damping Block Configuration: Eight damping blocks can be configured in multiple combinations to simulate various race car brake profiles. Choose from suggested configurations or create a custom setup to match your driving style.
* Adjustable Throttle: The throttle features a spring-enclosed design and a precision guide rod for a silky-smooth pedal feel. It includes two springs with different resistance levels and allows for continuous force adjustment to simulate throttle feedback from a wide range of vehicles.
* Quiet and Smooth Operation: An enclosed structure combined with a high-polish steel shaft ensures quiet, smooth pedal motion. Soft end-point cushions provide effective noise reduction during use.
* Tool-Free Adjustment: A patented tool-free design allows quick adjustments to damping blocks, springs, and pedal forces—no wrenches or tools required. Ideal for switching between vehicle profiles.
* Adjustable Travel and Angle: Each pedal—brake, throttle, and clutch (optional)—offers adjustable travel and angle, giving you full control over pedal feel and ergonomics.
* Adjustable Position and Height: Pedal spacing, footrest position, and pedal face height (adjustable up to 30 mm) are all customizable, supporting various foot sizes and user preferences.
* Ergonomic Design: The pedal surfaces follow a biomimetic curve that conforms to the foot arch, enhancing comfort and enabling more effective force application.
* Enhanced Compatibility: When paired with the Xbox-compatible ESX wheel base, the CRP2 pedals can be connected directly for Xbox use. They also support direct connection to a PC or the base.
* Professional Software Support: MOZA Pit House software allows you to monitor pedal status, configure pedal travel and signal output curves, adjust electronic travel, and view real-time signal output curves—unlocking the full potential of the hardware.
* Engineered for Endurance: Each CRP2 pedal has been tested for over one million press cycles, ensuring long-term durability and performance for even the most demanding sim racers.
* Supports Inverted Mounting: The CRP2 pedals support inverted mounting to replicate the layout and ergonomics of real road cars. This can be done with optional components or custom brackets.
* Optional Performance Kit: The Performance Kit includes 10 springs, various damping blocks, and a metal block. When combined with the original damping blocks, it offers 1,764 possible pedal feel combinations—enabling near-instant brake response and mimicking the hard brake feel of F1 and F2 cars.
* Performance Customization Options: Fine-tune your driving experience with various pedal feel and travel configurations. The spring offers a linear braking feel, while the aluminum block minimizes pedal travel for quicker response.

2. Specifications:
* Pedal Body Material: Aerospace-grade aluminum alloy
* Heel Plate Material: 3K twill carbon fiber
* Base Material: High-strength steel
* Load Cell Sensor Range: 0–200kg
* Brake Sensor: Load cell sensor and angle sensor
* Angle Sensor Resolution: 15-bit (32768 PPR)
* Brake Pedal Feel: 115 standard adjustments, 1764 optional configurations
* Throttle Adjustment: Two spring options with infinite adjustment
* Clutch Adjustment: Two spring options with infinite adjustment (Optional clutch)
* Brake Travel Adjustment: 15–20°
* Throttle Travel Adjustment: 15–23°
* Clutch Travel Adjustment: 15–25° (Optional clutch)
* Pedal Angle Adjustment: 0–15°
* Pedal Face Height Adjustment: Up to 30mm
* Footrest Adjustment: Up to 30mm
* Pedal Curve Adjustment: Adjustable
* Real-time Pedal Output Display: Adjustable
* Pedal Pressure Engagement Point: Adjustable
* Pedal Surface: Biomimetic curved
* Inverted Mounting Kit: Optional

Packing List:
* 1 x Wheel base
* 1 x Steering wheel
* 1 x Set of pedals

Packaging Details:
* Weight: 17.95kg
