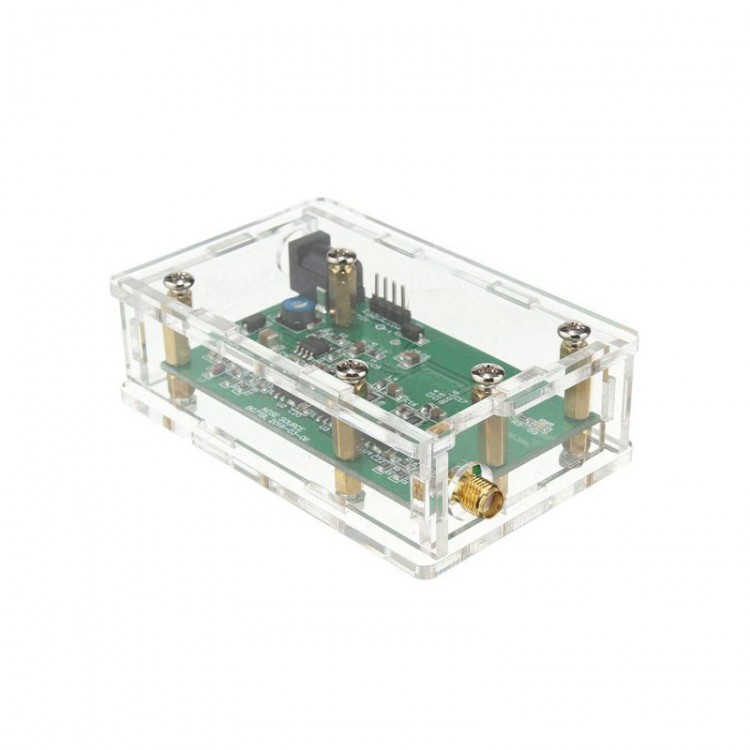

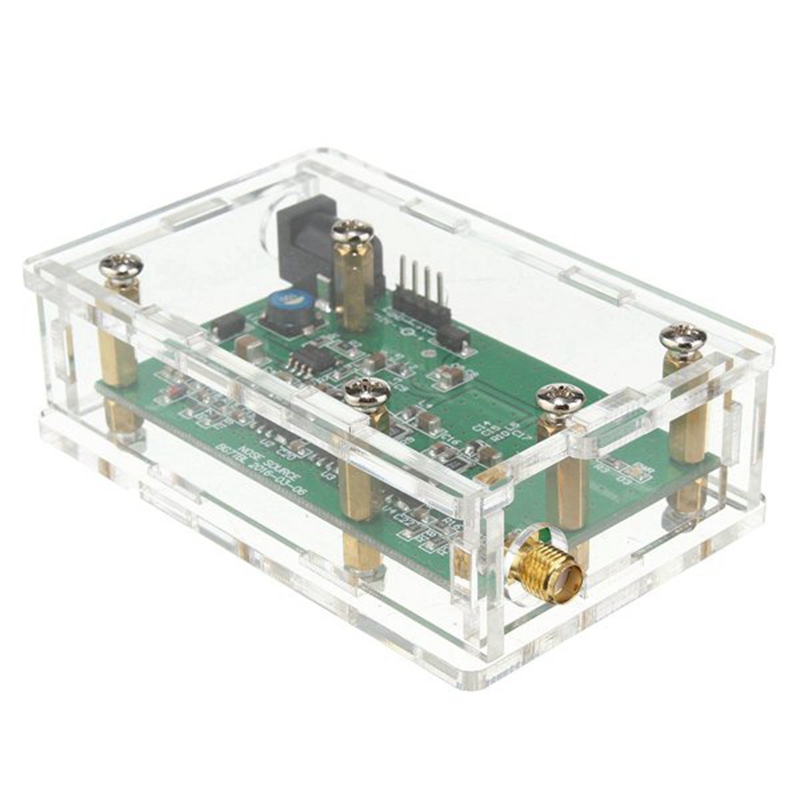

High Quality Noise Source Simple DC12V Power Supply Spectrum Tracking Generator with Acrylic Shell
Specification:
- Power supply: DC12V/0.3 - 1A
- Output interface: SMA
- Reference ENR: 0.1G/60DB; 0.5G/55DB; 1G/52DB; 1.5G/48DB; 2G/38DB; 2.5G/30DB; 3G/27DB; 3.5G/20DB
FAQ:
Q: What is this? What is it used for?
A: noise source, generator noise, used tracking generator, jam source
Q: What is the basic principle and how to use?
A: Using special voltage regulator tube, generating white noise and amplifying. Directly replace the tracking generator.
Q: What is ENR?
A: ENR (Excess Noise Ratio), noise sources over standard noise temperature T0 thermal noise. Here refers to the difference of the signal level of before after input noise source and.
Note:
- It is not assembled by default. If assembly is required, please leave a message before ordering.
Package Included:
- 1 x Noise Source
