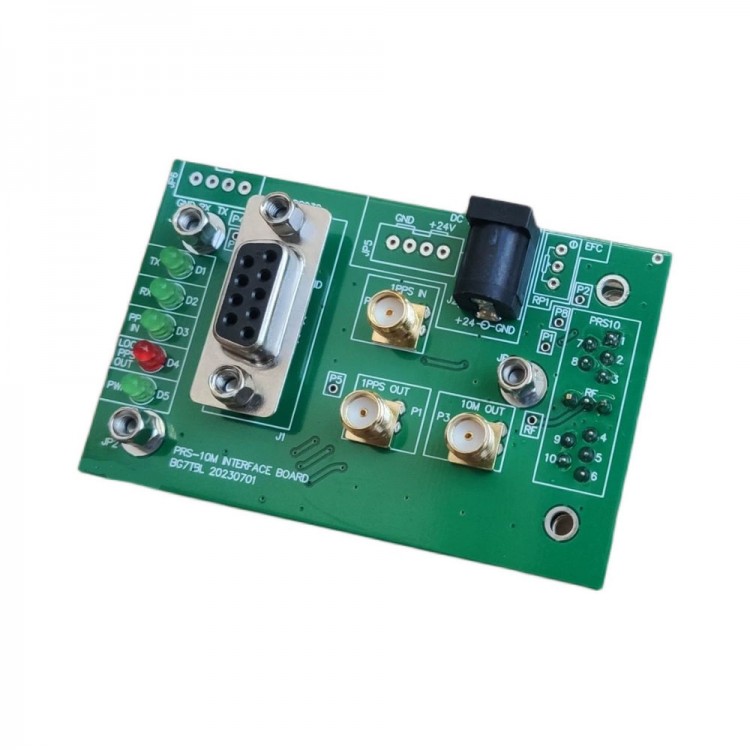

High Quality PRS-10M Rubidium Clock Interface Board PCBA with SMA Connector 1PPS Input and Output
Specification:
- Function: interface, power supply, communication, status indication, 1PPS input and output, 10M output
- Interface: for PRS-10M connection
- Power supply: DC5.5 - 2.1, or 4PIN interface onboard
- Communication: RS232 interface, the internal circuit board is directly connected to the PRS-10M serial port, external computer serial port, or the 4PIN interface of the circuit board.
- Status indication:
TX: RS232 TXD indication
RX: RS232 RXD indication
PPS IN: external 1PPS input
LOCK/PPS OUT: lock output; red light on for unlocked; red light off for locked; 1PPS output
PWR: power indication
- 1PPS input and output: SMA interface
- 10M output: SMA interface, directly output from PRS-10M
Package Included:
- 1 x Rubidium Clock Interface Board
Note:
- It is only a interface board, the rubidium clock is not included.
