High Speed Optical Shutter Electric Shutter Optical Path Blocker Maximum Frequency 50Hz

High Speed Optical Shutter Electric Shutter Optical Path Blocker Maximum Frequency 50Hz

Features:
- Shutter aperture diameter 8mm
- Minimum shutter opening time less than 10s
- The maximum frequency of the shutter switch is 50Hz, and the recommended maximum switching frequency is 30Hz
- The highest (laser) power of the shutter is 200mW, and the highest power density is 10W per square centimeters
- The shutter can be directly controlled by users. It can be loaded with a voltage of 3V-5V and a current greater than 50mA. The shutter is opened with a positive voltage, and the shutter is closed with no voltage or reverse voltage
- Equipped with multi-function shutter driving circuit, circuit with housing, with LCD display, standard 9-pin serial port interface, BNC female
- The driving circuit board is powered by 9V-12V DC voltage, and the current can be greater than 200mA. 9V DC power supply is included
- The driver board can be connected to a computer through a 9-pin standard serial port, or allows connection for logic circuits such as MCU, ARM, DSP, CPLD or FPGA through serial pins of TTL level
- All settings of the driver board are set through serial commands
- Equipped with host computer control software. The software interface integrates all serial port commands, which is convenient for users to directly set the driver board parameters and obtain related parameter information. Software source code is open to users
- The BNC female on the driver board is used to input control signals. Through the serial port command, you can set the driver board to respond to the high, low, rising or falling edge of this input signal
- Shutter case size is 41 x 41 x 15 mm. Fixing screw size is M4
- The shell size of the control circuit board is 110 x 85 x 41 mm

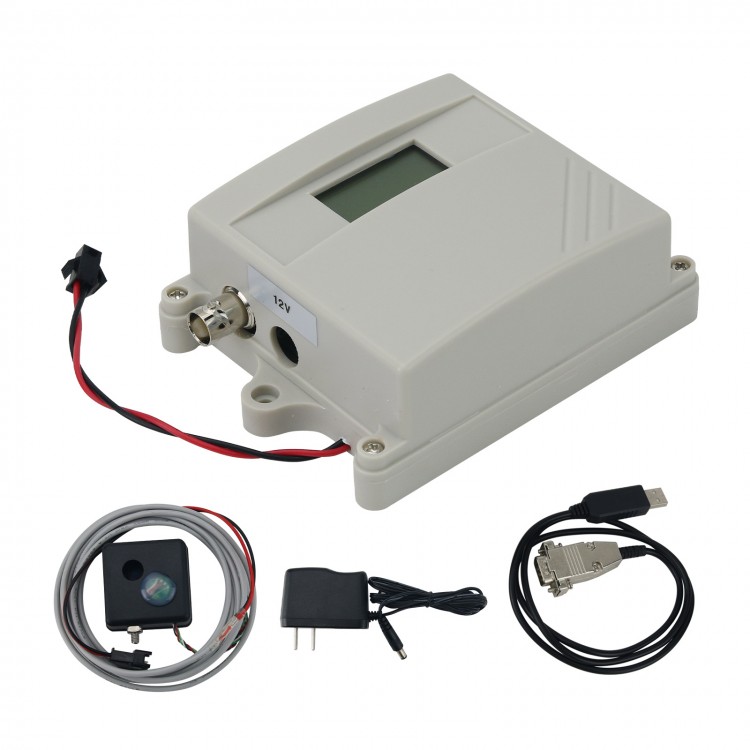

Package Included:
- 1 x Driving Circuit with Shell
- 1 x Shutter
- 1 x 9V Power Supply
