High Speed Voltage Comparator Module TLV3501 Same Phase Reversed Phase Comparison Rail-to-Rail
Description:
TLV3501 is a high-speed comparator. The waveform of input signal can be shaped by it and it can output a TTL level signal.
The TLV3501 has a fast 4.5ns propagation delay time. It is powered by single power supply 5V. It is perfect for low-voltage applications. It is ideal for high speed comparator circuits. Rail-to-rail outputs can drive CMOS or TTL logic directly. This module can shape the wide voltage range periodic signal as a front-end conditioning module for time domain measurement such as frequency and phase difference.
Specifications:
- Power Supply: 5V Single Power Supply
- Input Voltage: 10mVpp-5Vpp (Unipolar)
- Output Level: Rail-to-rail output can drive TTL/CMOS level directly
- Input Frequency: DC-120MHz
- Connector Type: SMA
- Input Impedance: Applicable 50Ω

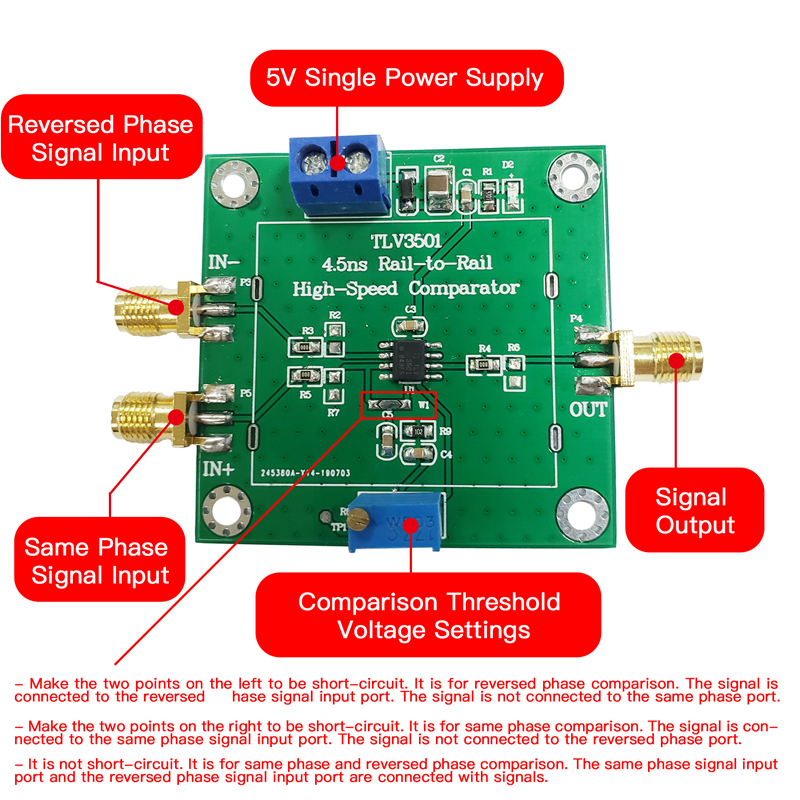

- 3 Comparison Ways: Same Phase Signal Comparison, Reversed Phase Signal Comparison, Same Phase Signal and Reversed Phase Signal Comparison

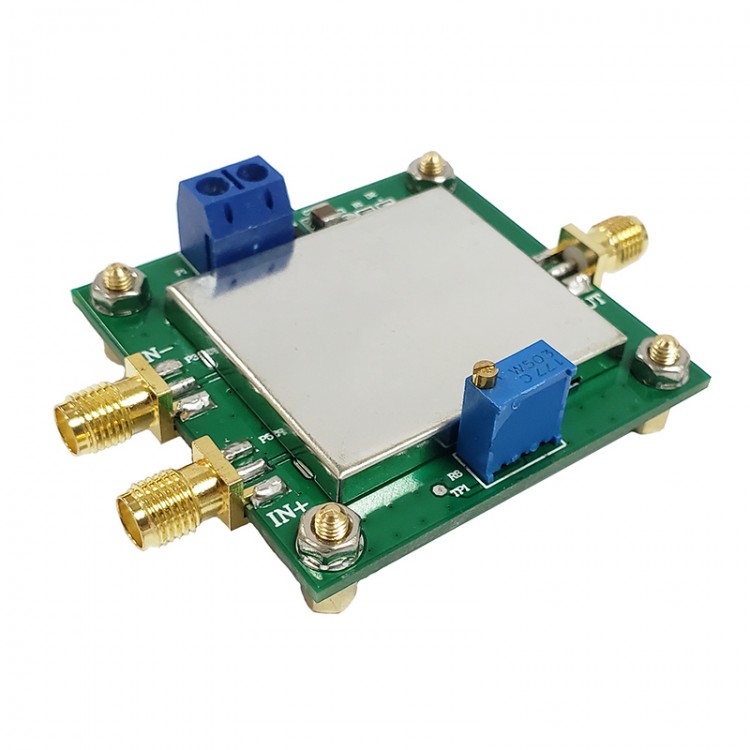

- With shield cover
- Module Size: 50 x 48mm
Package Included:
- 1 x Voltage Comparator Module

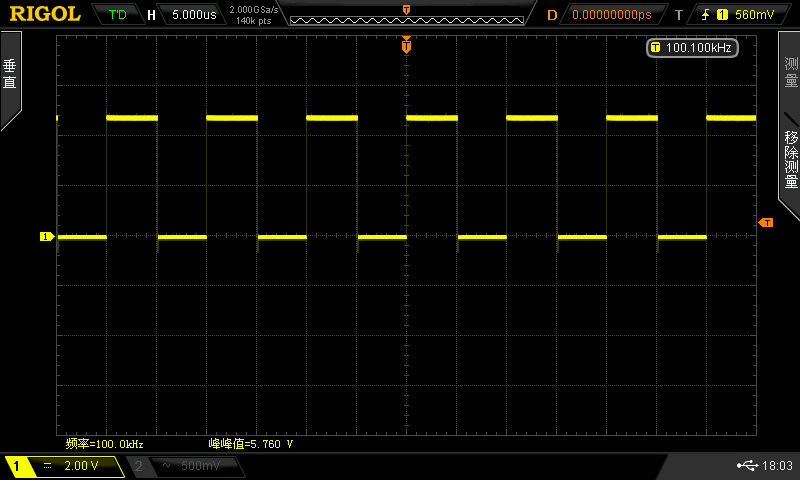

100K Square Wave Output:

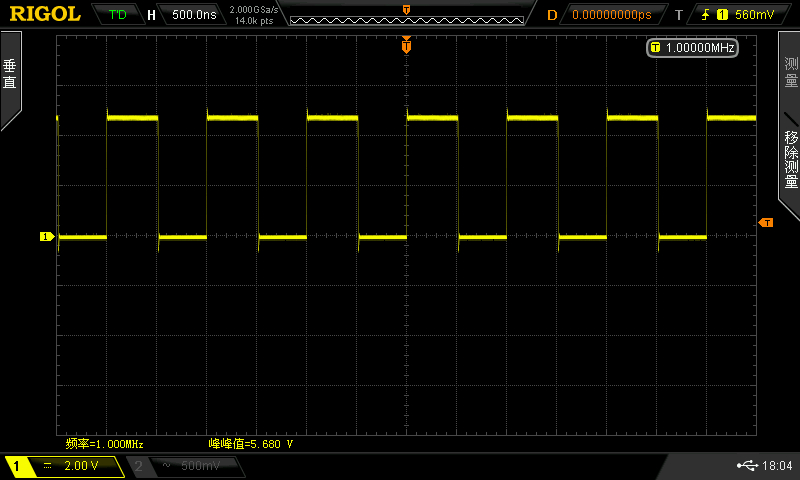

1M Square Wave Output:
10M Square Wave Output:

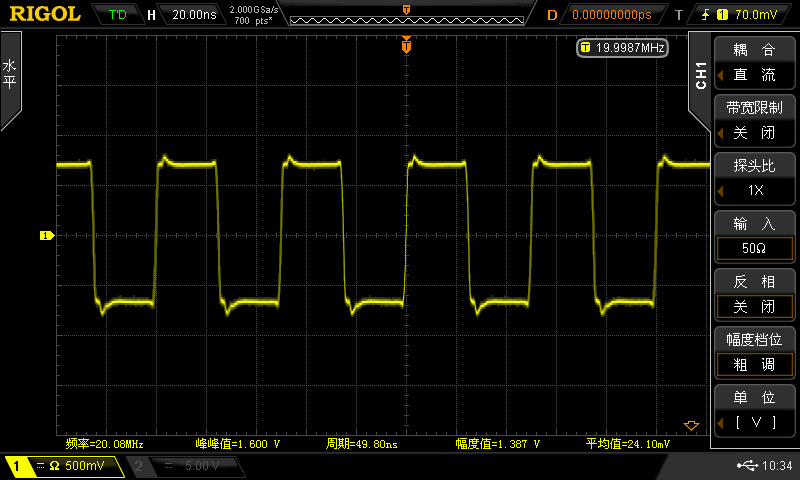

20M Square Wave Output:
50M Square Wave Output:

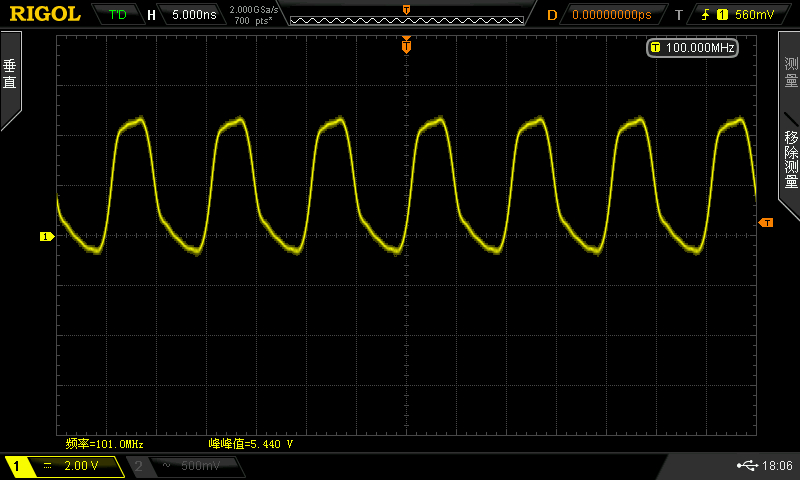

100M Square Wave Output:
