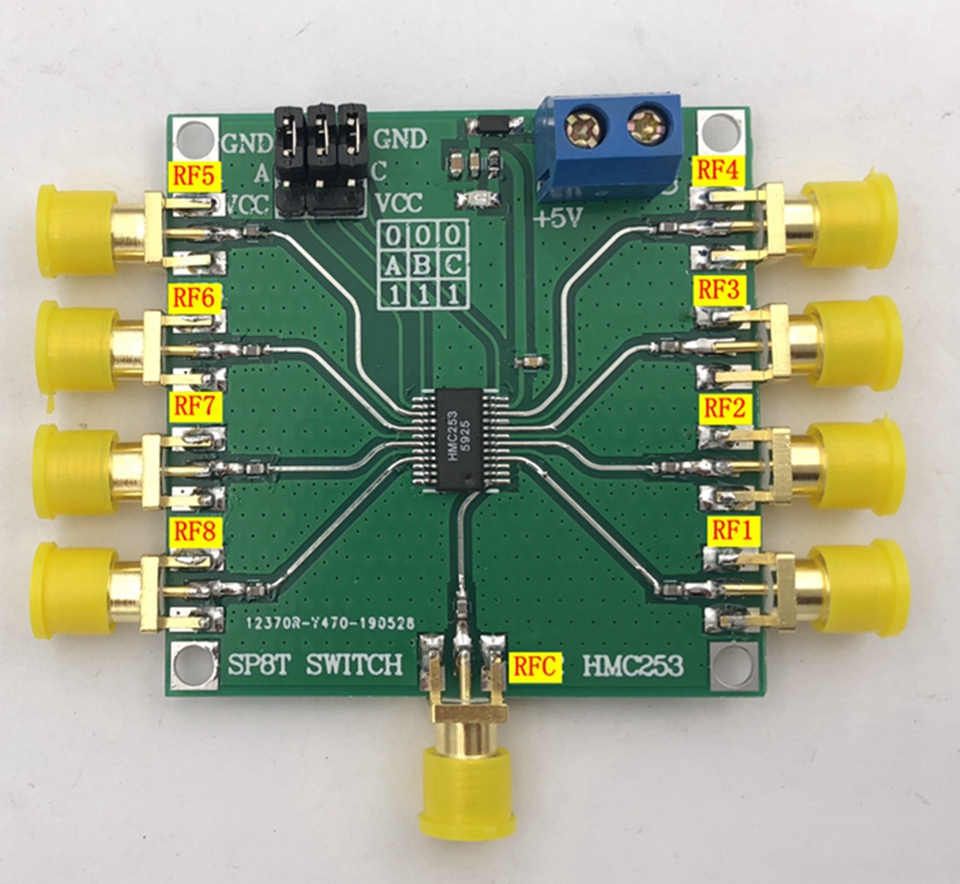

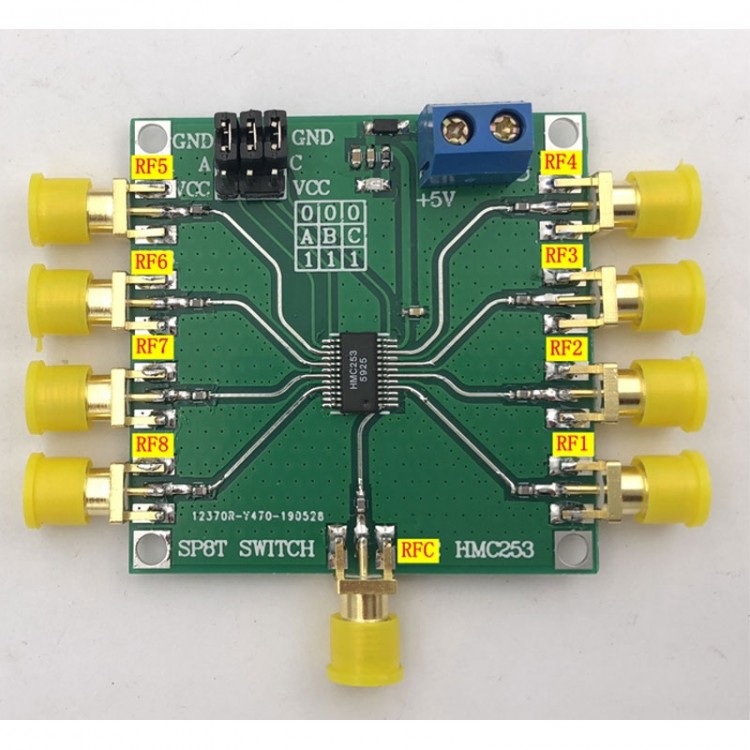

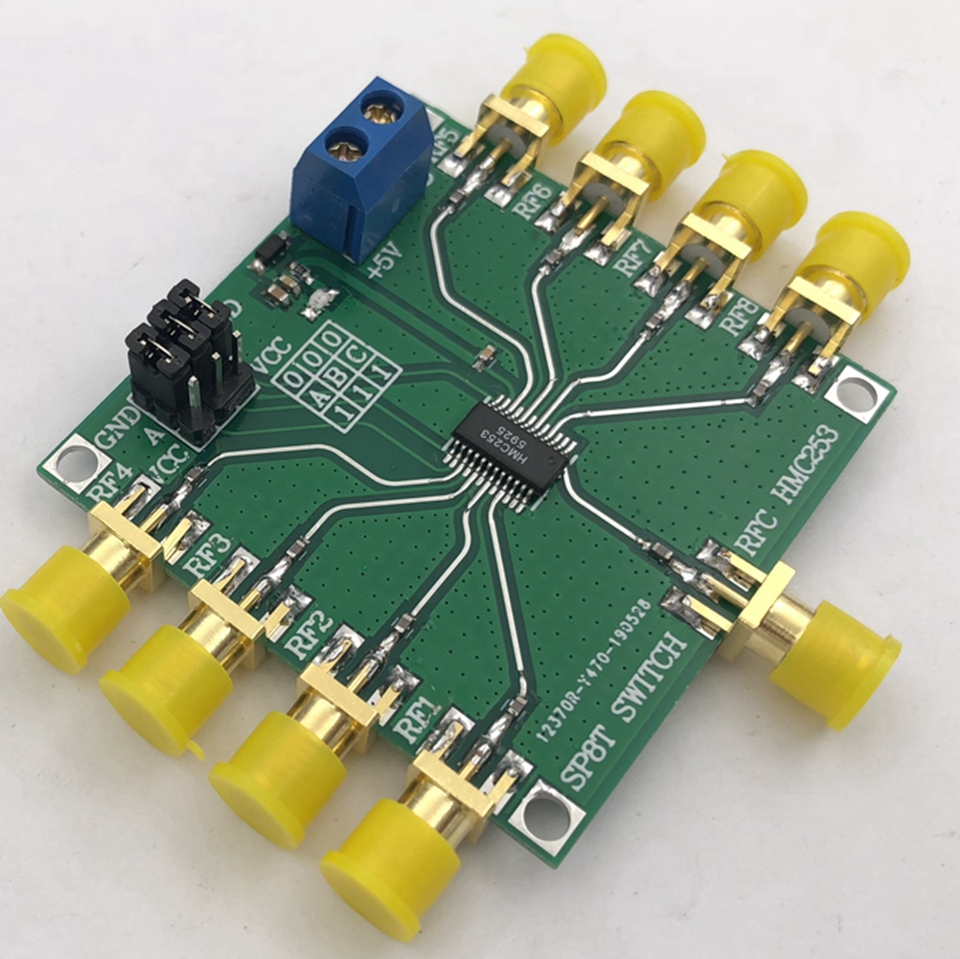

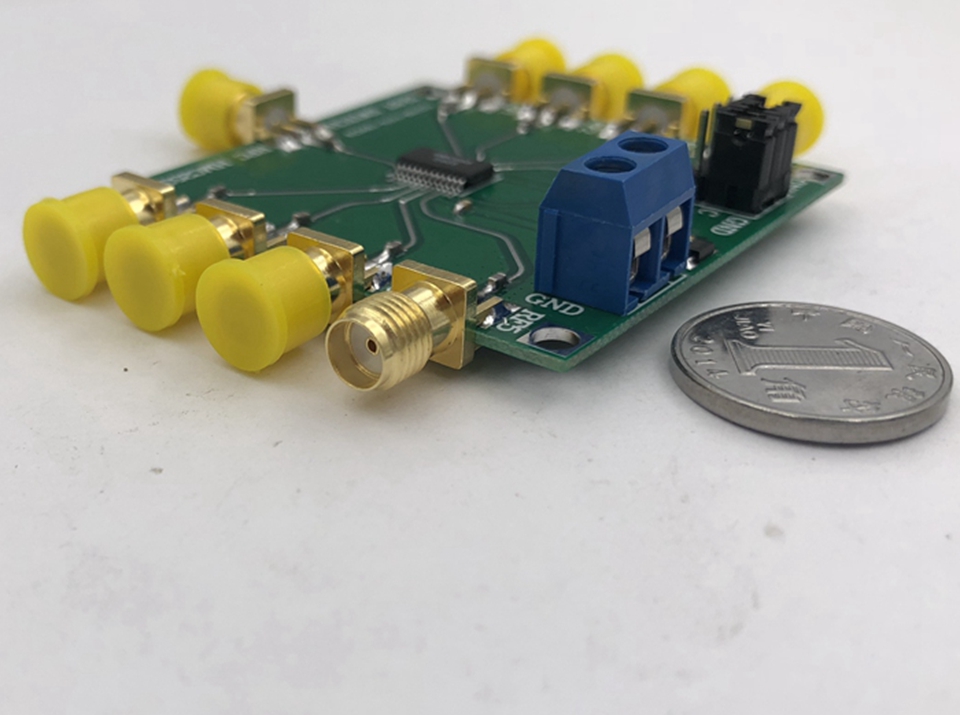

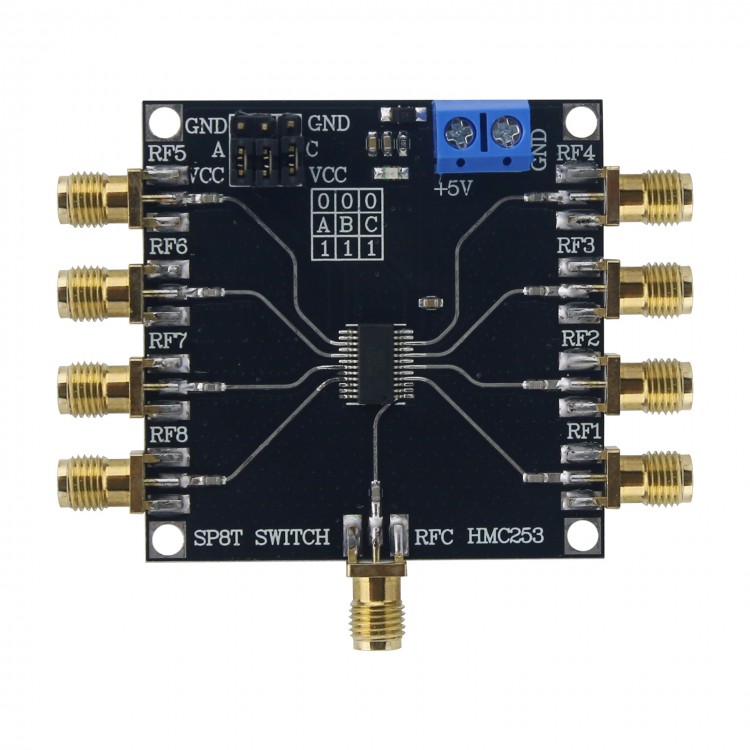

HMC253 DC-2.5GHz RF Single-Pole Eight-Throw Switch GASS MMIC SP8T Non-reflective Switch for CATV/DBS/CDMA/Cellular/PCS
Description:

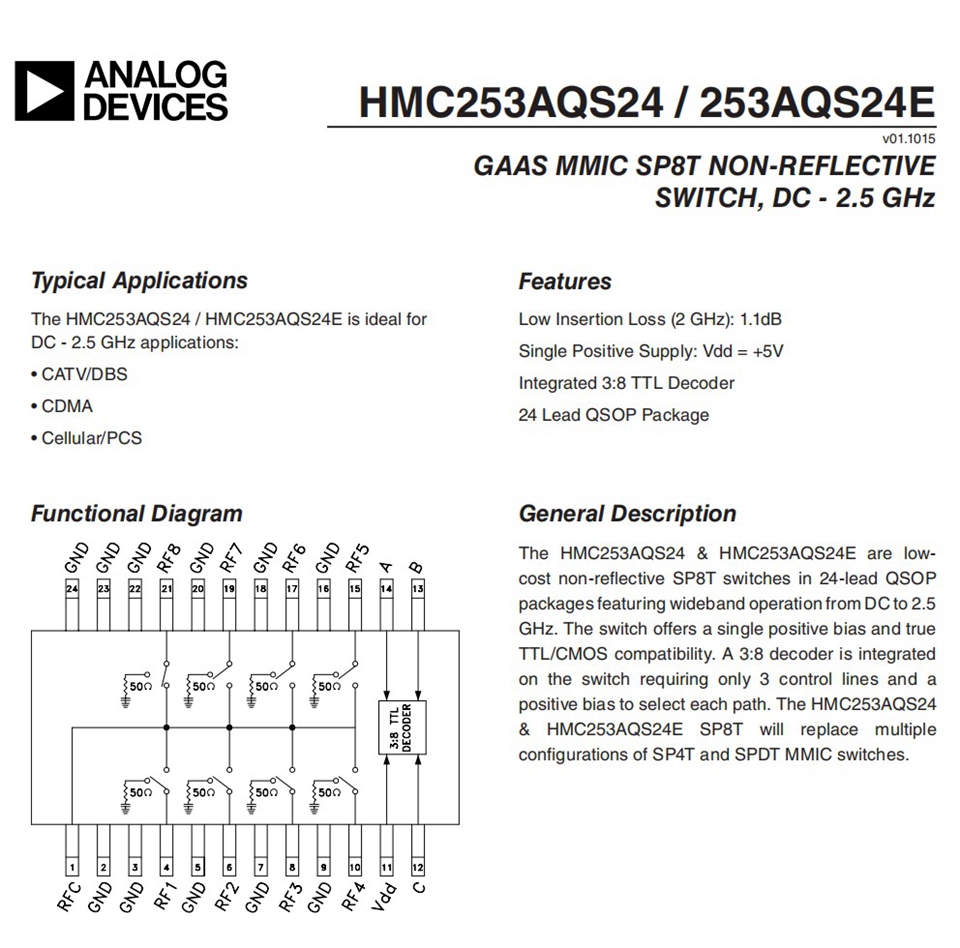

- The HMC253AQS24 & HMC253AQS24E are low-cost non-reflective SP8T switches in 24-lead QSOP packages featuring wideband operation from DC to 2.5GHz. The switch offers a single positive bias and true TTL/CMOS compatibility. A 3:8 decoder is integrated on the switch requiring only 3 control lines and a positive bias to select each path. The HMC253AQS24 & HMC253AQS24E SP8T will replace multiple configurations of SP4T and SPDT MMIC switches.
Features:
- Low insertion loss (2GHz): 1.1dB
- Single positive supply: Vdd = +5V
- Integrated 3:8 TTL decoder
- 24 lead QSOP package
Applications:
- The HMC253AQS24 & HMC253AQS24E is ideal for DC-2.5GHz applications: CATV/DBS, CDMA, Cellular/PCS, etc.
Specification:

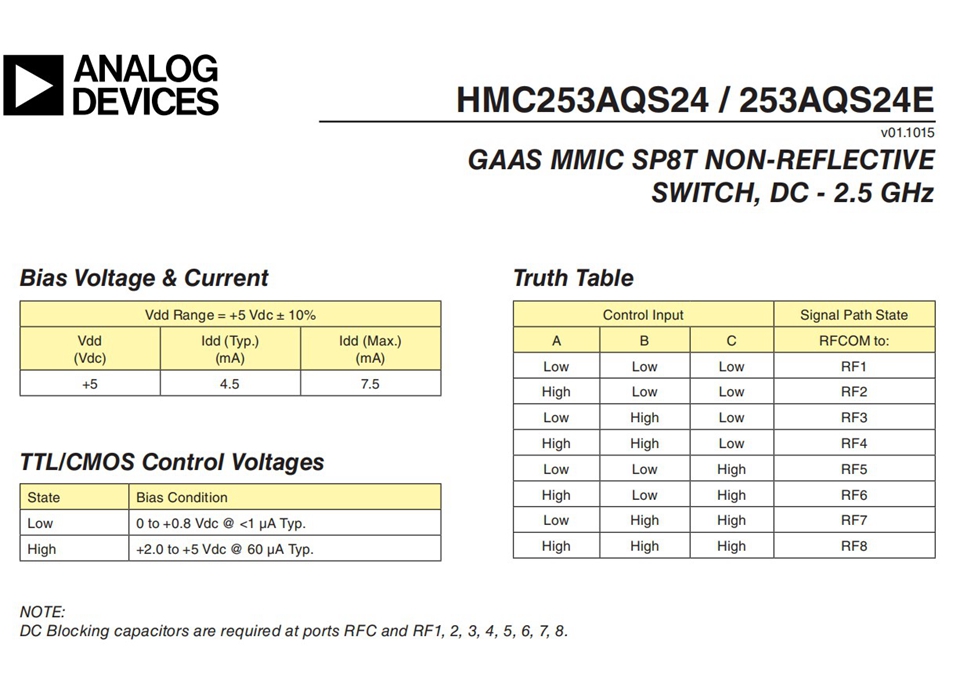

- Power supply voltage: 3V - 5V
- Frequency: DC-2.5GHz
Package Included:
- 1 x RF Switch

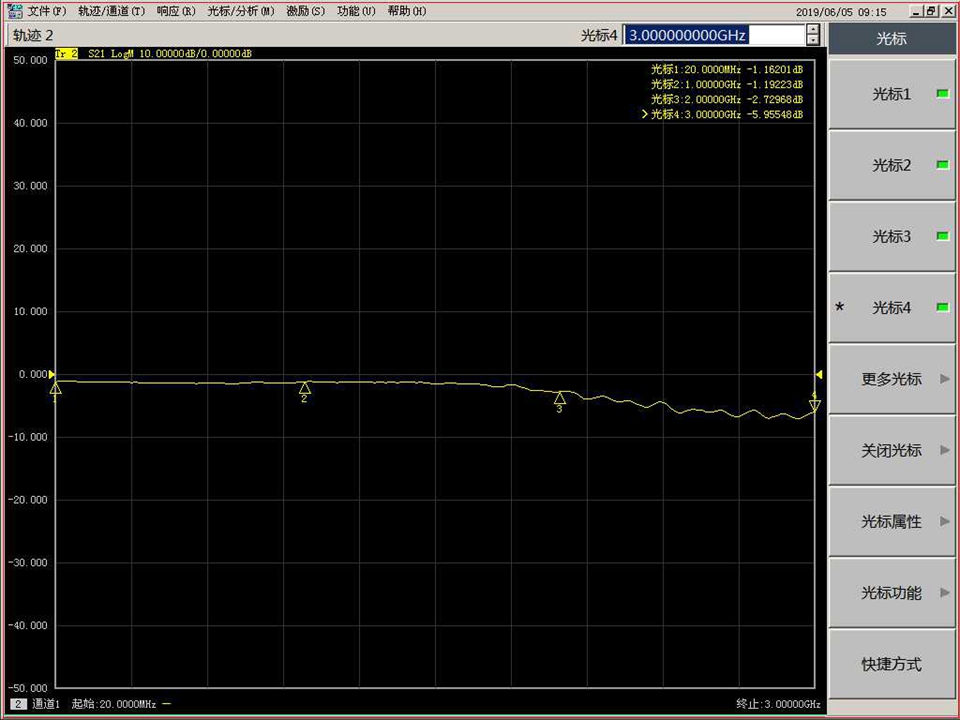

The conduction S21 curve from RFC to RF1 is as follows:

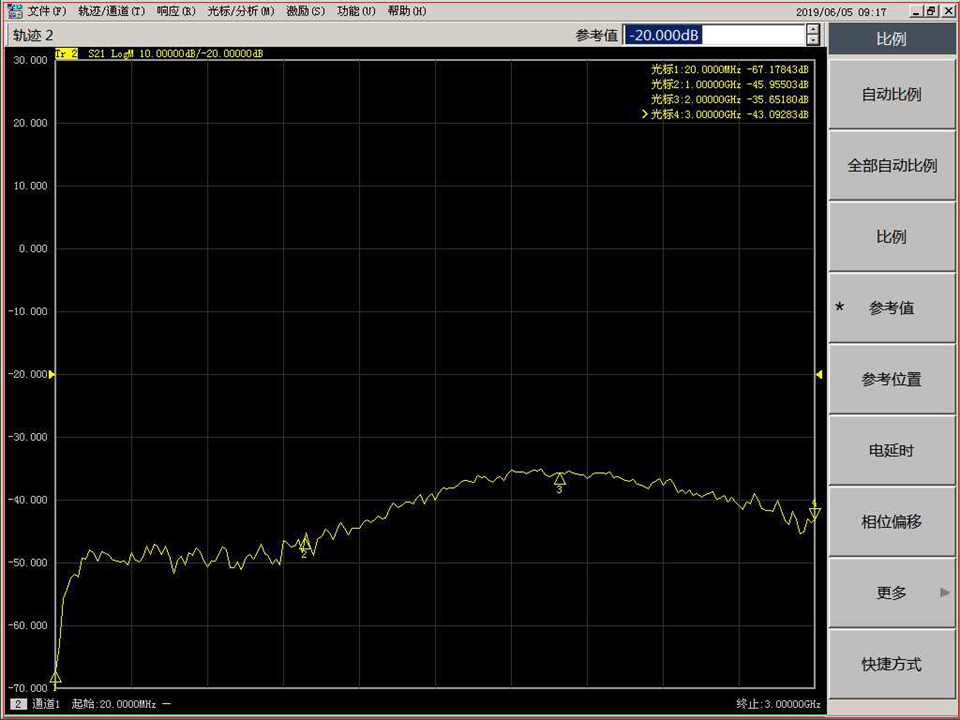

The disconnection S21 curve from RFC to RF1 is as follows:
