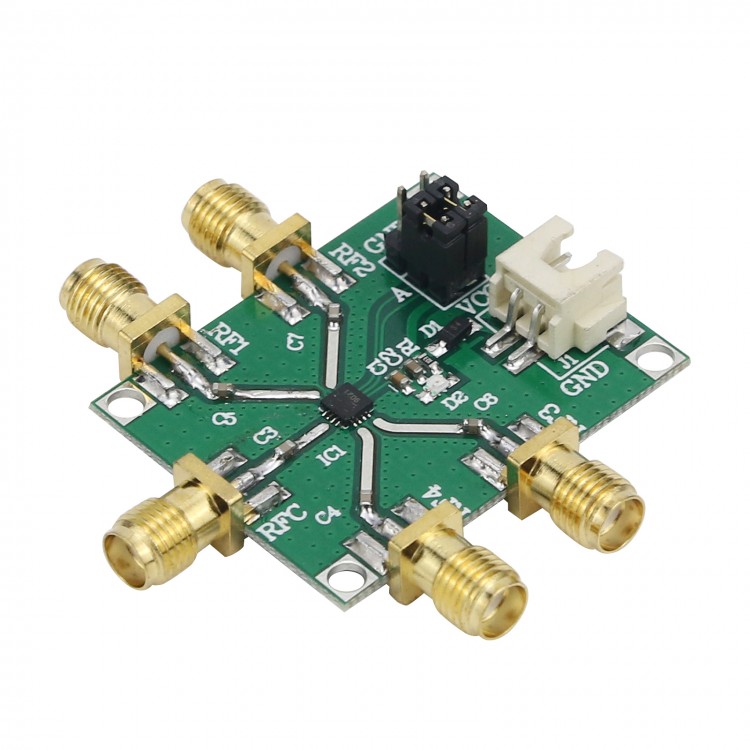

HMC7992 Module Non-reflective Module Board 0.1GHz to 6GHz Single-Pole Four-Throw SP4T Silicon Switch

Availability: In stock, usually dispatched in 1 business day

  • Price:$26.79
  • Price in reward points: 268 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $26.25 $25.72 $24.91 $23.84 Contact US
Quantity:
Buy it now Add cart

You might like

HMC849 RF Switch Module 6GHz Single Pole Double Throw Module Board with Bandwidth High Separation

HMC849 RF Switch Module 6GHz Single Pole Double Throw Module Board with Bandwidth High Separation

$11.58

(0)
HMC241 DC-3.5GHz RF SP4T Switch Module Wave Band Switch RF Single Pole 4 Throw Wireless Switch

HMC241 DC-3.5GHz RF SP4T Switch Module Wave Band Switch RF Single Pole 4 Throw Wireless Switch

$16.63

(0)
HMC8038 RF Switch Module 6GHz Single Pole Double Throw Module Board with Bandwidth High Separation

HMC8038 RF Switch Module 6GHz Single Pole Double Throw Module Board with Bandwidth High Separation

$17.05

(0)
HMC544 RF Switch Module Single Pole Double Throw 10MHz-4GHz Bandwidth Band Switching SMA Interface

HMC544 RF Switch Module Single Pole Double Throw 10MHz-4GHz Bandwidth Band Switching SMA Interface

$11.63

(0)
HMC849L1-6G High Quality Wideband RF Switch 50ohm Single Pole Double Throw Switch with SMA Female Connector

HMC849L1-6G High Quality Wideband RF Switch 50ohm Single Pole Double Throw Switch with SMA Female Connector

$11.61

(0)
HMC8038W1-6G High Quality Wideband RF Switch 50ohm Single Pole Double Throw Switch with SMA Female Connector

HMC8038W1-6G High Quality Wideband RF Switch 50ohm Single Pole Double Throw Switch with SMA Female Connector

$16.00

(0)
QM-SP8T-6S 100MHz-6GHz RF Single Pole Eight Throw Switch Wideband Microwave Switch with SMA Female Connector

QM-SP8T-6S 100MHz-6GHz RF Single Pole Eight Throw Switch Wideband Microwave Switch with SMA Female Connector

$59.29

(0)
HMC8038W 0.1-6GHz Wideband RF Switch Module Single Pole Double Throw Switch High Isolation Microwave Switch

HMC8038W 0.1-6GHz Wideband RF Switch Module Single Pole Double Throw Switch High Isolation Microwave Switch

$17.89

(0)

HMC7992 Module Non-reflective Module Board 0.1GHz to 6GHz Single-Pole Four-Throw SP4T Silicon Switch

Features:
Nonreflective, 50Ω design
High isolation: 45 dB typical at 2 GHz
Low insertion loss: 0.6 dB at 2 GHz
High power handling: 33 dBm through path; 27 dBm terminated path
High linearity: 1 db compression (P1db): 35 dBm typical; Input third-order intercept (IIP3): 58 dBm typical
ESD rating: 2 kV human body model (HBM), Class 2
Single positive supply: 3. 3 V to 5.0 V
Standard TTL-, CMOS-, and 1. 8 V-compatible control
16-lead, 3mm x 3mm LFCSP package (9mm²)
Pin compatible with the HMC241ALP3E

Applications:
Cellular/4G infrastructure
Wireless infrastructure
Automotive telematics
Mobile radios
Test equipment
CATV / DBS

Circuit Description:
1. Power supply voltage: 3V-5V
2. Frequency: 0.1-6GHZ

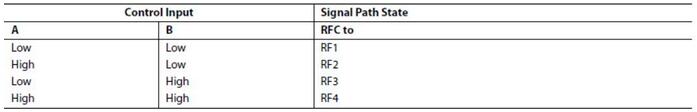

3. Description of control signals:



Package Included:
1 x Module Board
