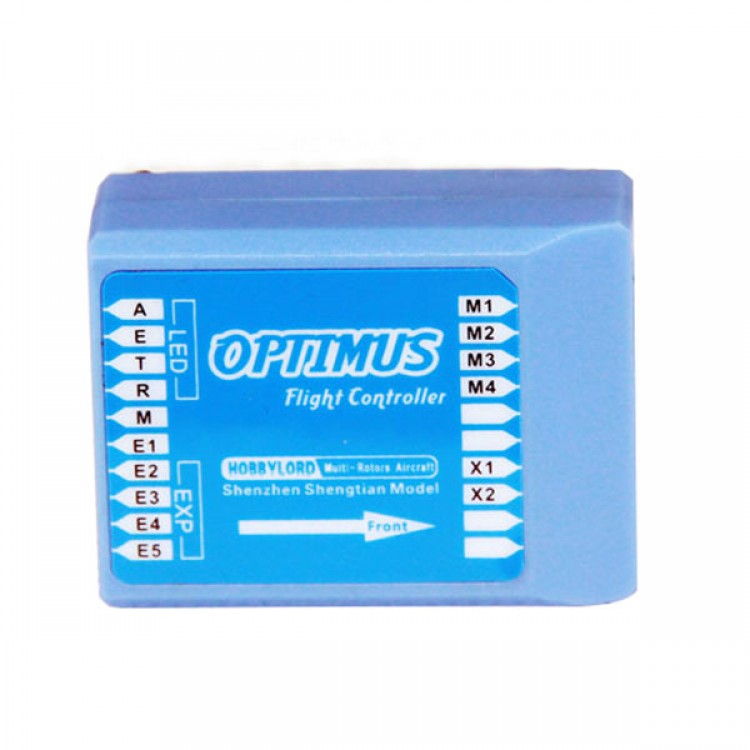

Hobbylord OPTIMUS Flight Controller Economical Version For RC Quadcopter
Specification:
|
QUAD-ROTOR Flight Controller Control Modes |
||
|
|
Atti. Mode |
Manual Mode |
|
Command Stick Meaning |
Maximum rudder angular velocity is 180°/s |
|
|
Multi attitude control; Stick center position for 0˚ attitude, Stickendpoint is 35˚attitude. No height lock . |
Maximum pitch and roll angular velocity is 220°/s, No height lock. |
|
|
Command Linearity |
YES |
|
|
Stick Released |
No position holding, only attitude stabilization |
NOT Recommend |
|
Safety |
Low voltage protection |
Depends on experience. |
|
Maneuverability |
High agility, high stability |
High agility |
Package contents and Function
- Main Controller (MC) ×1
The Main Controller (MC) is the brain of the system. Through it, ESCs are connected to the RC
receiver and other equipments to achieve autopilot function. It has a built-in Inertial Measurement Unit (IMU) containing one 3-axis accelerometer, one 3-axis gyro.
- Versatile Unit (VU) ×1
It includes a LED light which indicates different states of the aircraft and a USB port for configuration.
- USB Cable ×1
This cable is used to configure MC.
- 3-PIN Servo Cable ×7
Cables are used to connect the MC and the receiver.
- 3M Gummed Paper ×6
It is used to fix components on multi-rotor’s frame.
