Hobbywing 2-3s Lipo UBEC-8A 5V/6V 8A/15A BEC Step-Down Voltage for Helicopters and Airplanes

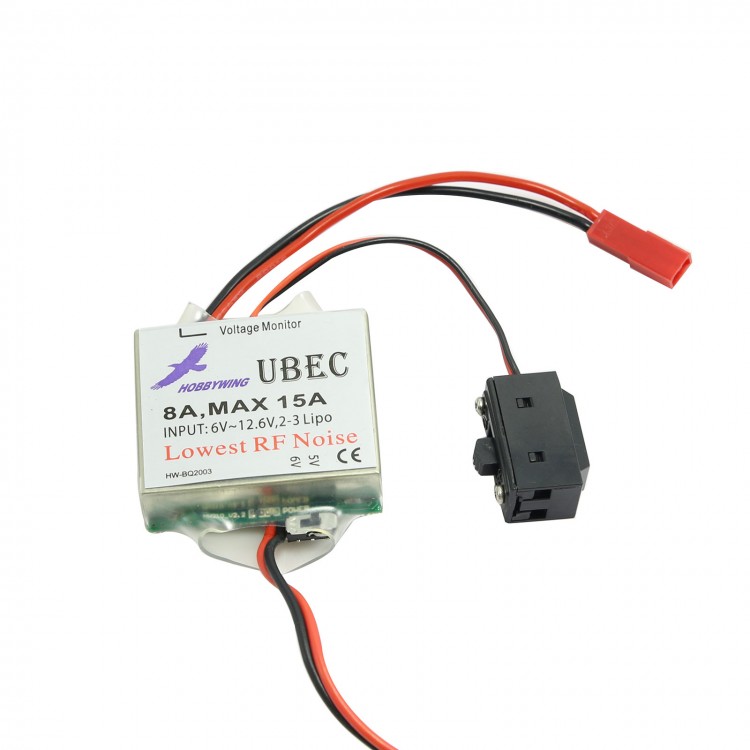

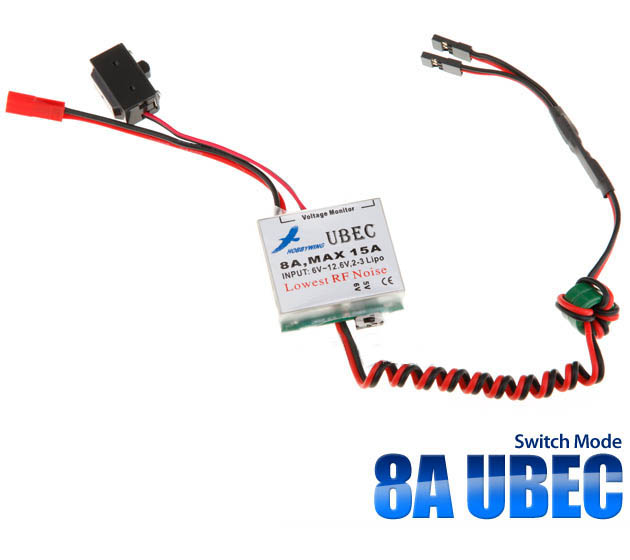

Hobbywing Platinum UBEC-8A
    The 8A-UBEC is a switch-mode DC-DC regulator works with a 2-3S Lipo battery, it outputs a consistent safe voltage for your receiver, gyro and servos.  It is very suitable for large scale RC models with many servos such as nitro powered RC helicopters and airplanes.
Features

1.Uses advanced switch-mode DC-DC regulator IC.
2.The output current is very large to supply all electric equipments.
3.Output short-circuit protection function.
4.A metal shield and a filter significantly reduce the electromagnetic interference.
5.Automatically detects the amount of the Lipo battery pack (2S or 3S).
6.Shows the battery capacity with 4 LEDs.
7.Shows the working status with a LED, it lights when the UBEC works normally.
8.There are 2 output leads to reduce the resistance when connecting the UEBC to the receiver.
9.With a step-down voltage regulator of 0.7V down as an accessory .
(It changes the output from 6.0V to 5.3V for some special equipments that cannot work with 6V inputs).

Specification

Weight: 36g Size: 42mm*39mm*9mm (L*W*H)
Continuous output current: 8 Amps Quiescent current: 60mA
Burst output current: 15 Amps Input: 6V-12.6V (2-3S Lipo battery)
Output Voltage: 5V or 6V (Changeable with a switch )
