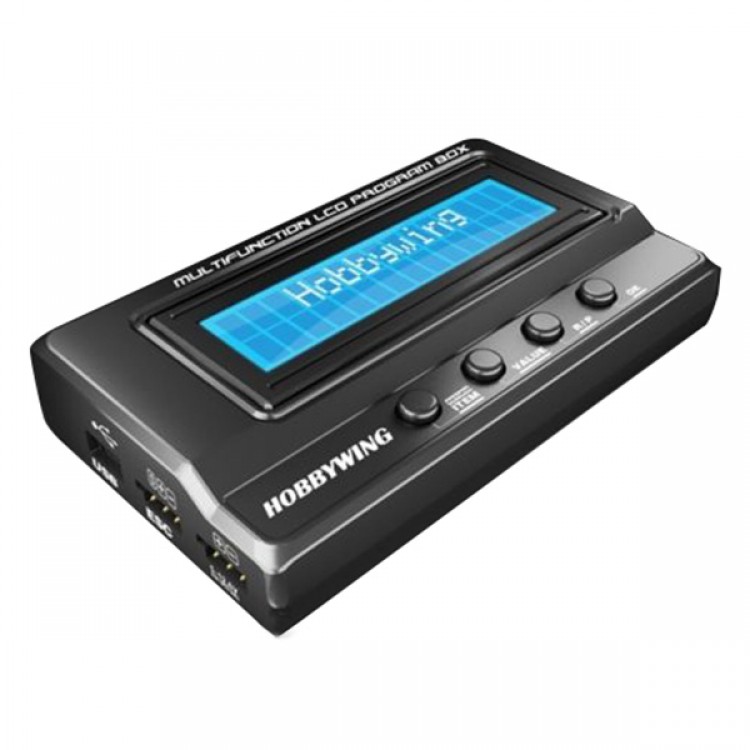

Hobbywing 3 in 1 Multifunction LCD Programer Box Integrated w/USB adaptor Voltmeter

1 Working Modes
1.1 Works as an individual device to set the ESC, the value of each parameter is displayed on the LCD screen.
1.2 Works as an USB adapter to link the ESC with a PC to update the firmware of the ESC or set the ESC by HOBBYWING USB LINK SOFTWARE .
1.3 Works as a Lipo battery voltmeter to measure the voltage of the whole battery pack or each cell.

This Multifunction LCD Program Box is suitable for the following ESC:
PLATINUM series helicopter/aircraft ESC
XERUN & EZRUN series Car ESC (Version 2.0 and 2.1)
XERUN-120A V3 & V3.1 ESC

A) The programmable items for the XERUN and EZRUN series car ESC:
1 Running Mode
2 Drag Brake Force
3 Low Voltage Cut-Off Threshold
4 Start Mode
5 Maximum Brake Force
6 Maximum Reverse Force
7 Initial Brake Force
8 Throttle Neutral Range
9 Timing
10 Over-Heat Protection
11 Motor Rotation
12 Lipo Cells Amount
*Note: Some speed controllers have less programmable items, but some have more. Please read the user manual of your speed controller to get detail information.

B) The programmable items for the PLATINUM series airplane ESC:
1 Brake
2 Battery Type
3 Low Voltage Protection Mode (Cutoff Mode)
4 Low Voltage Protection Threshold (Cutoff Threshold)
5 Start Mode
6 Timing
7 Governor Mode
8 Reserved Item #1
9 PWM Frequency
10 Built-In BEC Output
11 Reserved Item #2
12 Lipo Cells Amount\

Specifications
1 Size: 90mm (L) * 51mm (W) * 17mm (H)
2 Weight: 65g
3 Input Voltage: 4.5-12.6V
(If the ESC hasn’t a built-in BEC, you must use an additional battery pack to supply the program box)
4 Displayer: 16*2 characters LCD.
5 Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug)
