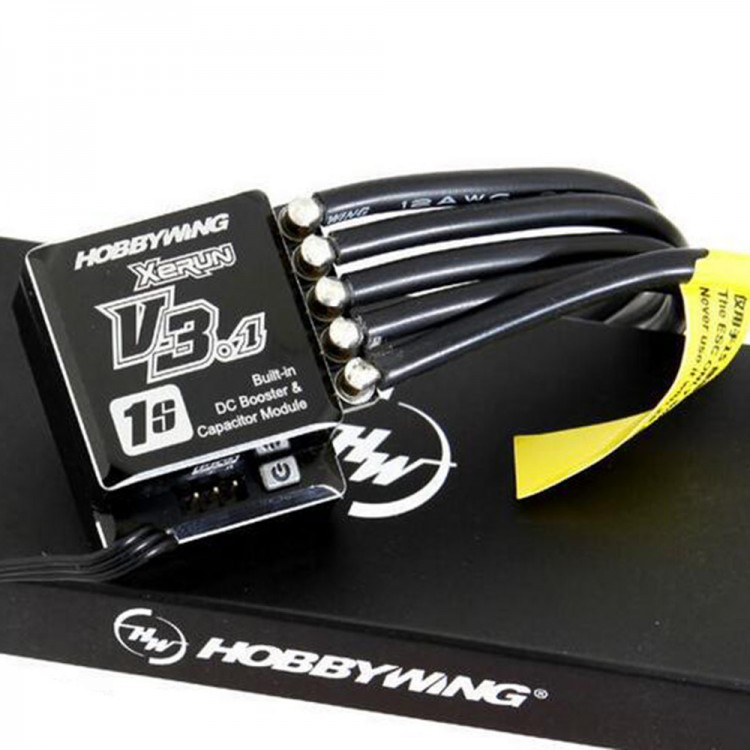

Hobbywing XERUN 120A V3.1 1S Sersored Bushless ESC Electronic Speed Controller for Racing Car

Availability: In stock, usually dispatched in 1 business day

  • Price:$170.54
  • Price in reward points: 1705 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $167.13 $163.72 $158.60 $151.78 Contact US
Quantity:

Hobbywing XERUN 120A V3.1 1S Sersored Bushless ESC Electronic Speed Controller for Racing Car

Feature:

- Specially designed for 1/12 scale on-road competition. The eletronic switch, capacitor module and DC-DC booster are all built-in, save space on chassis.
- Same Factory Pre-set Profiles as XERUN-120A-V3.1 (2-3S version). Up to ten profiles can be stored in the memory and imported or exported easily. Factory pre-set profiles include: Blinky mode, Modify Mode, Stock mode, Practice mode, etc.
- Aluminum Upper and Bottom Case, giving better heat dissipation, and allowing higher current.
- External Programming Port (EPP), easy to connect and also a power port for external cooling fan.
- Advanced Dynamic Timing technology, providing more customization possibilities for highest level competitions.
- Precise throttle and brake control, setting of drag brake and brake strength with more options, new punch and brake rate control functions, and throttle and brake curves through the PC client.
- Integrated Data logger, recording the maximum temperature of ESC and motor as well as the maximum RPM, using LCD Programming box to check easily in the pits.
- Multi Protection Functions, making your running safe with ESC and Motor overheat protection, low voltage cutoff and throttle signal loss protection.
- Easily programmed with the Multifunction LCD Program Box and USB Link Software
- New USB LINK Software graphic interface, providing extra parameters for advanced settings.
- ESC firmware can be updated through the USB adapter in the LCD Program Box.

Specification:
- Hobbywing XERUN 120A V3.1 1S Sersored Bushless ESC/ Electronic Speed Controller
- Current: Continuous: 120A, Peak: 830A
- Input: 3-4 cells NiMH/NiCd or 1S LiPo (Warning: 2S Lipo is not allowed)
- Built-in BEC: 6V@3A switch mode BEC with built-in DC-DC booster
- Resistance: 0.00026 Ohm
- Motor Supported: Sensored and sensorless brushless motor
- Motor Limit: >=3.0T (For 3 slots, 2poles 540 size motor, and the ESC has zero timing)
- For Car: 1/10, 1/12 scale onroad competition
- Cooling Fan: Not Available
- External Programming Port Output: 6V from built-in BEC (The 6V output is usable for external cooling fan)
- Size: 37.5mm(L) x 31mm(W) x 21.8mm(H)
- Weight: 47.2g,excludes wires

Package List:
- 1 x HOBBYWING XERUN XR10 PRO 160A Brushless ESC
