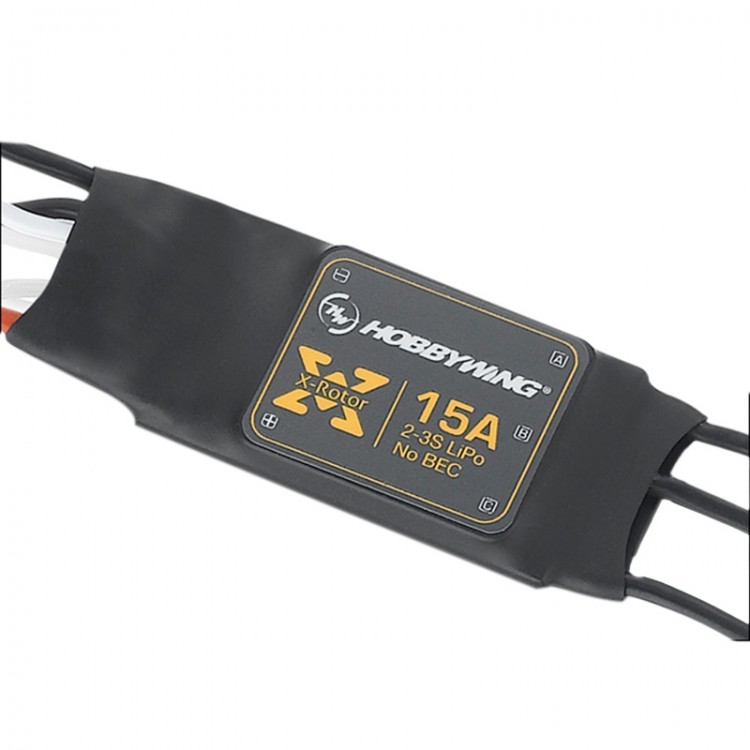

Hobbywing XRotor 15A Brushless ESC Motor Speed Controller Driving Efficiency Optimization Technology for RC Multicopter

Hobbywing XRotor 15A Brushless ESC Motor Speed Controller Driving Efficiency Optimization Technology for RC Multicopter

Features:
- Special core program for multi-rotor controllers meets various functional requirements against multi-rotors.
- Specially optimized software for excellent compatibility with disc-type motors.
- DEO (Driving Efficiency Optimization) technology significantly reduces the ESC temperature,improves the throttle response, and strengthens the stability and flexibility of multi-rotors. This ESC is quite suitable for QAVs. (The motors slow down rapidly, especially when reducing the throttle amount.)
- Compatible with “Regular” signal-receiving mode (that is the ESC can receive regular throttle signals range from 1100μs to1940μs) and “One Shot” signal-receiving mode (that is the ESC can receive fixed throttle signals range from 125μs to250μs).
- The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
- In “Regular” signal-receiving mode, the ESC is compatible with various flight-controllers and supports a signal frequency of up to 500Hz.

Specification:
- Constant current: 15A
- Peak current (10s): 20A
- BEC: No
- Lipo: 2-3S
- Programmable item: Timing (Medium/High)
- Weight: 10.5g
- Size: 47*17*8.3mm
- Typical application: 250/300 Class multi-rotors

Package included:
- 1 x Hobbywing XRotor 15A Brushless ESC Motor Speed Controller for RC Multicopter
