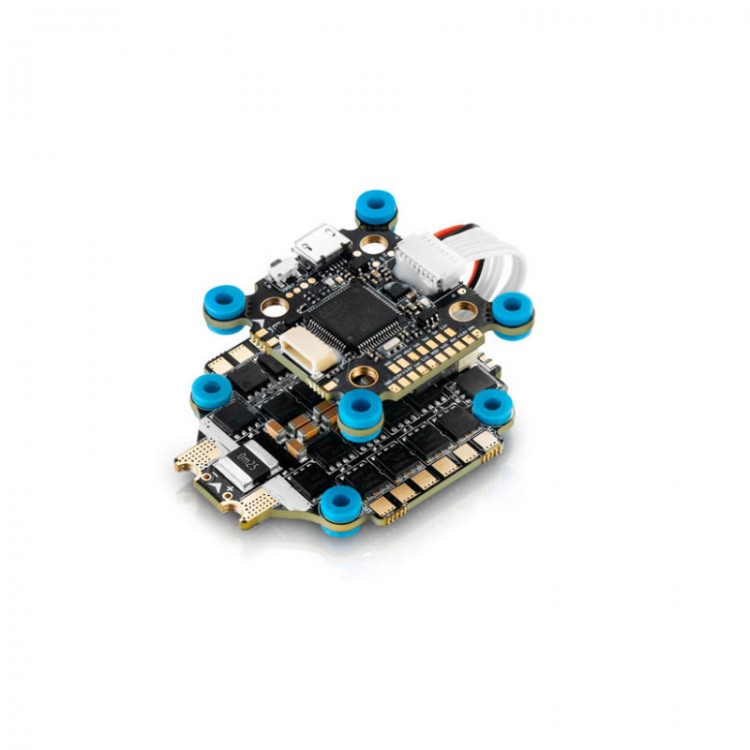

Hobbywing XRotor Micro 60A 4IN1 ESC & FC F7 Flight Controller Combo Suitable For 130-300MM FPVs

Hobbywing XRotor Micro 60A 4IN1 ESC & FC F7 Flight Controller Combo Suitable For 130-300MM FPVs

Introduction:
- Product Number: 38040304
- ESC: XRotor Micro 60A 4in1 BLHeli-32 DShot1200
- FC: XRotor Flight Controller F7
- Applications: 130-300mm FPVs

Package Included:
- 1 x Set of ESC & Flight Controller

XRotor Micro 60A 4in1 BLHeli-32 DShot1200:
Overview:
Highly Integrated
With a similar size of a FC, the 4IN1 ESC includes 4 high performance 60A BLHeli_32DShot1200ESCs, a 5V BEC which can provide power for devices (i.e. FC), and a voltmeter which allows FC to monitor the amp & volt in real time. Two ways for connecting the ESC to a FC: 1) Connecting via soft cables. 2) Soldering via solder tabs are provided for selection. And the shock-absorbing design of mounting holes effectively reduces the external vibration's impact on high-sensitivity components and provides great shock-absorbing protection to upper devices (i.e. FC) . This ESC is designed for FPV racing.

High Quality Hardware
3-Large-size MOSFETs imported from Japan make the 4IN1 ESC have greater voltage/current endurance than the last generation (at high voltages). The use of high performance 32-bit microprocessors with operating frequency of upto48MHz, imported high quality ceramic capacitors, 3-ounce copper, 6 layers of PCBs guarantees less heat, higher efficiency and rapid response. Imported Top Quality MOSFETs, Imported High Quality Ceramic Capacitors, High-performance 32-bit Microprocessor, 3-in-1 Drive ICs.

BLHeli-32 Firmware Ready
The ESC flashed with the 3rd-generation BLHeli-32 firmware has great performance & rich functions and supports adjusting parameters or upgrading firmware via different ways (.e. via throttle signal wire with using other development board or a FC flashed with the firmware for Cleanfight/Betaflight).

DShot1200 Ready!
Besides the regular PWM mode, Oneshot125/Oneshot42/Multishot modes, DShot150/300/600 modes, the latest DShot1200 mode is also supported. In DShot1200 mode, the ESC has great anti-interference performance and rapid response.

Hardware Generated PWM & Damped Light Mode
The ESC firmware uses hardware generated motor pwm for smooth throttle response and silent operation. Damped light does regenerative breaking, causing very fast motor retardation, and it inherently also does active freewheeling.

Specifications:
- Product Name: XRotor Micro 60A 4in1 BLHeli_32 DShot1200
- Product Number: 30902063
- Cont./Peak Current: 60Ax4/80Ax4
- Input Voltage: 3-6S Lipo
- BEC output: 5V & 0.6A
- Wires & Connectors:
- Input Wires: Red-12AWG-130mm/Black-12AWG-130mm
- Output Wires: No wires but solder tabs
- Input Connectors: XT60 (w/Wires Soldered on)
- Output Connectors: No (Note: All the wire length above is the original length not the length you see from the outside.)
- Firmware: Hobbywing_XRotor_BLHeli-32 Firmware
- ESC Programming: BLHeliSuite32
- Stick Programming: Supported
- DEO: Supported
- Throttle Range Calibration: Supported
- Oneshot125 Mode: Supported
- Oneshot42 Mode: Supported
- MultiShot Mode: Supported
- DShot150/300/600/1200: Supported
- Timing: Supported
- Motor Rotation: Supported
- Size: 52x42x6.6mm
- Weight: 15g

XRotor Flight Controller F7:
Overview:
Super hardware and running speed
Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor. It can perfectly support bidirectional DShot digital throttle communication. The integrated OSD chip can adjust and set each OSD parameters in FC parameter adjustment software and radio, which is simple and convenient. On-board large capacity flash memory chip can record and store more flight logs, which is convenient for users to debug aircraft based on flight data.

Special interface for DJI image transmission system
With image transmission system port for DJl, equipped with corresponding flat cable (FC has been equipped), can avoid welding, realize plug and play.

On-board 5V & 12Vdual BEC circuit
FMU integrates with 12V BEC circuit. It can supply super power output for image transmission and 12V LED devices.

On-board Pit Switch module
FC integrated Pit Switch module can open or close VTx by radio after being adjusted on FC parameter software. Easy and convenient.

Perfectly support firmware of various FPV
It support the firmware for BetaFlight, Cleanflight, Butterlight, inva and other mainstream FPV, and can use corresponding parameter adjustment software to adjust various parameters, making the FC more suitable for various FPV flight and race.

Unique installation design and shock absorption structure
The double hole distance mounting hole design (30*30MM & 20*20MM) can adapt to different frames. The unique flexible flat cable connection mode (The effect is better with hobbywing tower 4in1 ESC), and the shock absorption mechanism of instillation hole, can effectively reduce the impact of external vibration on FC high-sensitivity components, and make the flight more stable and accurate.

Perfectly match with Hobbywing
Match with Hobbywing tower 4in1 ESC, easy to install and wire. The appearance is more beautiful.

Specifications:
- Product Name: XRotor Flight Controller F7
- Product Number: 31003002

Basic Features:
- Compatible with (Multirotors): Quadcopters
- Firmware: HOBBYWING_XROTORF7CONV
- FC Programming: Supported
- Programming via: For Betaflight/Cleanflight-configurator
- Compatible with (Modes): PWM, Oneshot 125, Oneshot 42, Multishot, Dshot150, Dshot300, Dshot600, PROSHOT1000
- Compatible with (Transmitters): For PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
- OSD: Built-in
- Voltage Monitoring: Supported
- Current Monitoring: Supported
- External Buzzer: Supported
- LED Control: Supported
- BEC: 5V at 1.5A; 10V at 1.5A
- USB Port: Micro USB

Size & Weight:
- Size: 32x32mm
- Weight: 3.3g
