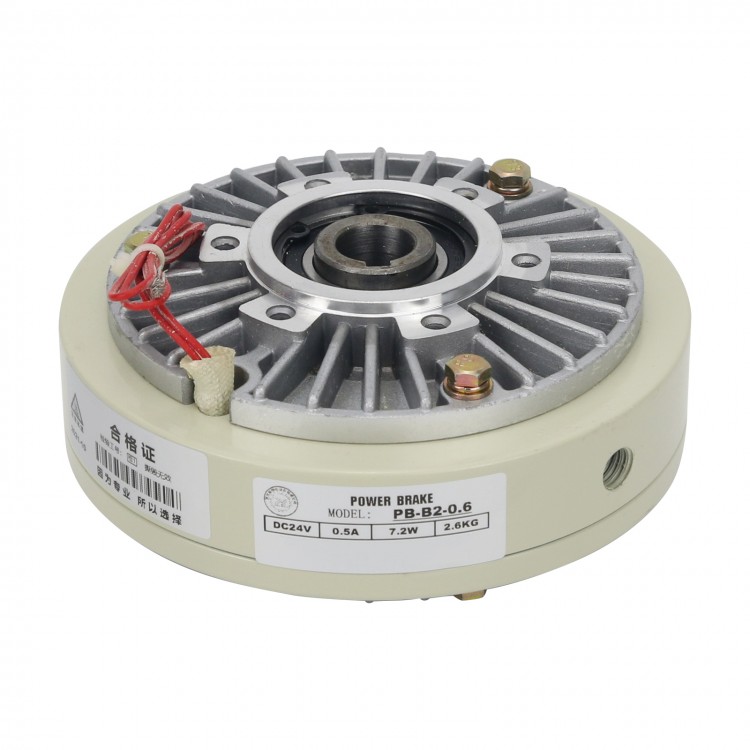

Hollow Shaft Magnetic Powder Brake 6Nm 1400RPM for Tension Control Printing Dyeing Machine PB-B2-0.6 (6NM)
Specification:
Torque: 6
Voltage: 24V
Rotation speed: 1400
Maximum current: 0.8A
Dimensions:
D1: 130
D2: 62
D3: 52
L1: 3
L2: 57
L3: 60
d: 16
t: 5
6-S: M4
Net weight: 2.5kg
Features:
-Fast Response Speed: Using high-quality heat-resistant magnetic powder, with low temperature rise, stable output torque, fast response speed, and high frequency operation.
-Superior Performance: Using high temperature resistant coils and high-quality bearings, smooth operation, low vibration, low noise, and no pollution.
-Overload Protection: With overload protection, it will automatically slide differentially in the case of torque overload, and play the role of overload protection.
-Wide Application: Suitable for printing factory, wire factory, woodworking machinery, wire machinery, paper mill, bag making factory.
Working Principle:
The magnetic powder brake is mainly composed of a brake frame, a brake part and a control device. Some brakes are also equipped with an automatic adjustment device for the gap of the brake part. In order to reduce the braking torque and structural size, the brake is usually installed on the high-speed shaft of the equipment. Brakes are used to stop and decelerate mechanical moving parts and mechanical parts.
Package List:
1 x Magnetic Powder Brake
