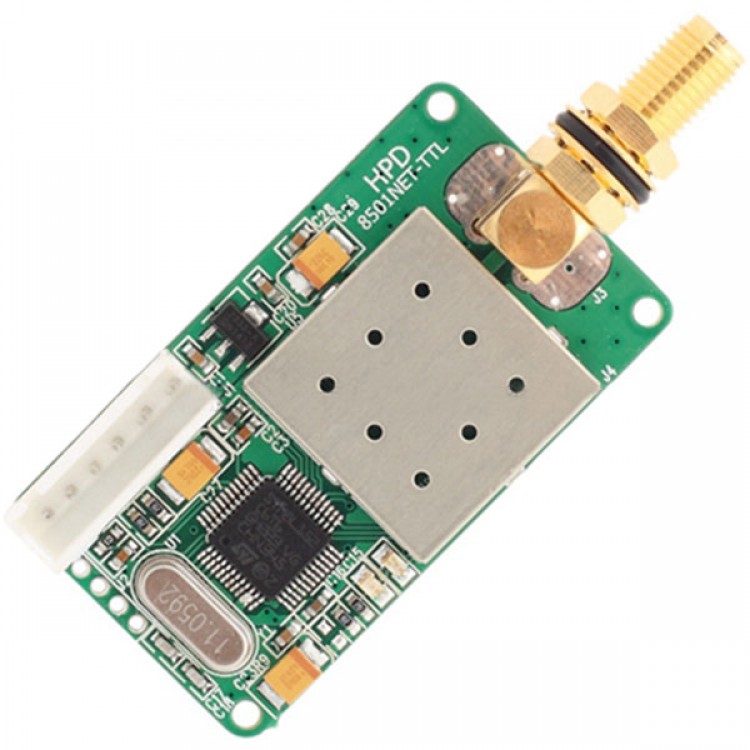

HPD8501NET-TTL-433 |100mW| Wireless Data Transmission Module Spread Spectrum Communication Serial Port Transparent Transmission S1276 1278
Description:
- Using SX1276/ 1278 radio frequency chip and ST semiconductor singlechip design, industrial level
- Wireless communication part adopts DSSS spread spectrum technology, bettery anti-inteference performance
- Module can connect PC or MCU, it can both set module parameters
- The data is complete transparent transmission
- 32 communication channel, multi types of working frequency band,m TTL level interface
- Can transmitting data point to point, or one point to points
- Max visual communication distance can reach 5000M
- Small size, easy to be fixed
Parameters:
Working voltage: 2.4 ~ 5.5V
Working current: receiving 16mA, dormant 1uA, launch 120mA@20dBm
Transmitting power: 2 ~ 20dBm (100mW)
Reception sensitivity: -139dBm
Working frequency: 147M/169M/434M/470M/868M/915M
Channel allocation: each band 16 optional channel
Communication mode: node communication, radio communication mode
Serial rate: 1.2k~115.2kbps
Interface standard: Standard UART protocol, support 8N1, 8E1, 801
Package size: 47mm*26mm
Technology: FCC, ETSI, RoHS certification
